Suitable for EXPERTCUT 106 PER




SUCKER WASHER
4CB01509
4CB01509
D 42 / 15 X 1 MM

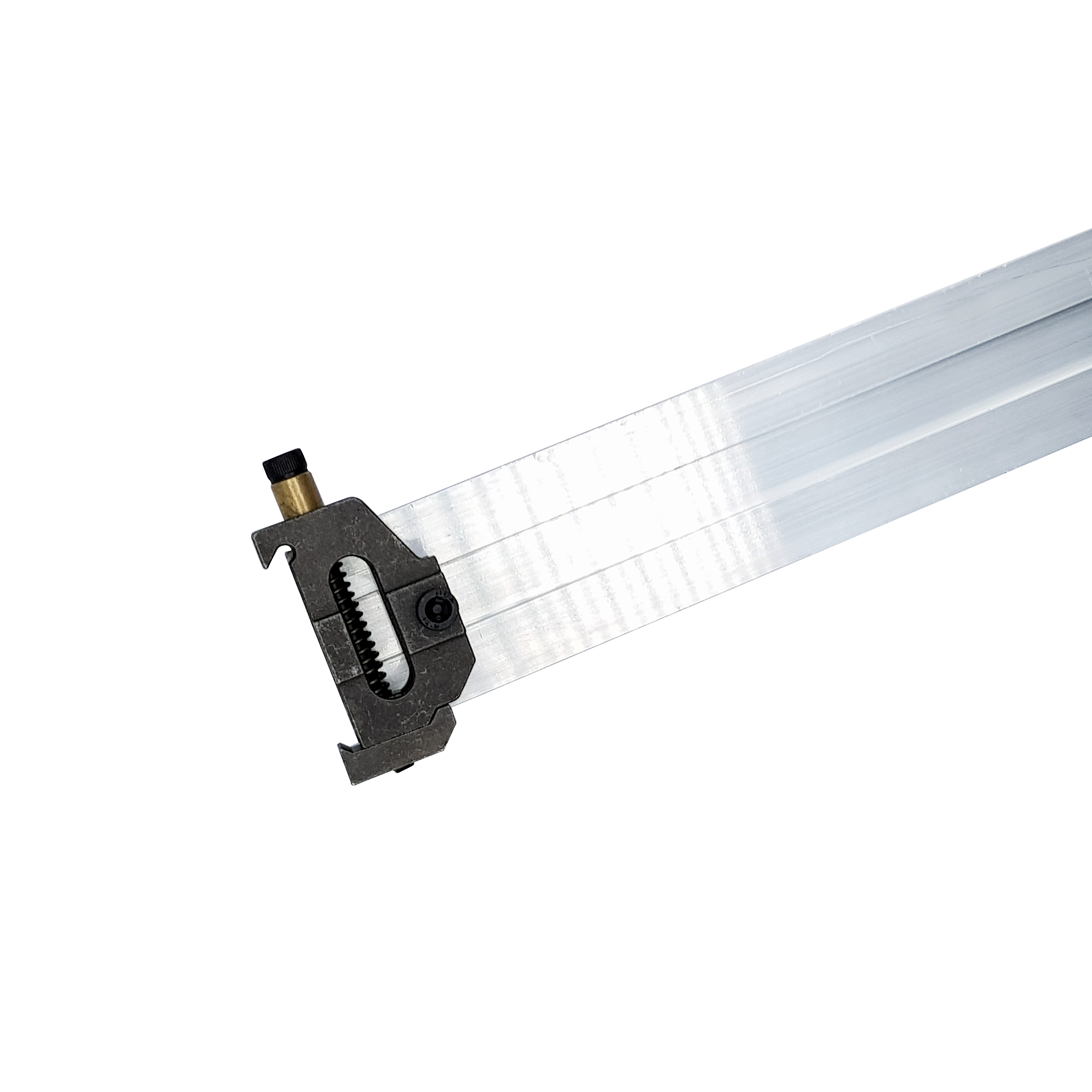

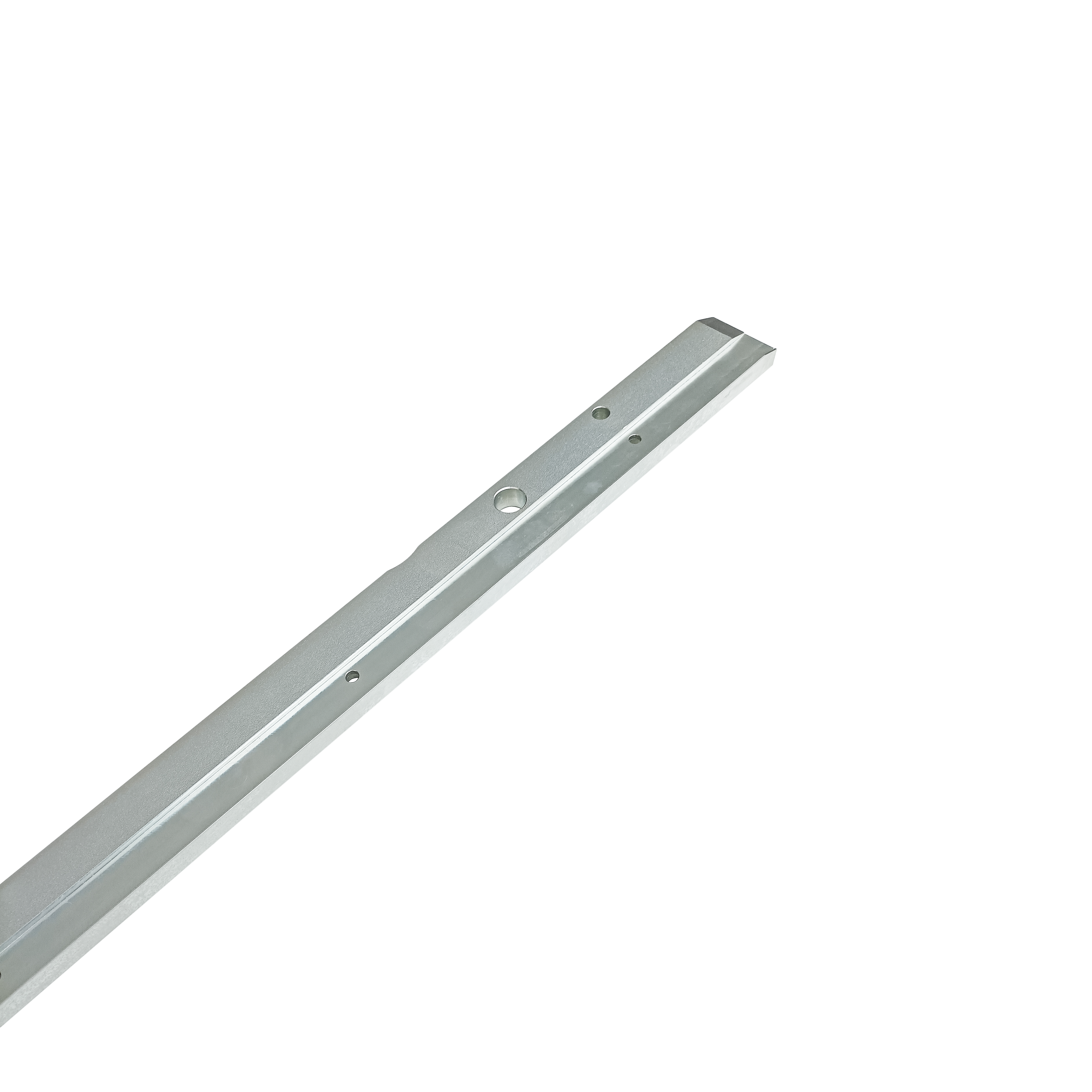

FIXING BAR 725 MM
4CB02618
4CB02618
FIXING BAR 1110 MM
4CB02626
4CB02626
TELESCOPIC BAR 292 - 421 MM
4CB02632
4CB02632
TELESCOPIC BAR 447 - 731MM
4CB02634
4CB02634
TELESCOPIC BAR 588 - 913MM
4CB02635
4CB02635

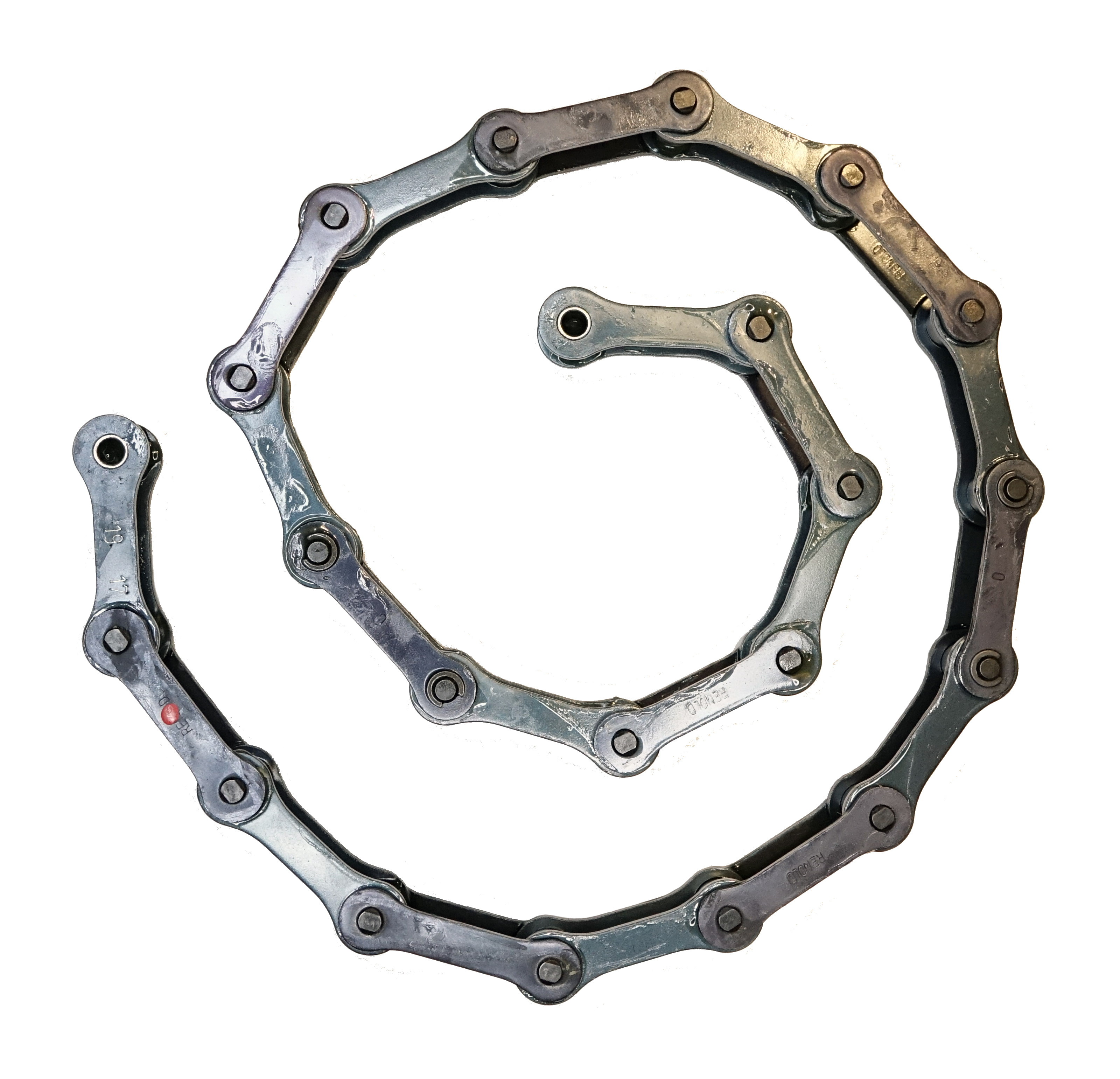

CHAIN SET GRIPPER BAR (16PCS)
4CB02678
4CB02678
We recommend replacing the chain pins (32x 4CB03119) when replacing the chain set
GRIPPER, STATIONARY
4CB02779
4CB02779

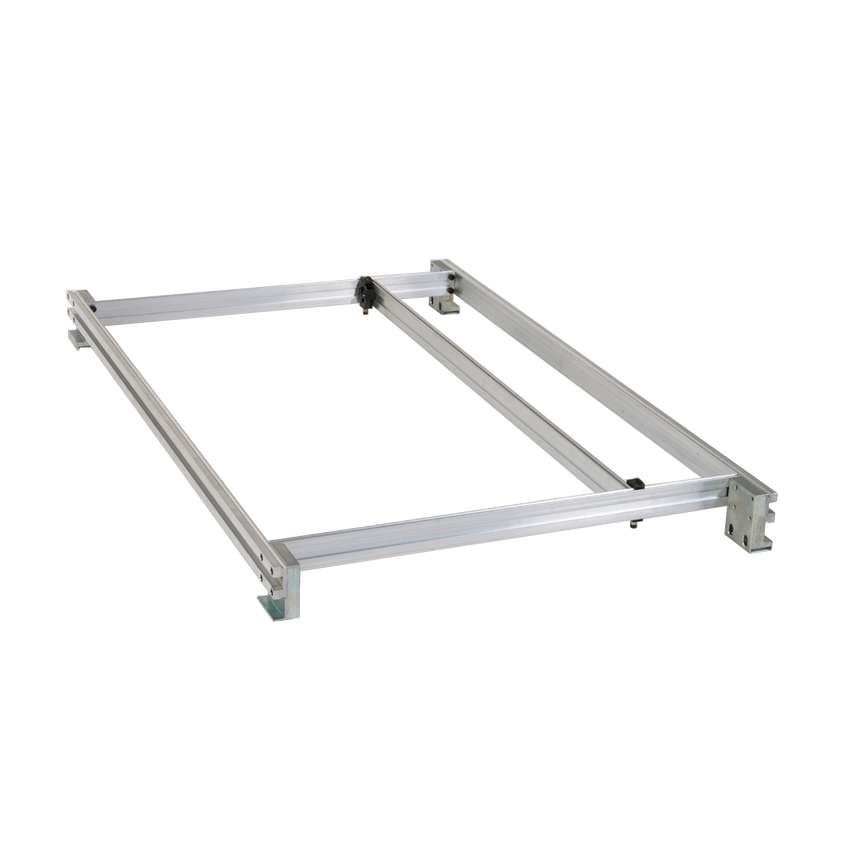

UPPER BLANKING FRAME
4CB02834
4CB02834
LOWER STRIPPING FRAME
4CB02838
4CB02838
STRIPPING PIN D15/4MM (20X)
4CB02855
4CB02855
Aluminium alternative is 4CB07482
STRIPPING PIN D 11 / 4 MM
4CB02857
4CB02857
Aluminium alternative is 4CB07483
PIN HOLDER 5 HOLES (10X)
4CB02870
4CB02870
PIN HOLDER 3 HOLES (10X)
4CB02871
4CB02871
CROSS PIN
4CB03109
4CB03109

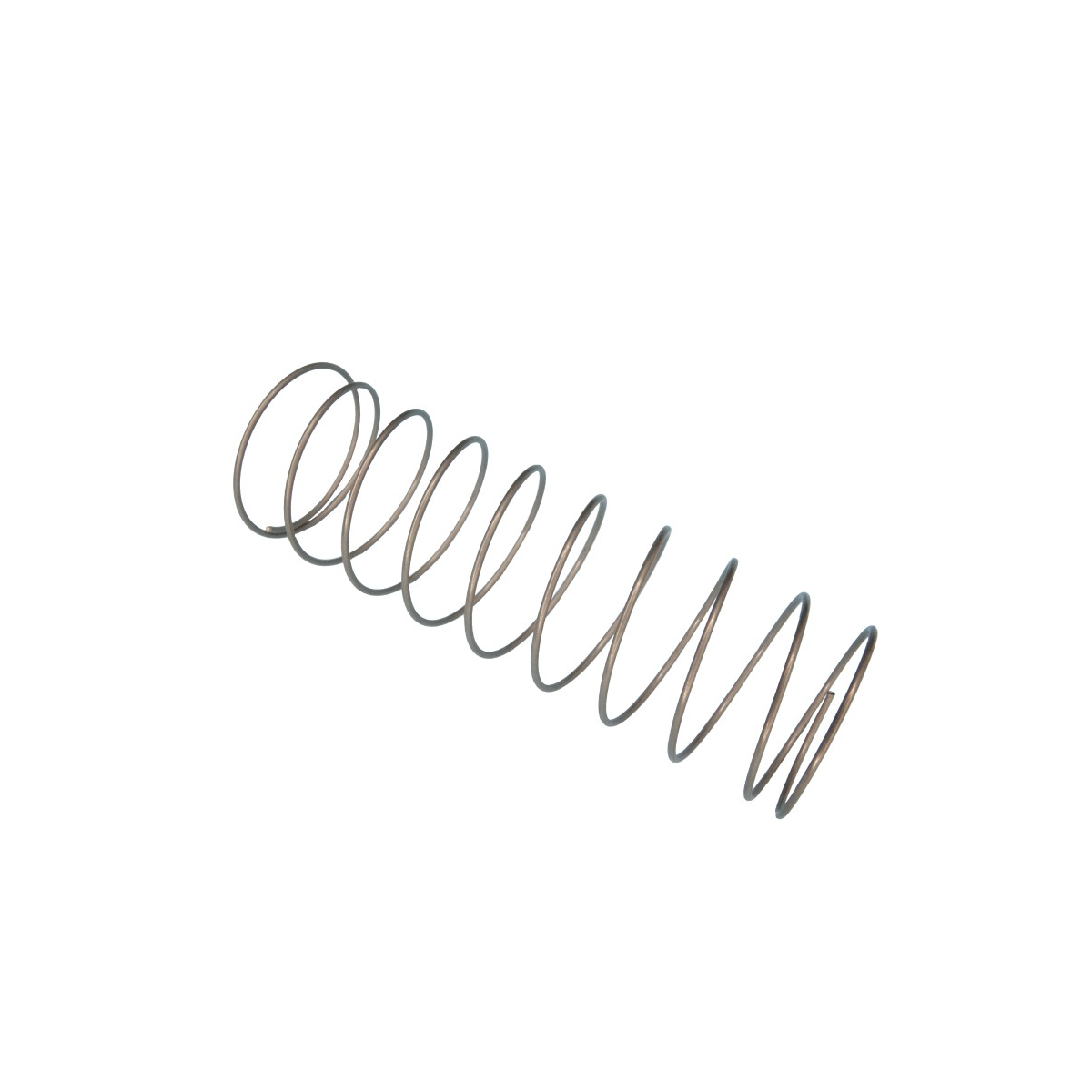

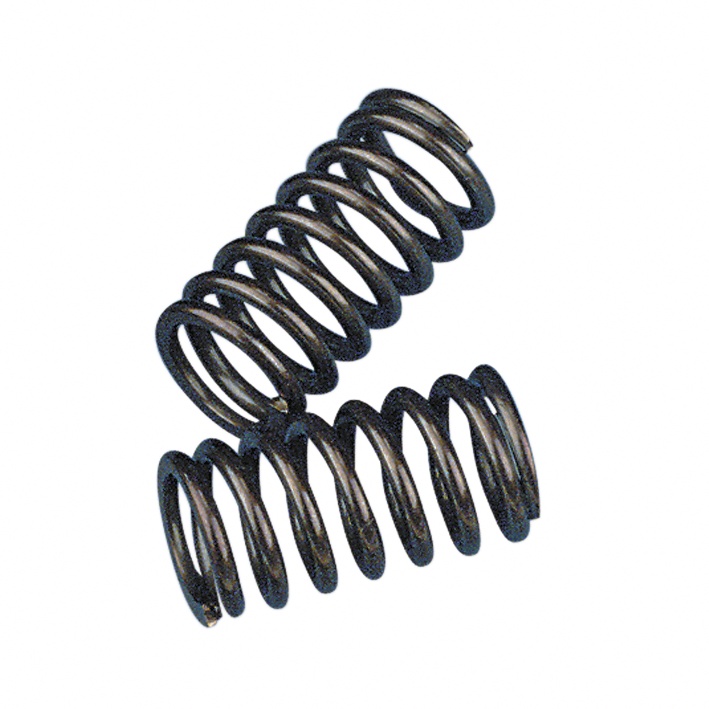

COMPRESSION SPRING
4CB03110
4CB03110
D=1. 9 DM= 15 L= 17 MM

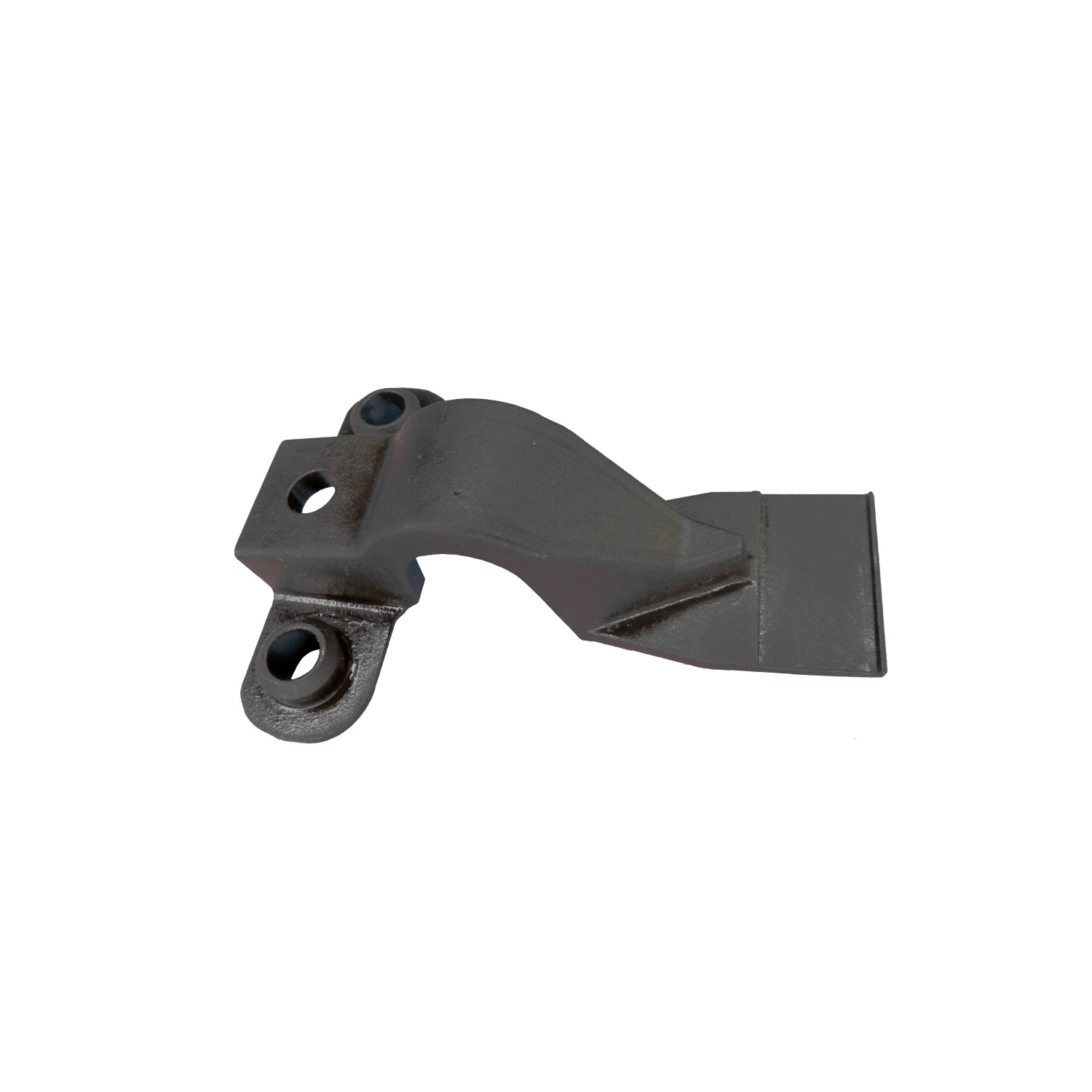

GRIPPER, MOVABLE
4CB03115
4CB03115
BUSHING
4CB03118
4CB03118
15. 1 / 17. 1 X 39 MM

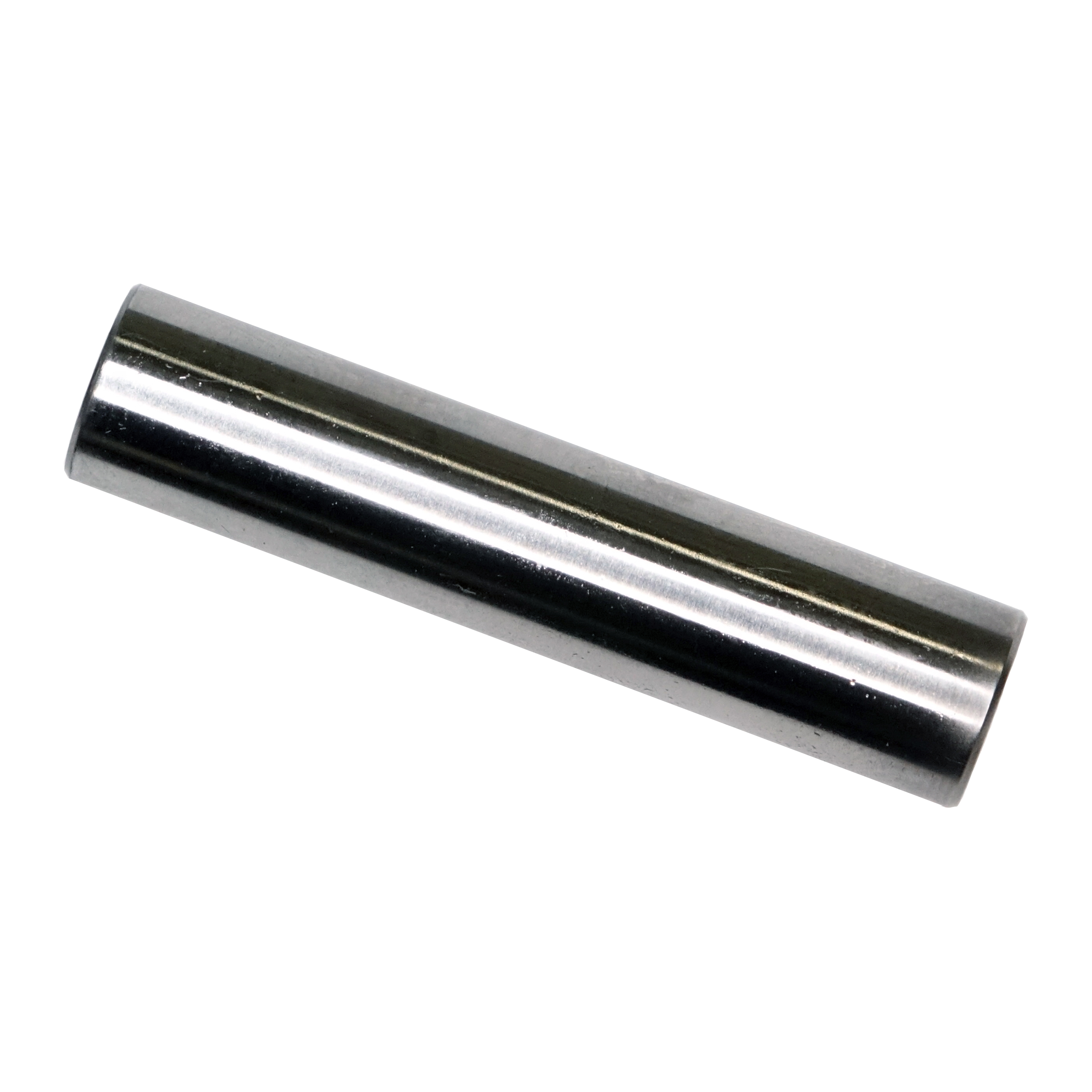

AXLE
4CB03119
4CB03119
SPRAG CLUTCH
4CB03176
4CB03176

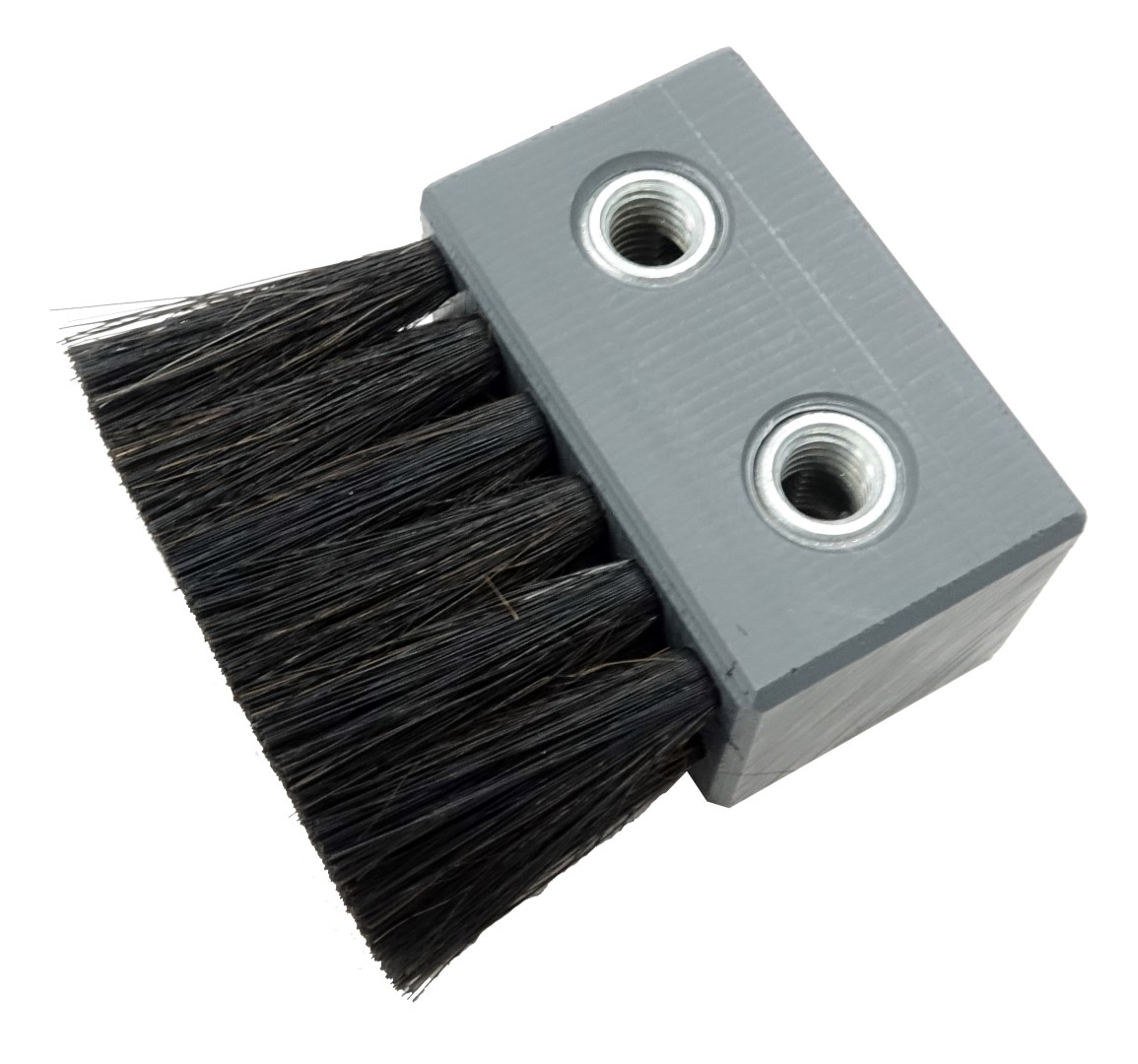

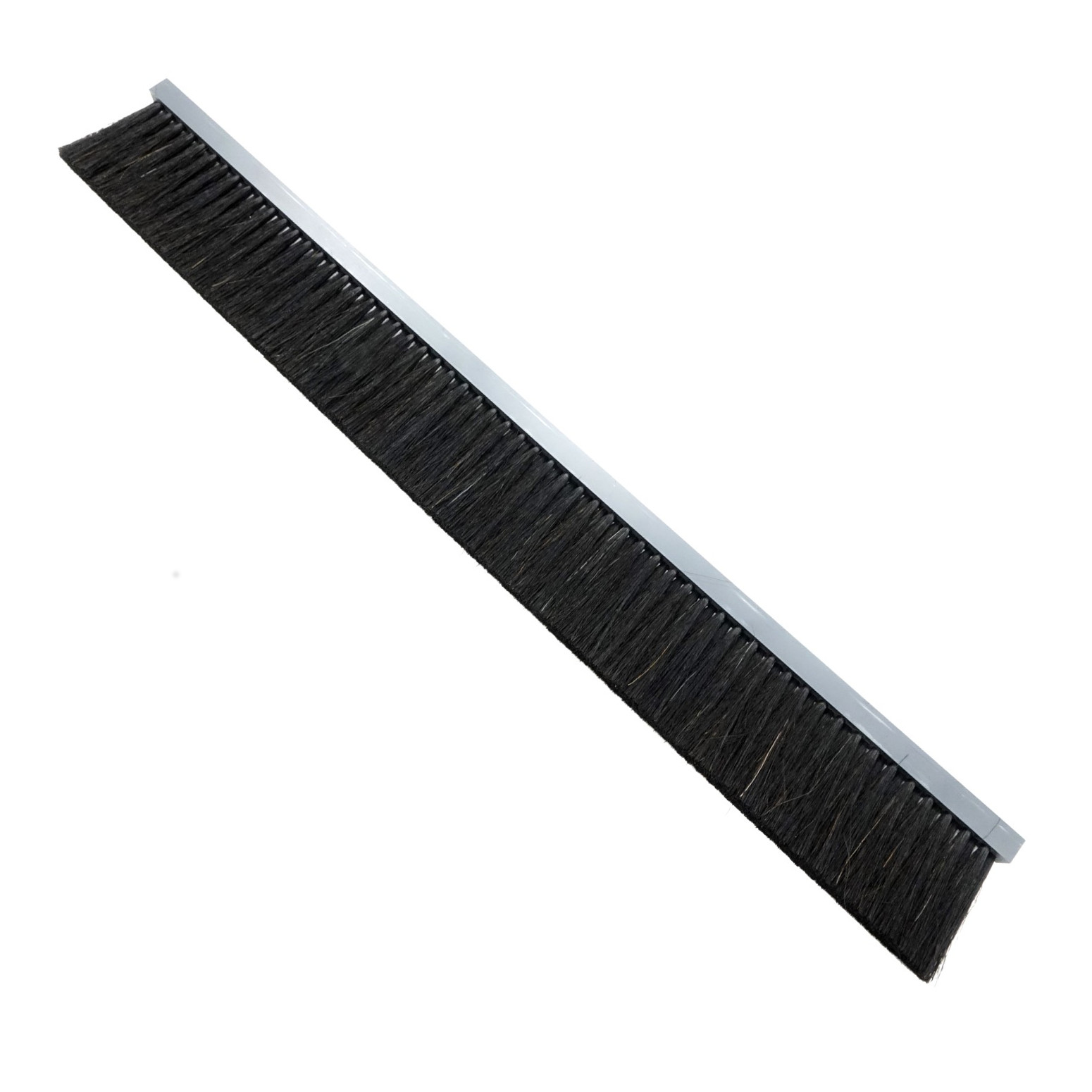

BRUSH
4CB03195
4CB03195
L = 540X10X12MM 70MM
BRAKE LINING REPAIR KIT
4CB03260
4CB03260
PRESSURE ROLLER
4CB03315
4CB03315
ANGULAR GEAR
4CB03337
4CB03337
Z 20 / D 8 MM

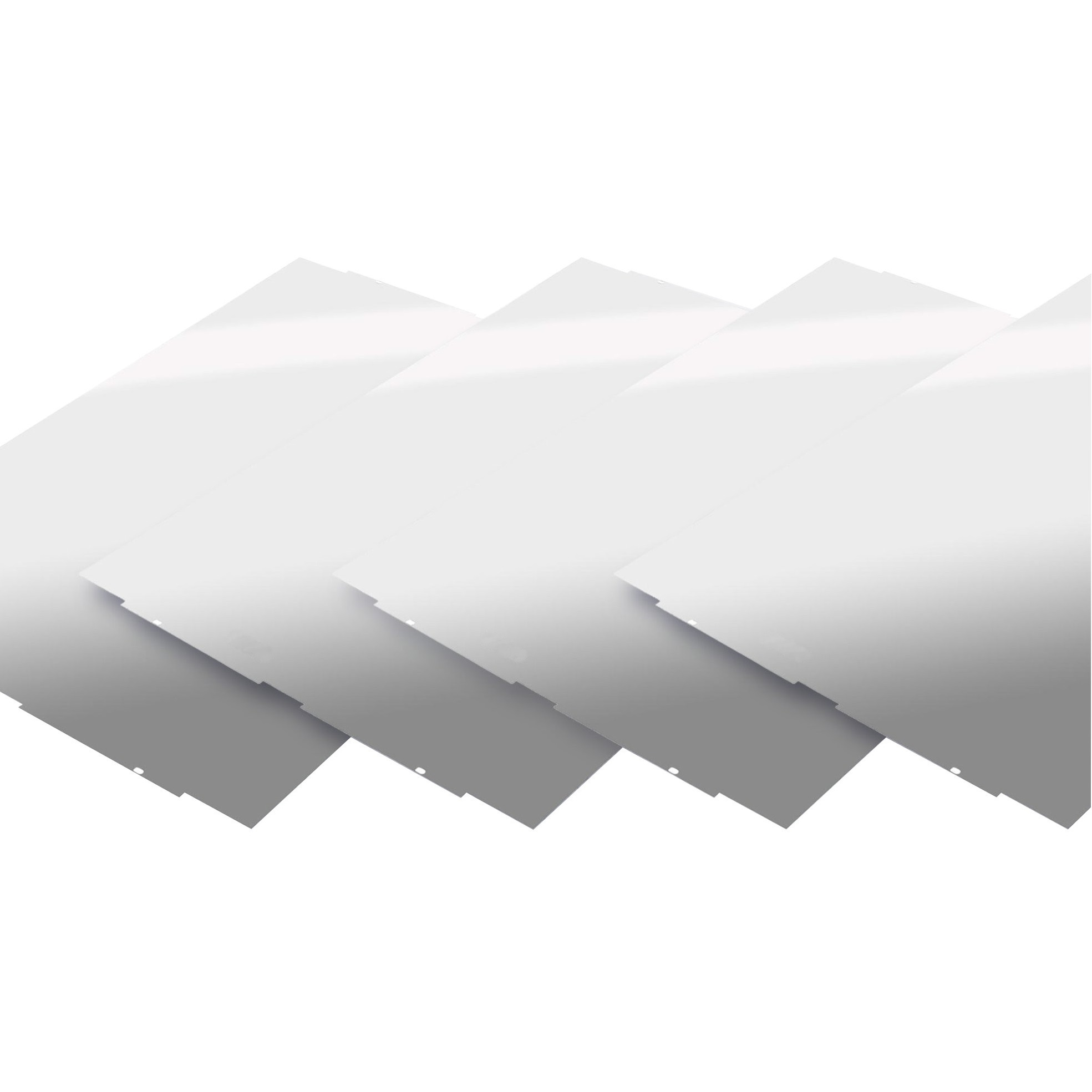

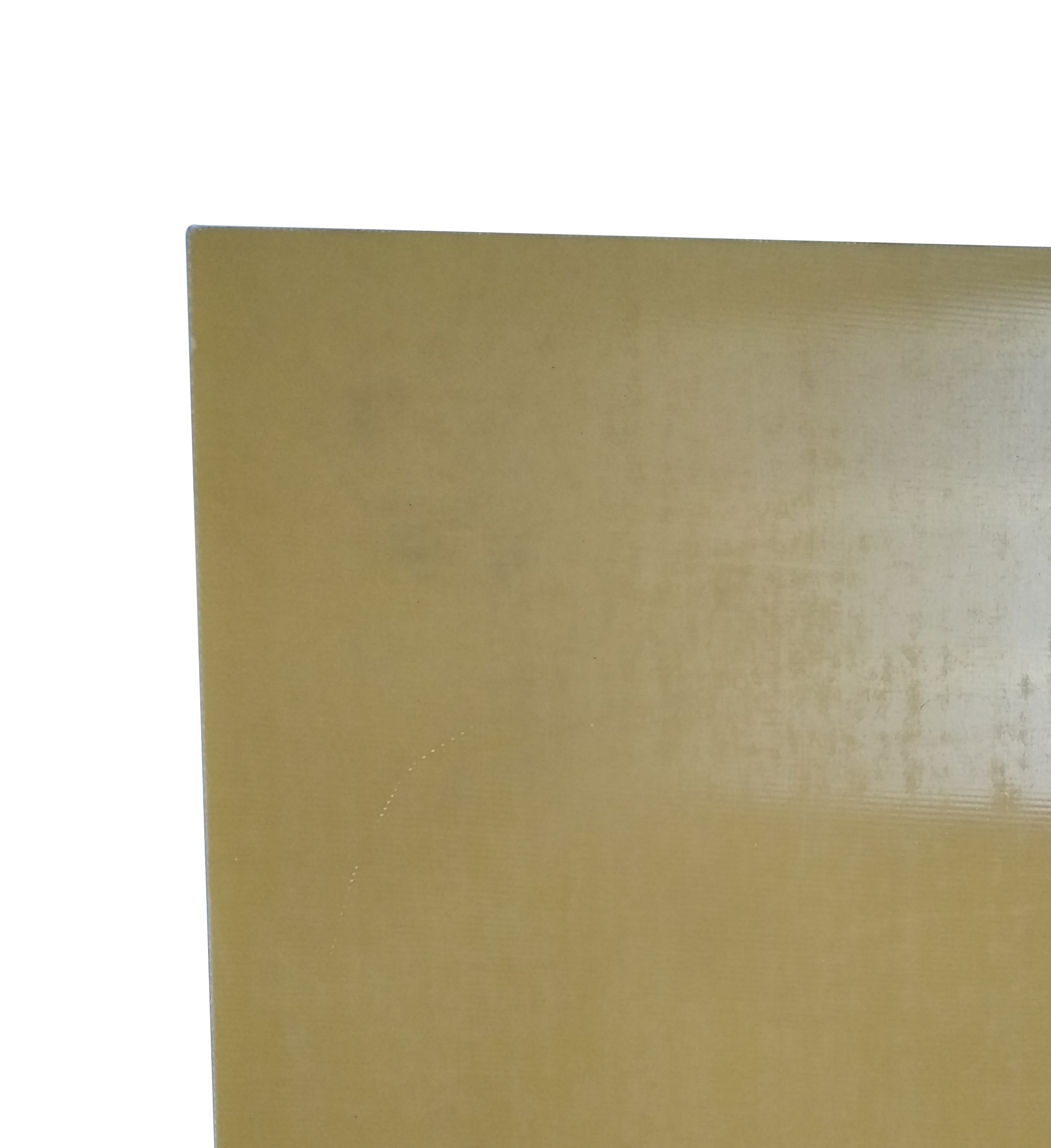

THIN CUTTING PLATES
4CB03828
4CB03828
Minimum order qty 20 pcs.
18 HRC
THIN CUTTING PLATES
4CB03894
4CB03894
35 HRC
Minimum order qty 20 pcs.
THIN CUTTING PLATE TOP HARD
4CB03922
4CB03922
50 HRC
BUSHING (GLISSA)
4CB04219
4CB04219
12 / 8.25 X 18 MM
SPRING (COMPRESSION)
4CB04822
4CB04822
DM 7.7 / 1 X 27 MM
BRUSH (LUBRICATION)
4CB05066
4CB05066
SUPPORTING PLATE (DIECUTTING)
4CB05086
4CB05086

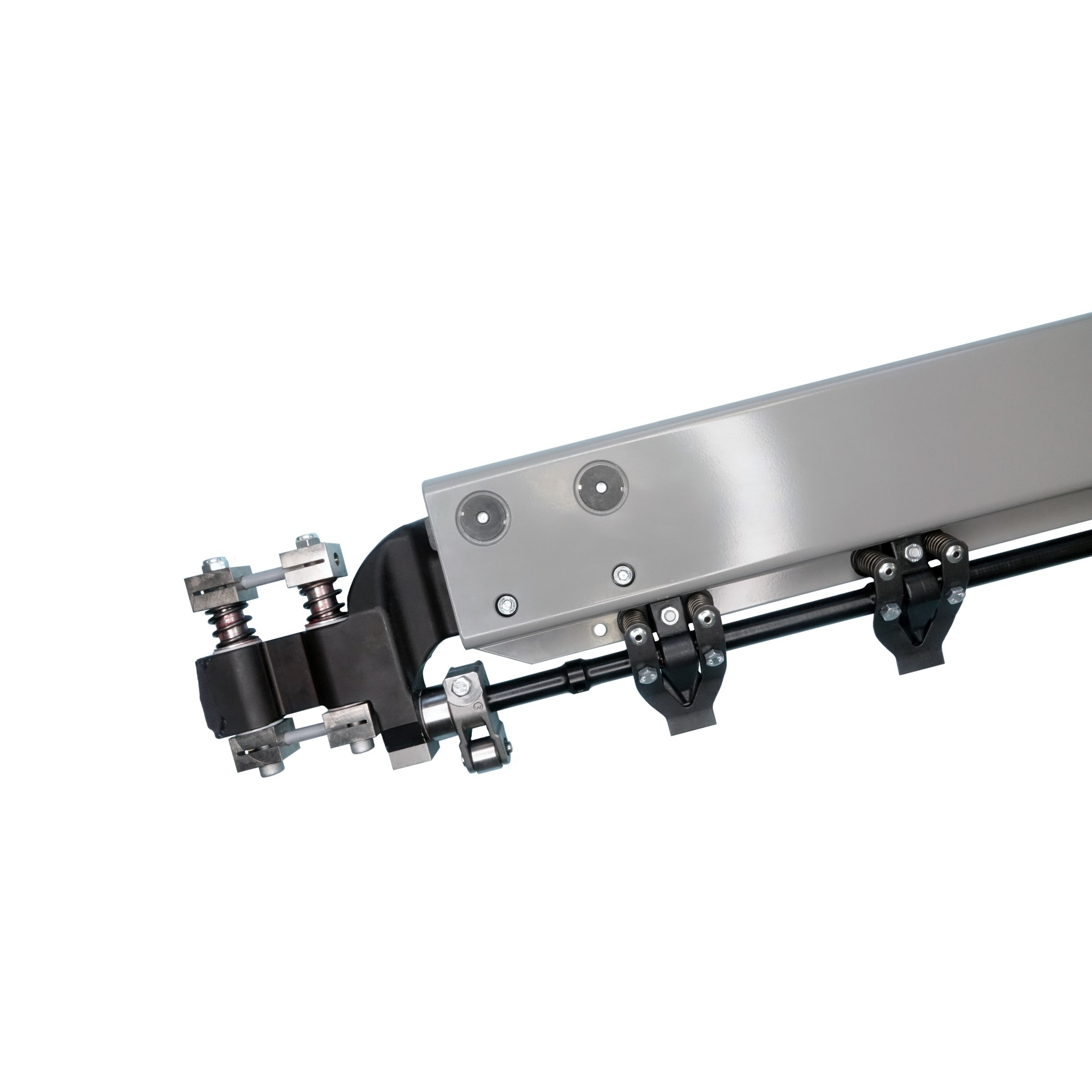

GRIPPER BAR (MG)
4CB05089
4CB05089
Exp cut 106 LER/PER up to S/N 38

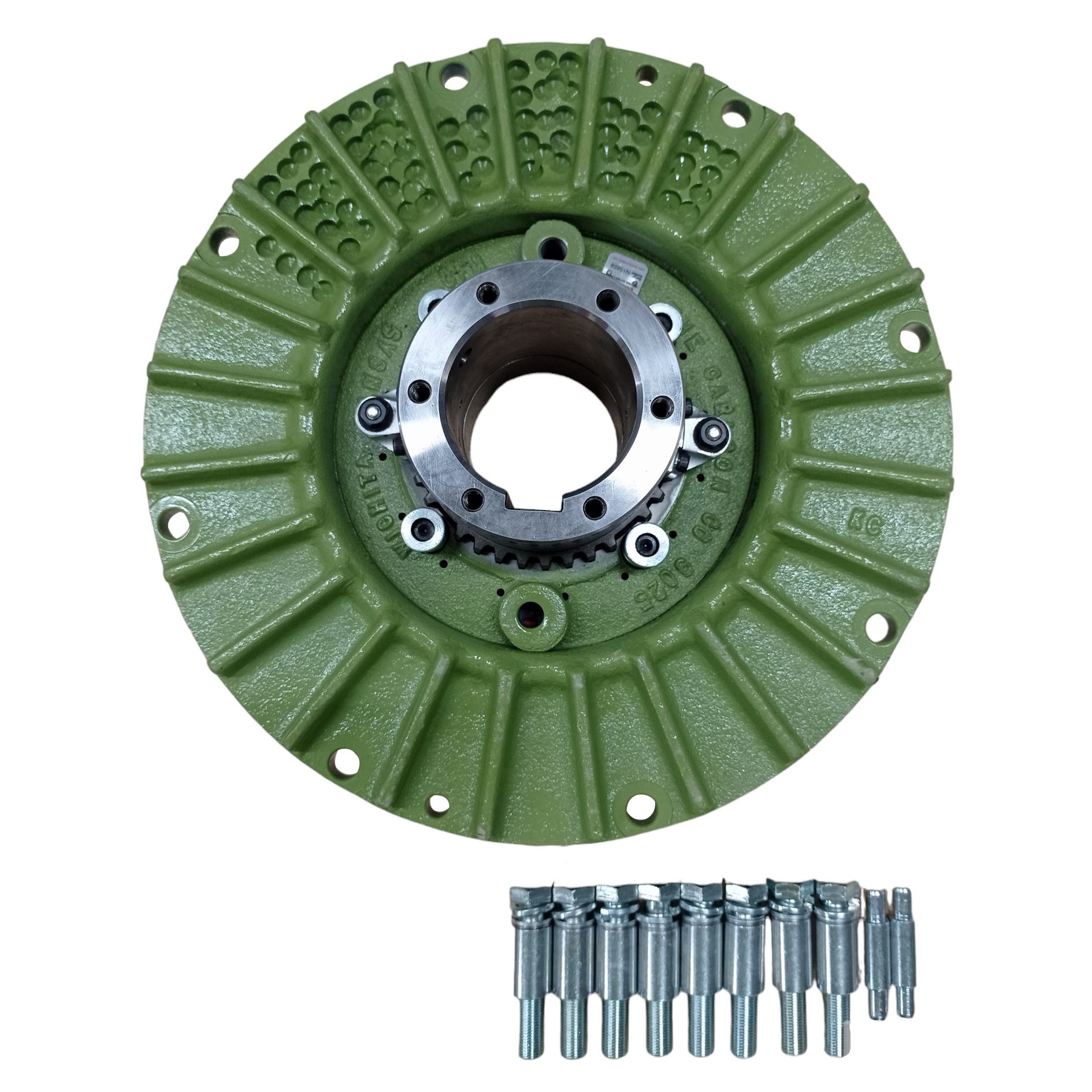

POWER FLOW (CLUTCH)
4CB05502
4CB05502
ROLLER
4CB05622
4CB05622
30 / 47 x 18 mm NA 4906.2RS
BUSHING
4CB06469
4CB06469
12. 1 / 14 X 18 MM

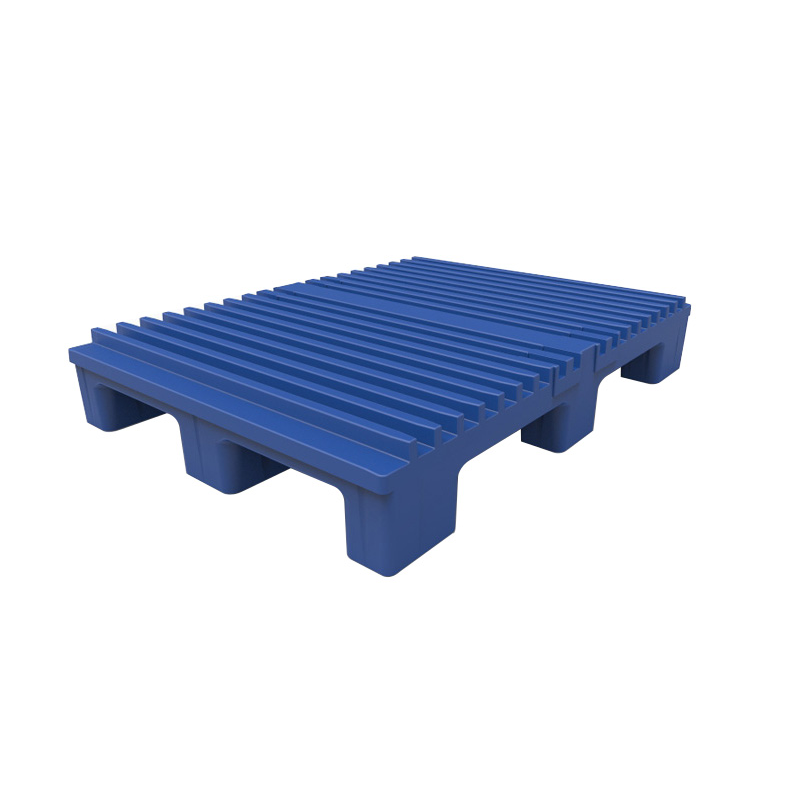

PALLET
4CB06616
4CB06616
1061 X 760 X 173 MM

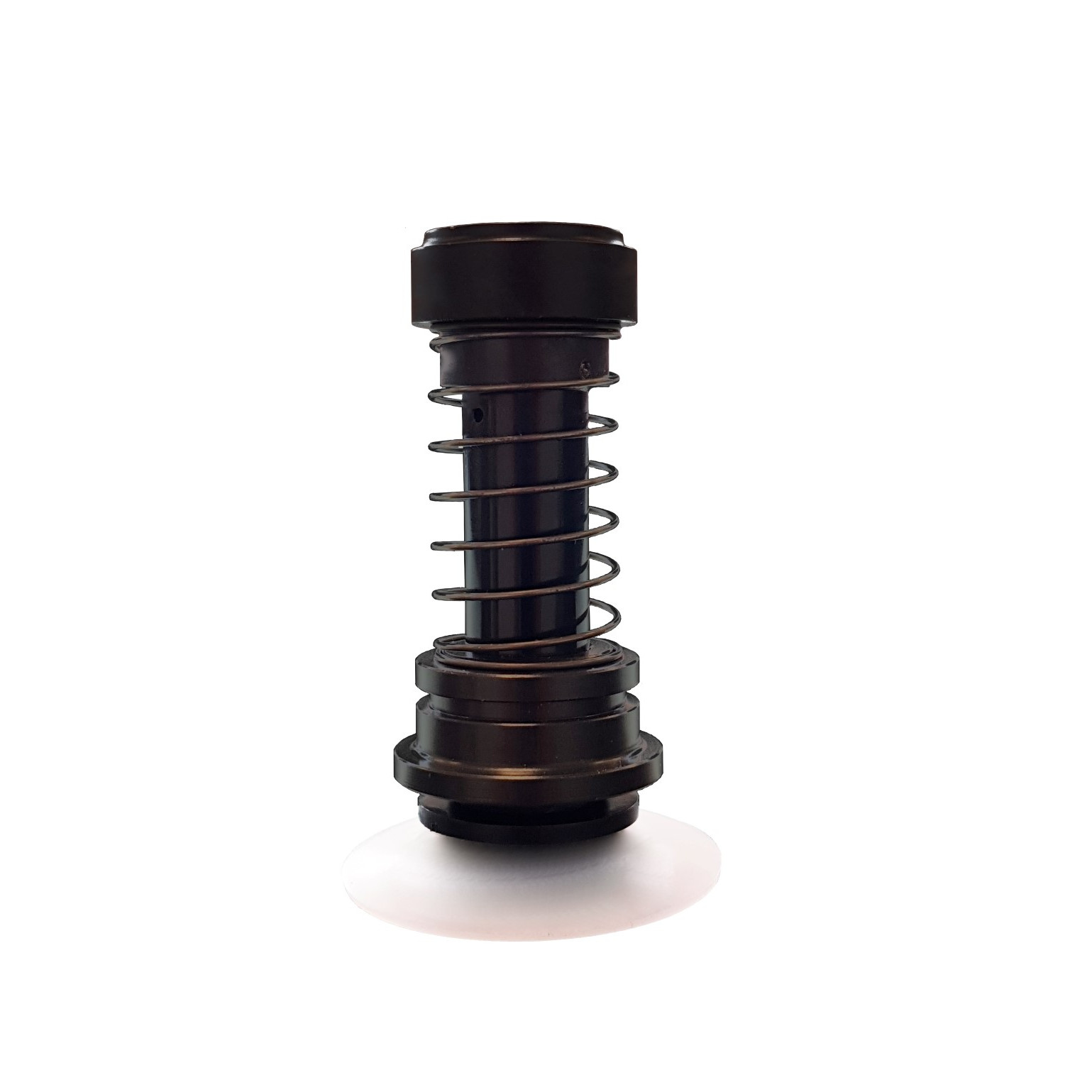

SUCTION CUP
4CB06645
4CB06645
Transport cup, 78mm height
SUCTION CUP
4CB06646
4CB06646
Lifting cup, 67,7mm height
POWER FLO (HUB)
4CB06654
4CB06654

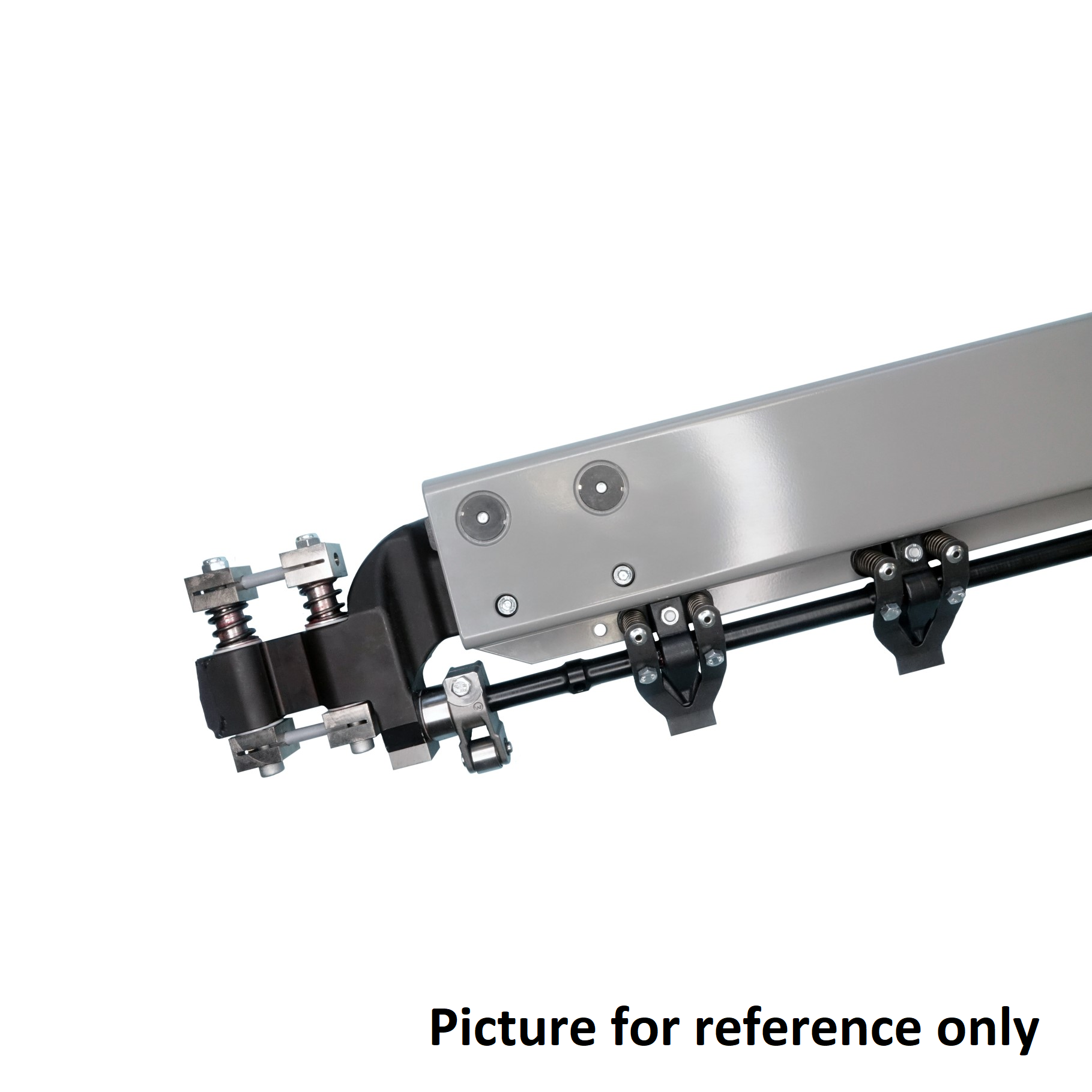

GRIPPER BAR
4CB06771
4CB06771
Exp cut 106 LER/PER starting from S/N 38 MG
WHEEL
4CB07424
4CB07424
ALU STRIPPING PIN D 15 / 4 MM
4CB07482
4CB07482
ALU STRIPPING PIN D 10 / 4 MM
4CB07483
4CB07483
Steel version is 4CB58662
SPROCKET WHEEL O.S.
4CB07548
4CB07548
SPROCKET WHEEL O.O.S.
4CB07549
4CB07549

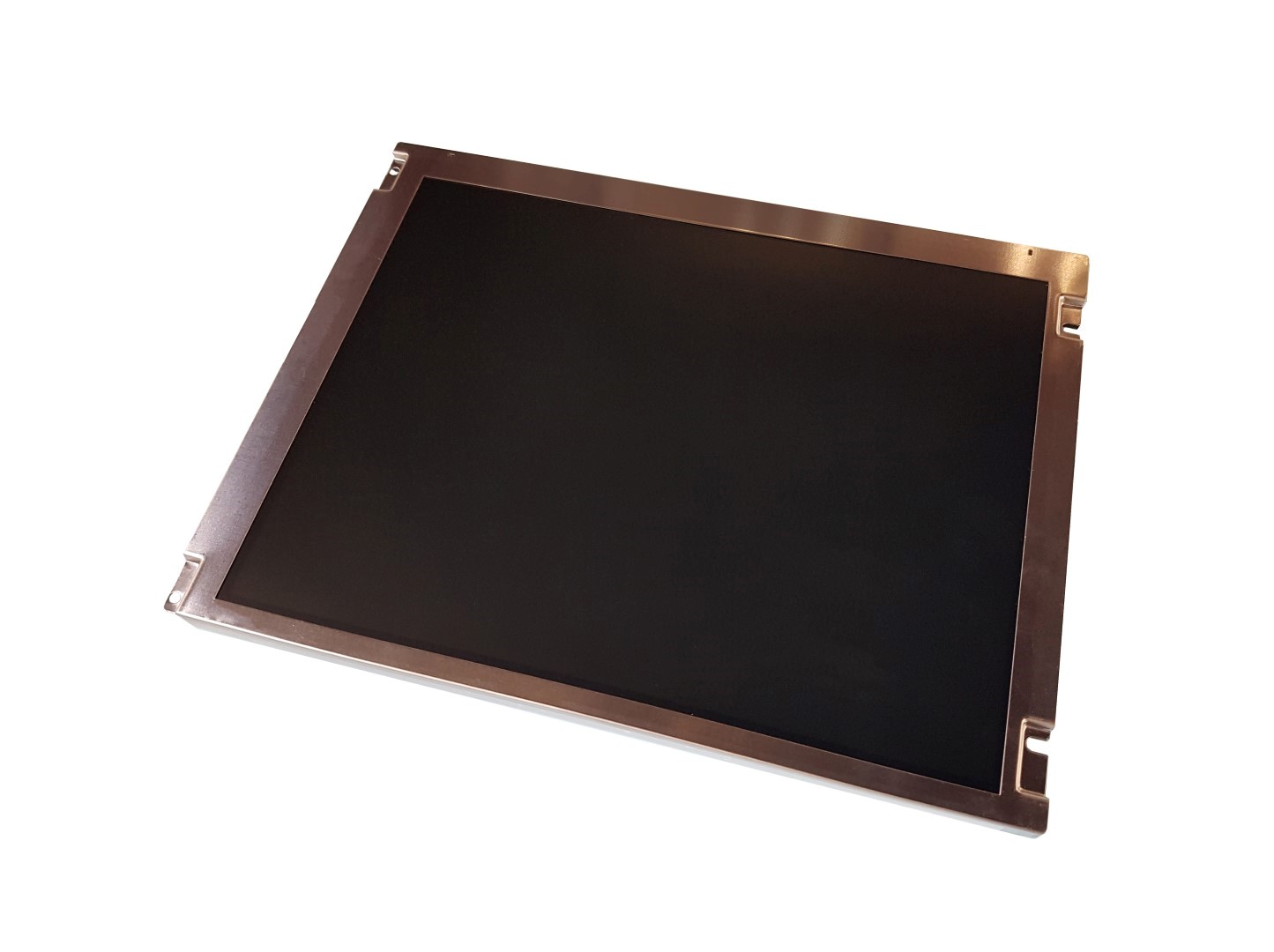

CUBE III LCD
4CB07564
4CB07564

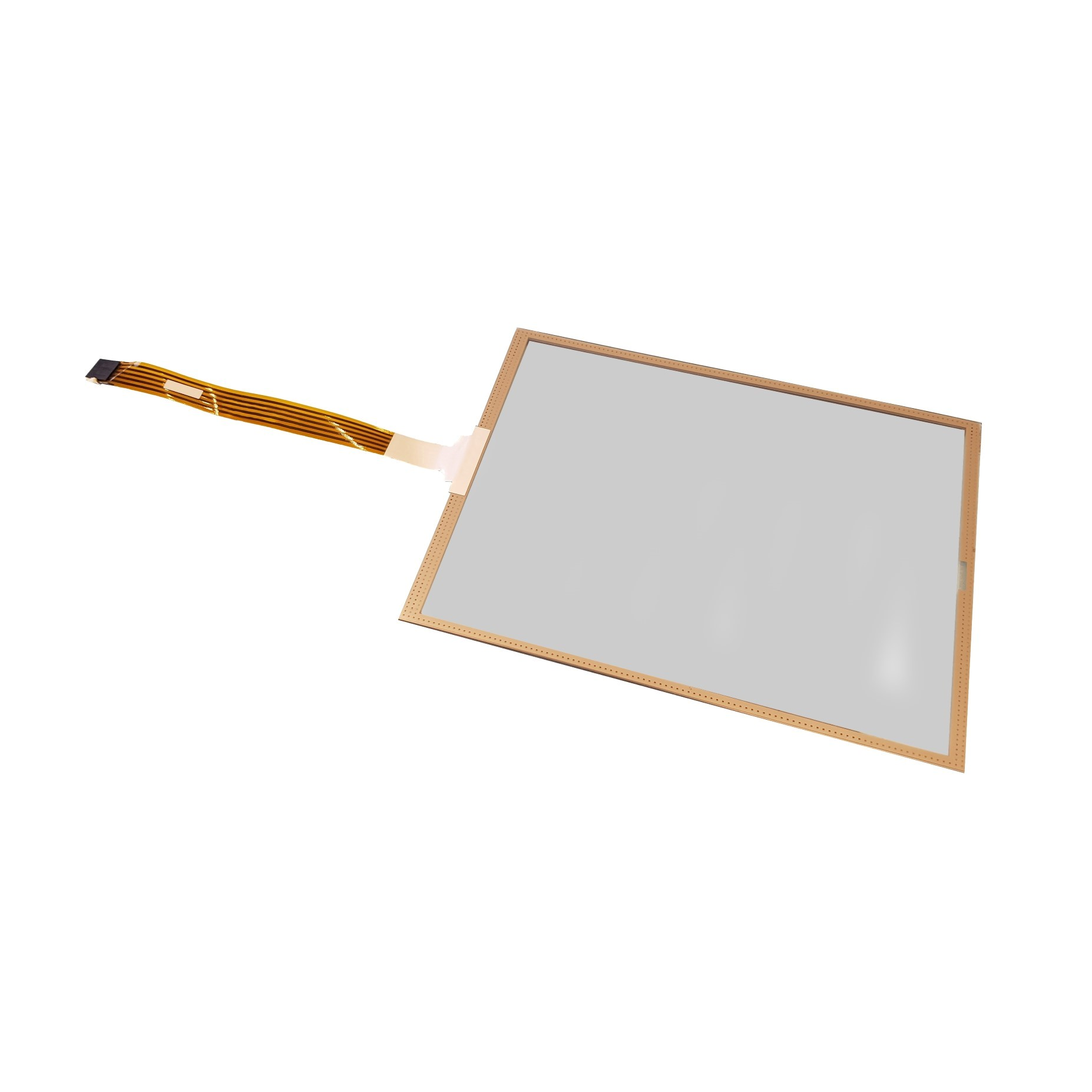

CUBE III TOUCHSCREEN
4CB07565
4CB07565
GRIPPER COUNTERPLATE
4CB07573
4CB07573

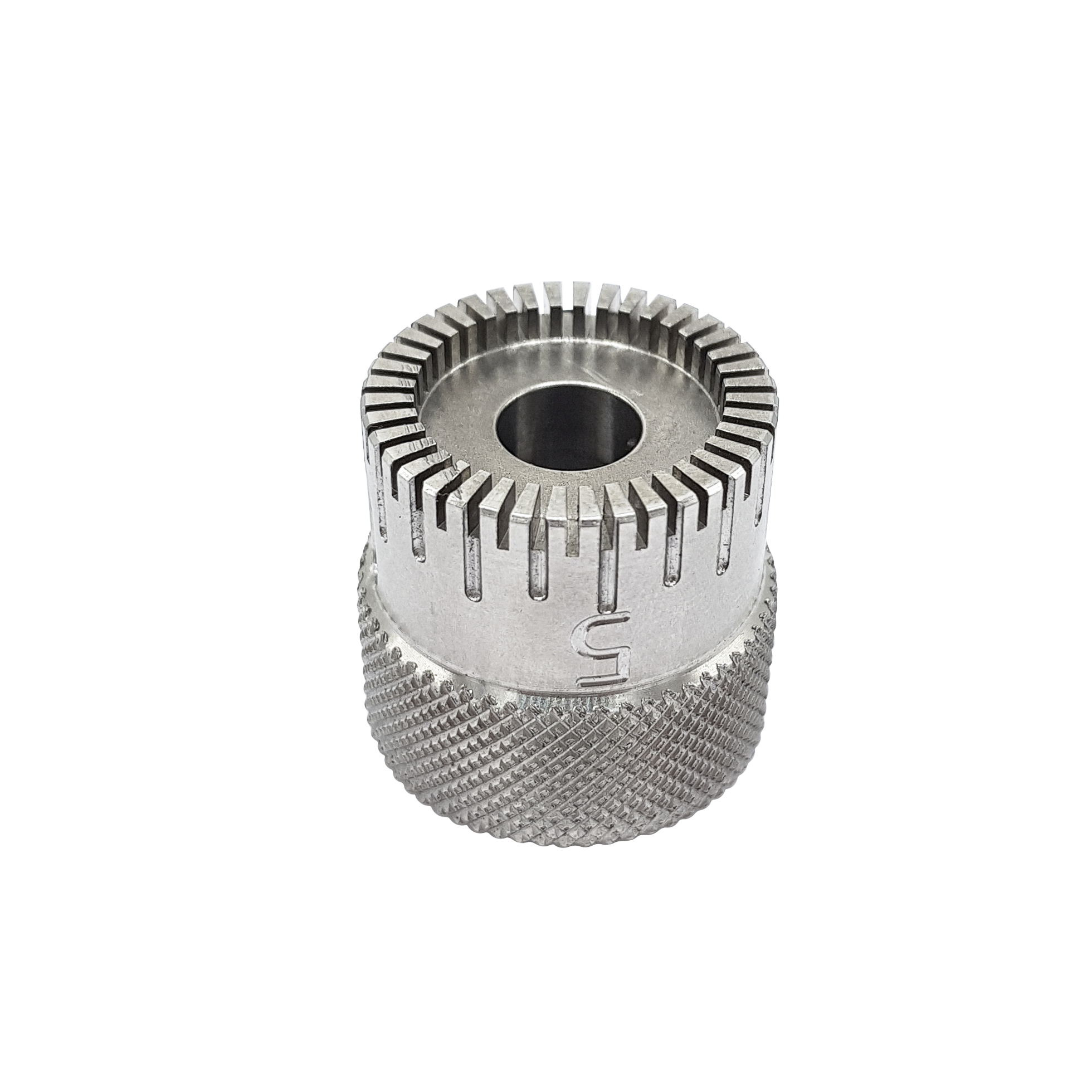

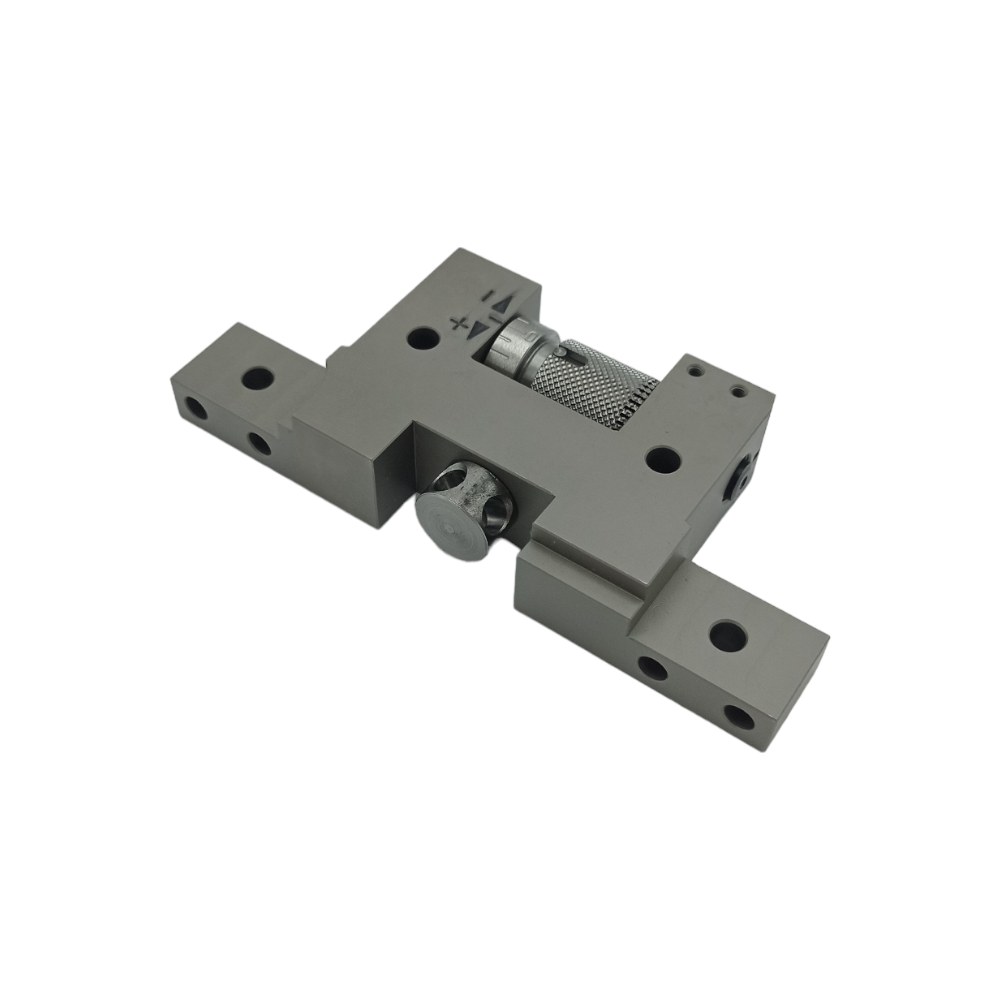

MICROMETRIC ADJUSTMENT OS
4CB07617
4CB07617

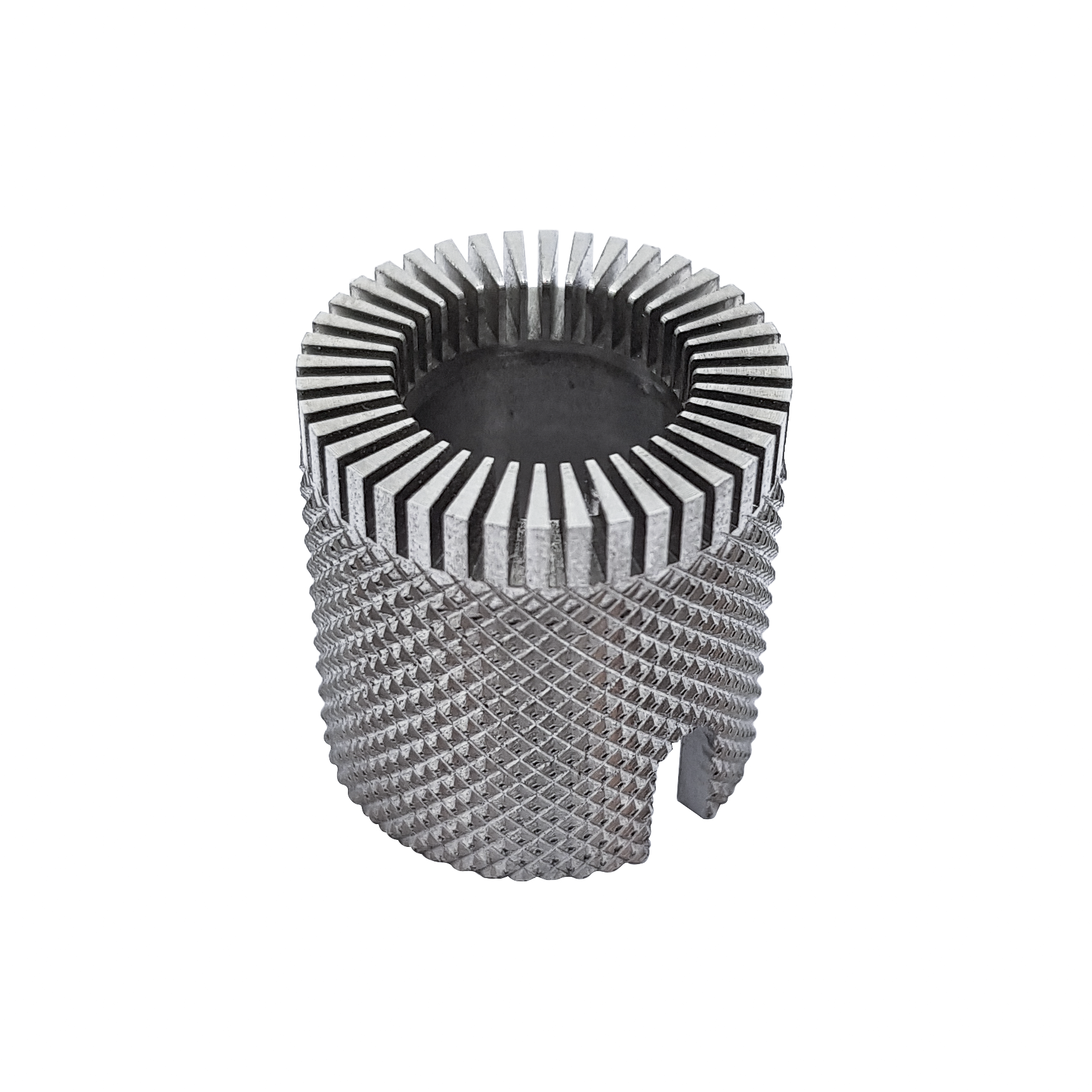

MICROMETRIC ADJUSTMENT OOS
4CB07620
4CB07620
GRIPPER
4CB07642
4CB07642

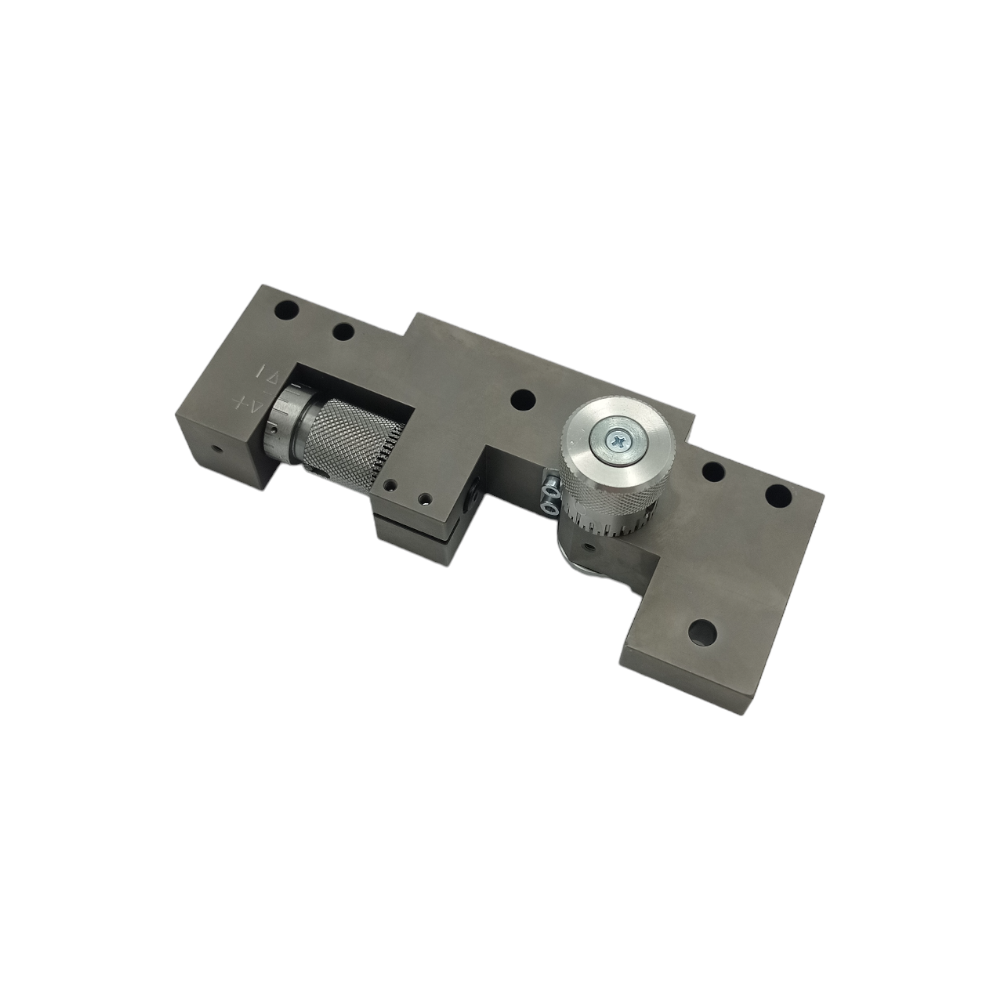

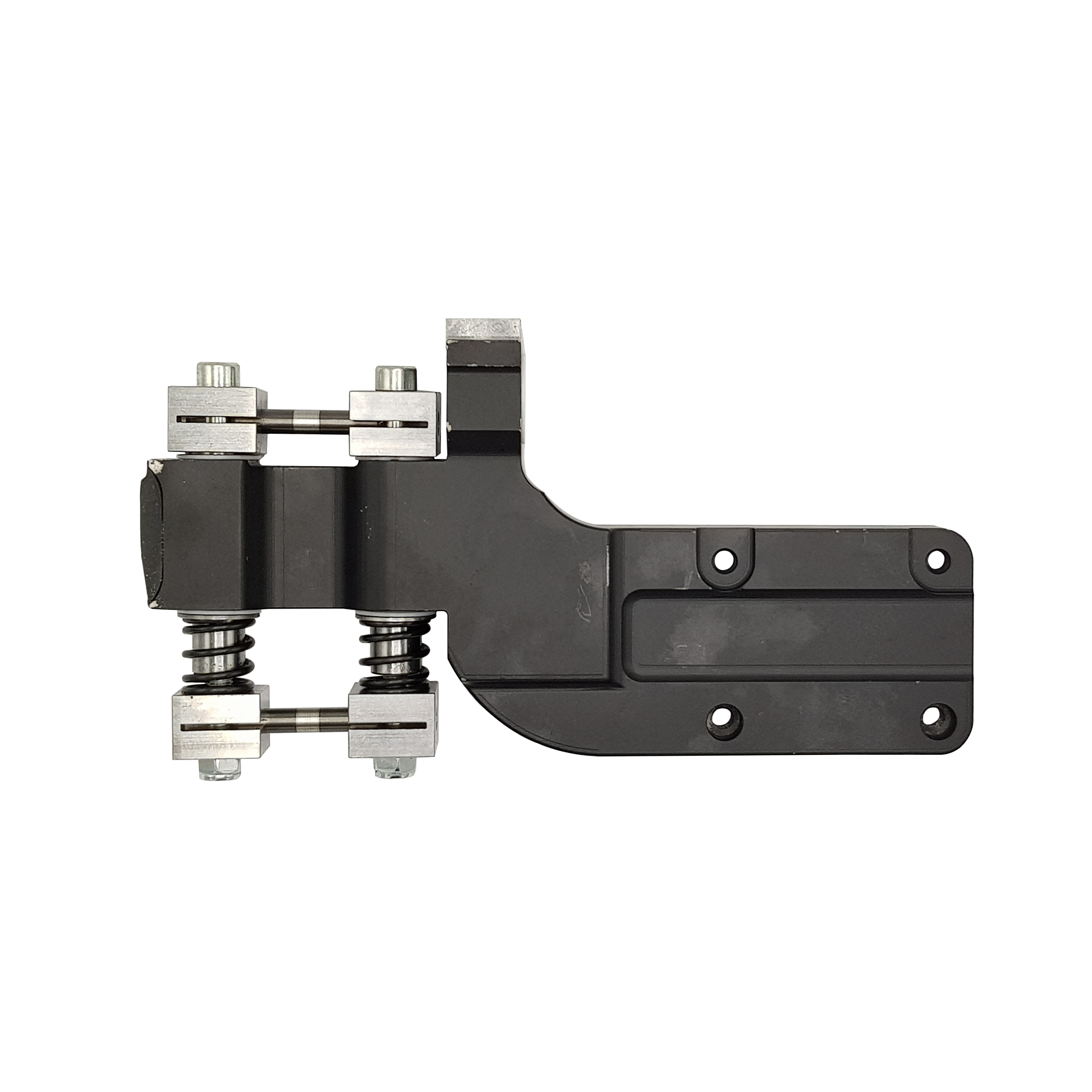

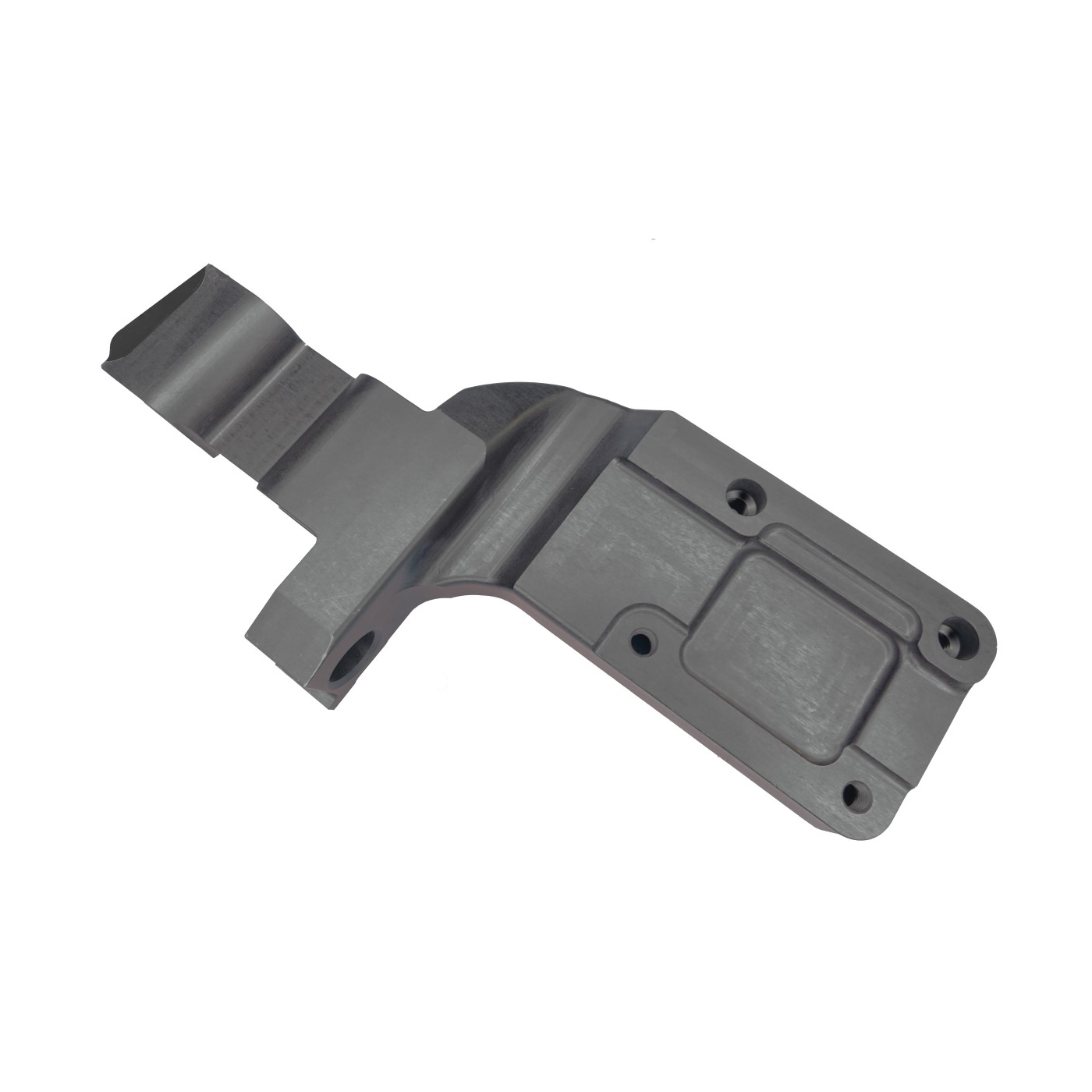

FIXTURE OS
4CB07643
4CB07643
Spantera and Exp cut 106 LER/PER starting from S/N 38
FIXTURE OOS
4CB07644
4CB07644
Spantera and Exp cut 106 LER/PER starting from S/N 38
SPRING
4CB07705
4CB07705

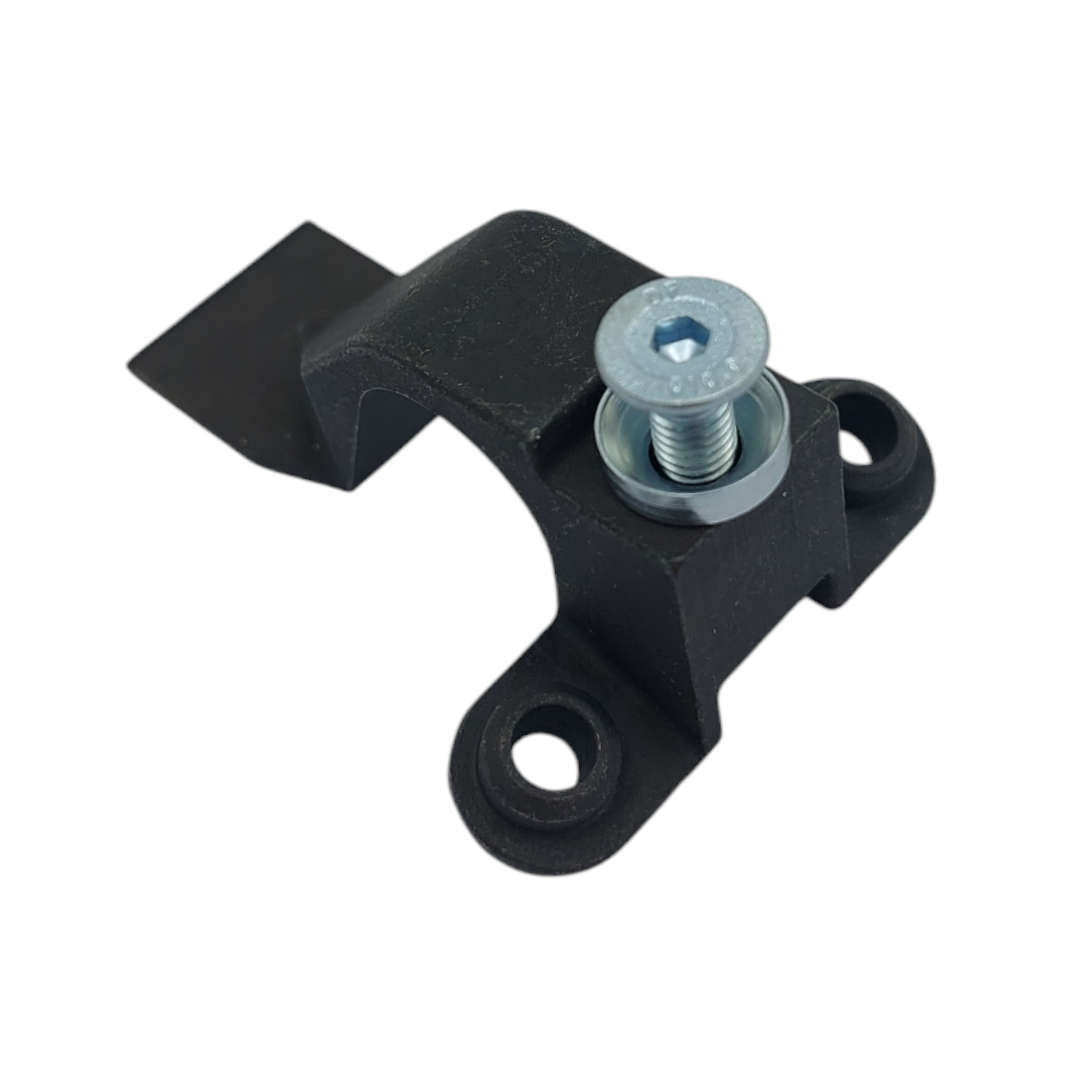

CLAMP
4CB07707
4CB07707
COMPRESSION SPRING
4CB07743
4CB07743
D=0. 8 DM= 20 L= 50 MM
SPRING
4CB07852
4CB07852
CHASE CHANGER
4CB08041
4CB08041
CHASE CHANGER ELEVATION
4CB08042
4CB08042
CLAMP
4CB08103
4CB08103
FIXTURE OS
4CB18462
4CB18462
Spantera and Exp cut 106 LER/PER up to S/N 38
FIXTURE OOS
4CB18463
4CB18463
Spantera and Exp cut 106 LER/PER up to S/N 38
RAIL
4CB18526
4CB18526
RING
4CB18533
4CB18533
DRUM
4CB18537
4CB18537
SHAFT
4CB18868
4CB18868
GRIPPER BAR SHELL
4CB19087
4CB19087
Magnesium
BLOCK
4CB19121
4CB19121
COVER
4CB20227
4CB20227
FRAME
4CB20770
4CB20770
CAM
4CB21030
4CB21030
ECCENTRIC D10 MM
4CB23709
4CB23709

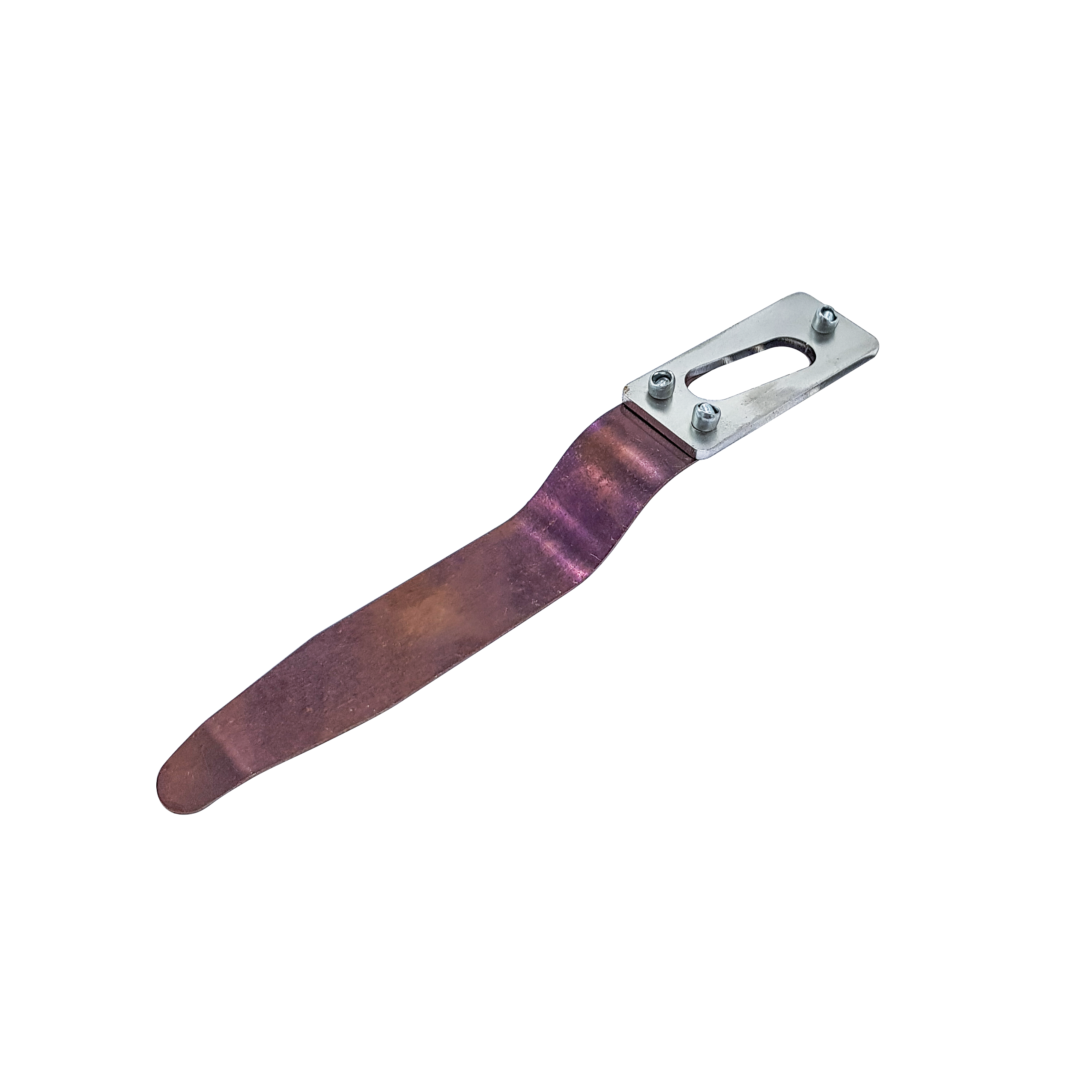

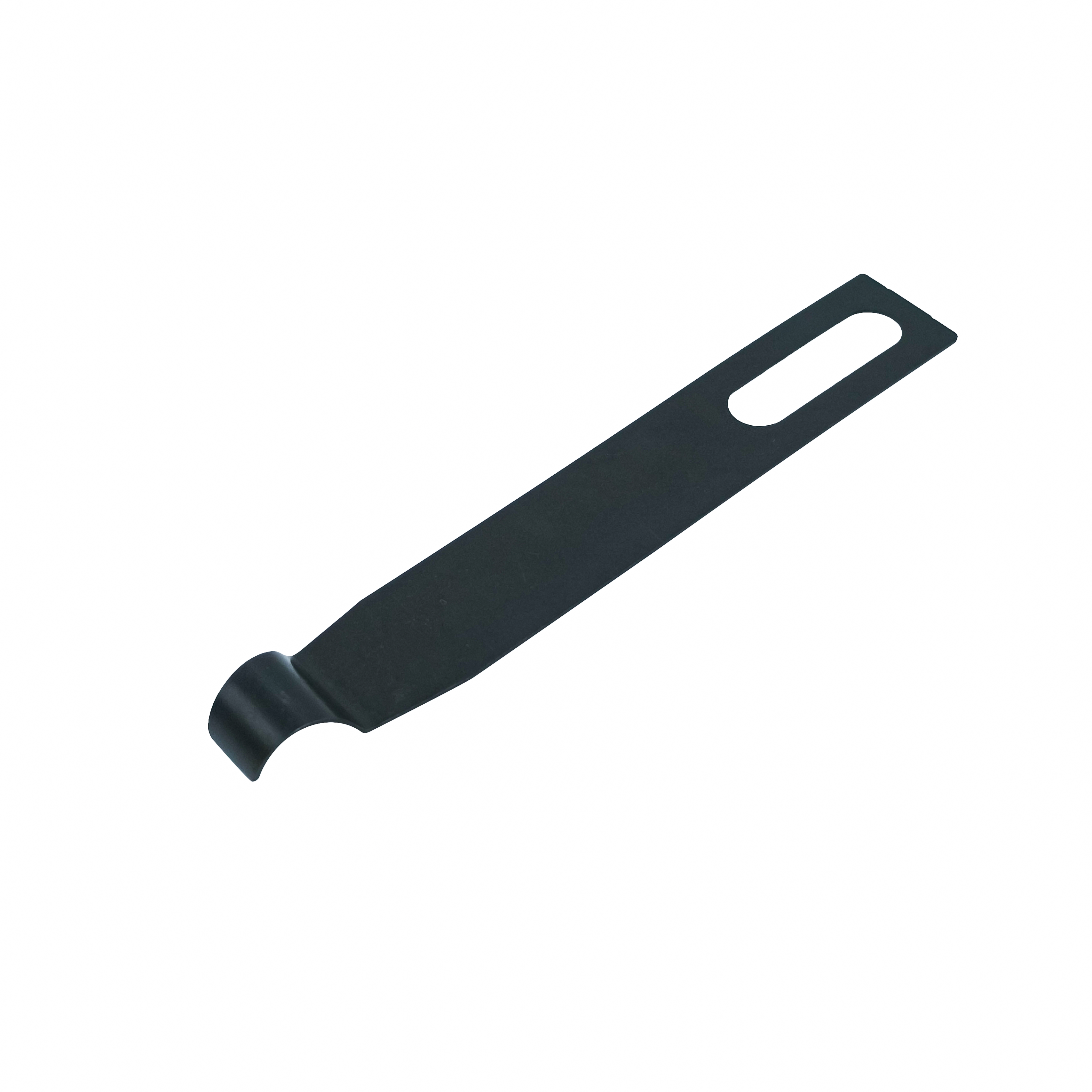

FLAT SPRING
4CB25979
4CB25979
REDUCTOR
4CB344943
4CB344943

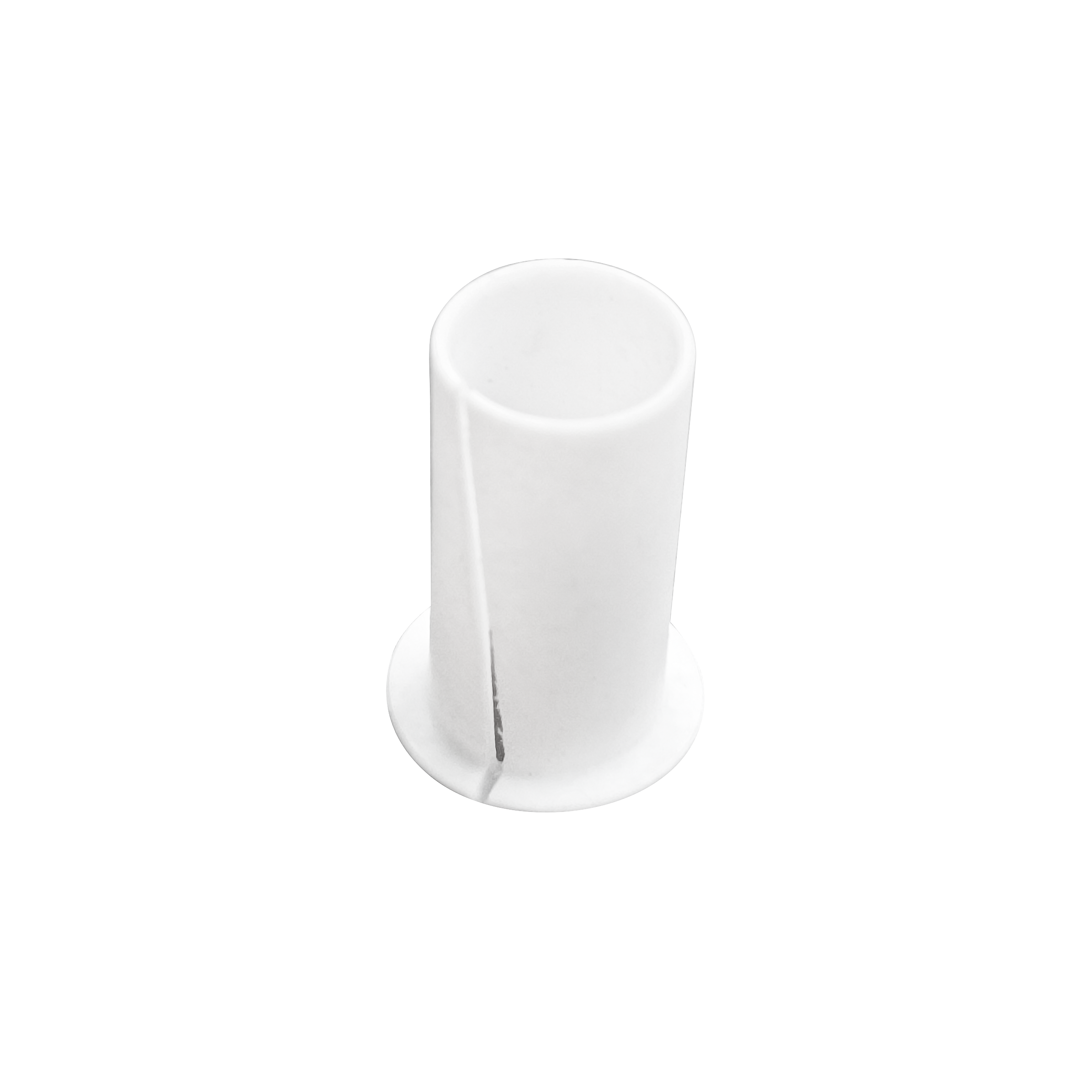

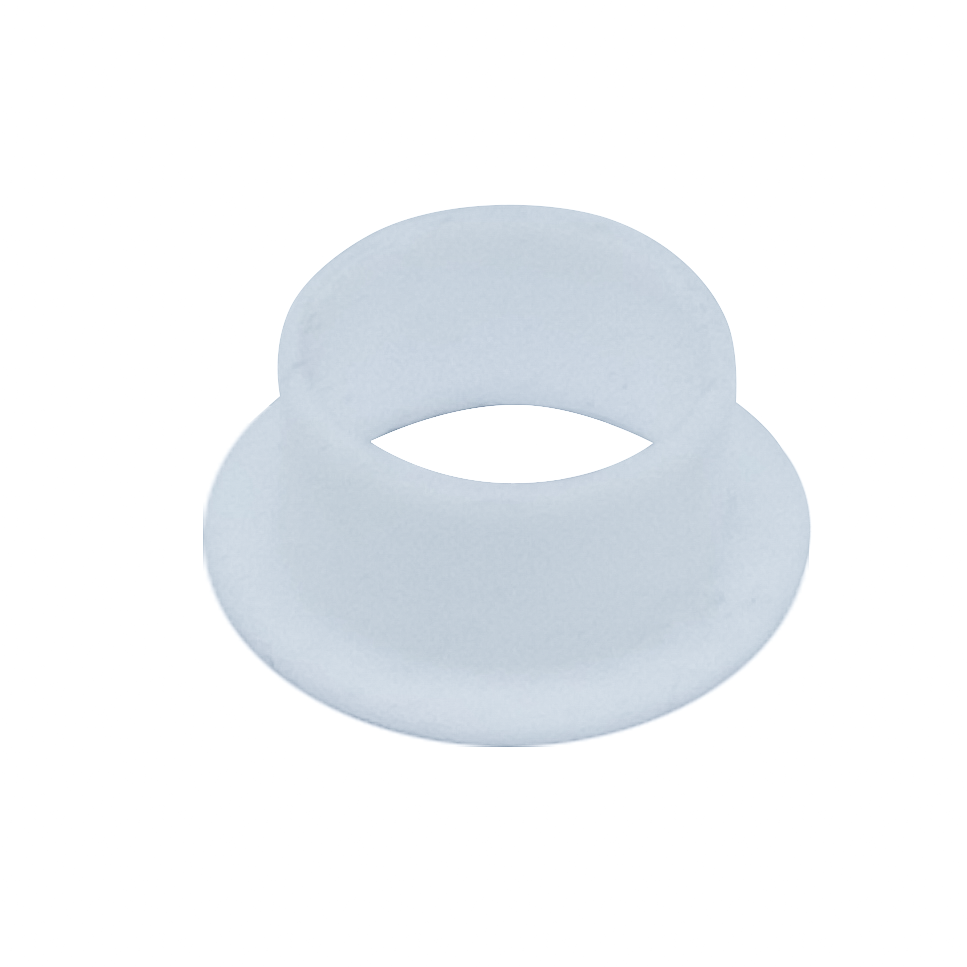

SYNTHETIC BUSHING
4CB54349
4CB54349
12 / 14 X 7 MM

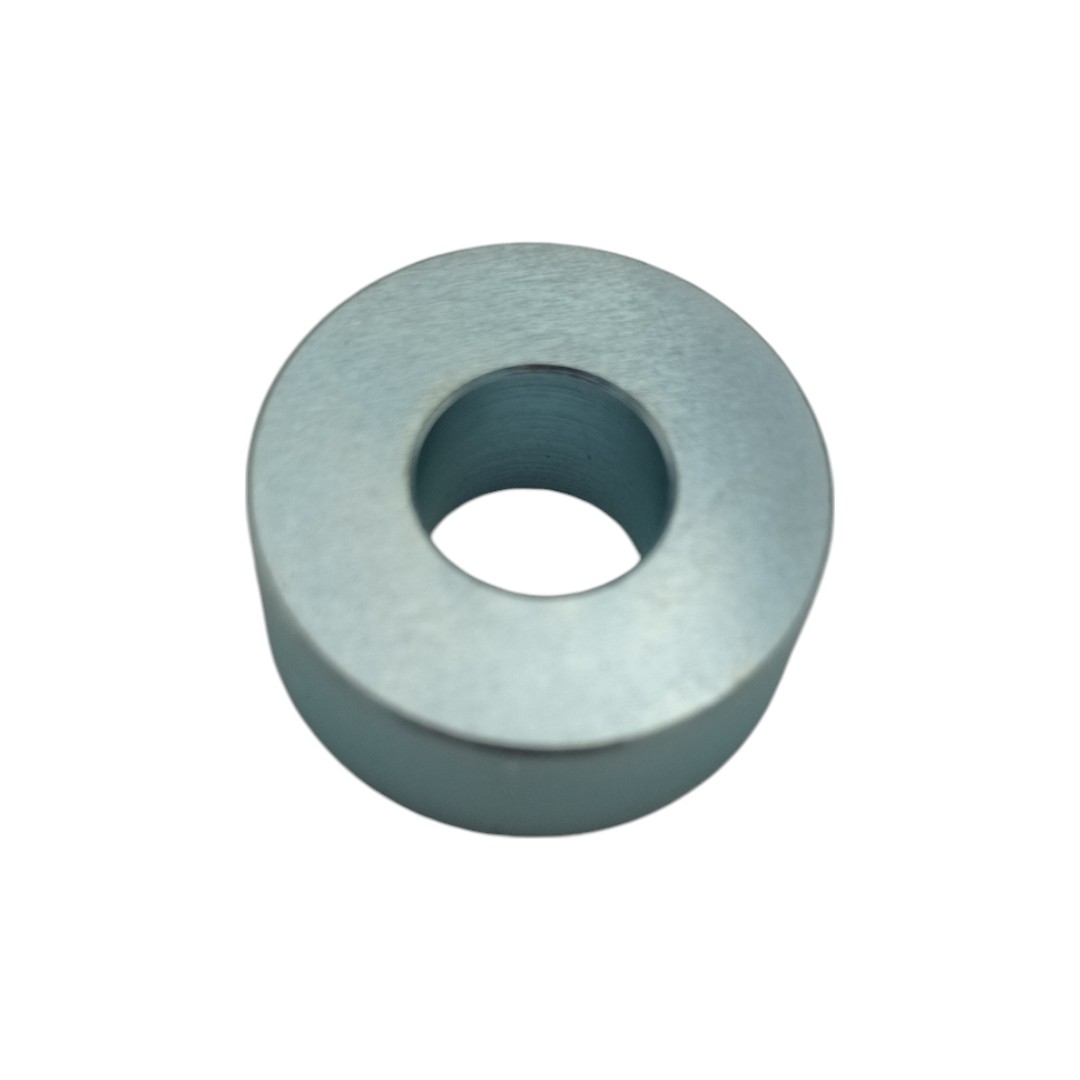

BUSHING
4CB54350
4CB54350
12. 1 / 14 X 27 MM
PISTON
4CB54683
4CB54683
PIN HOLDER 7 HOLES (10X)
4CB57776
4CB57776
Set of 10 pcs

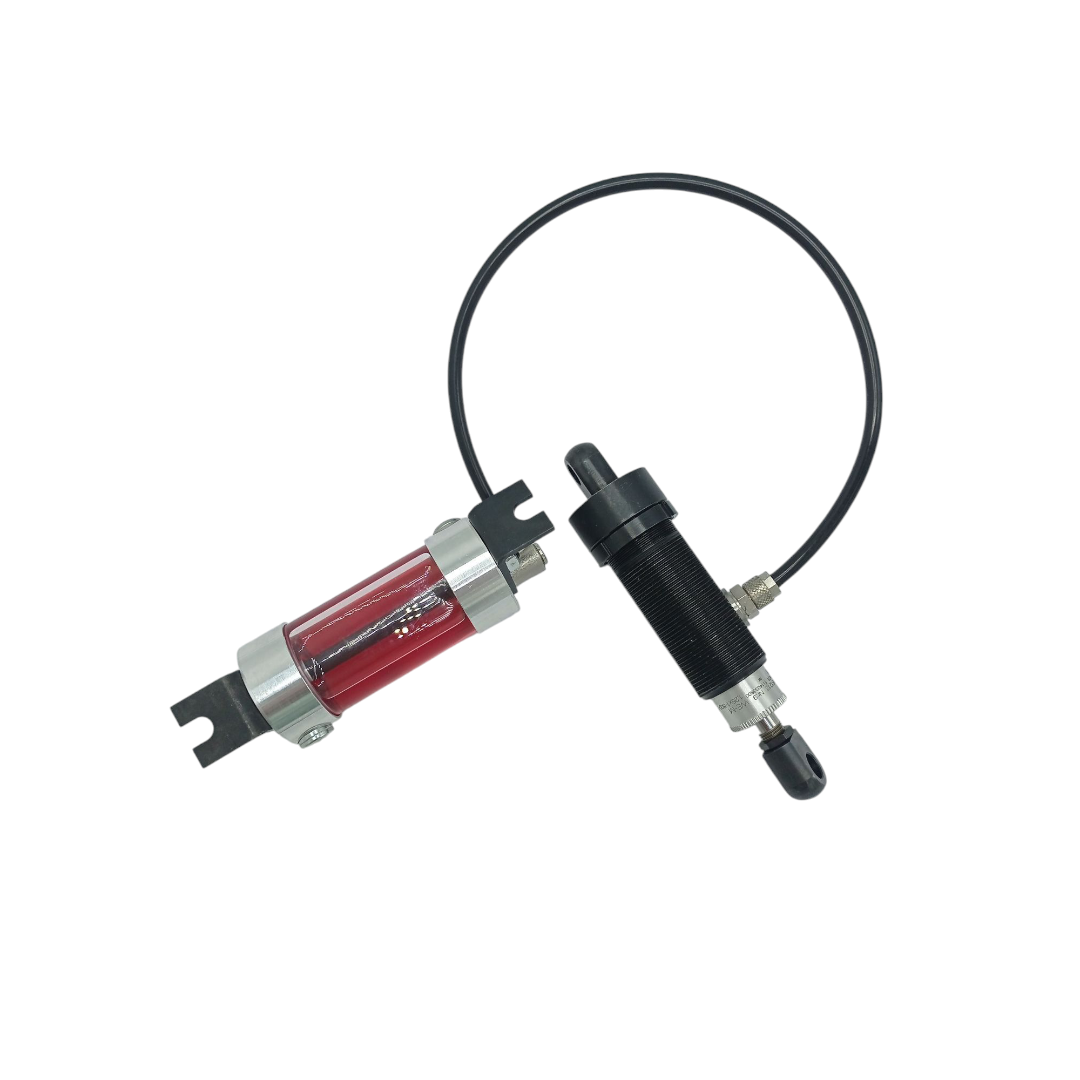

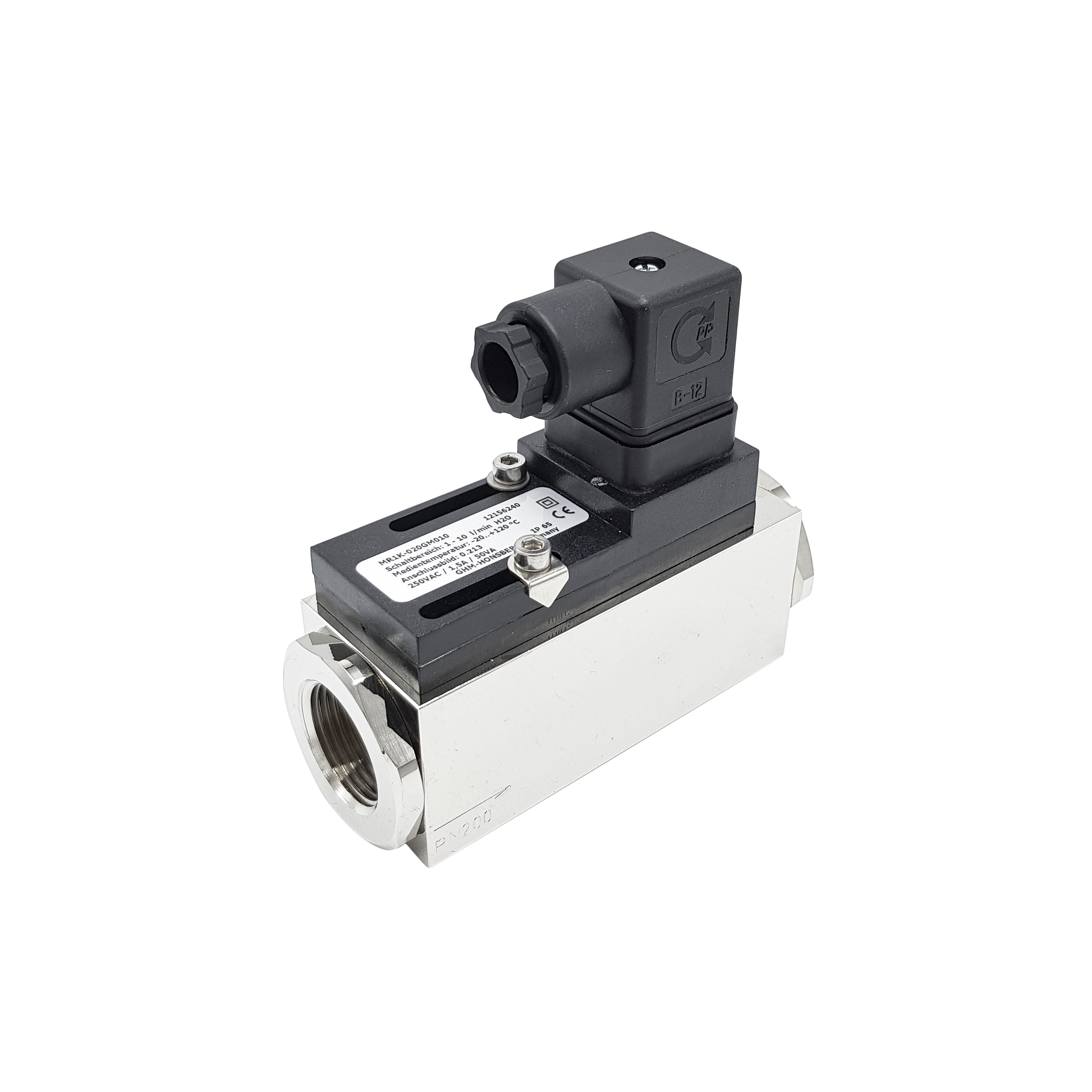

FLOW DETECTOR
4CB57791
4CB57791
FIXTURE OOS MOUNTED
4CB58052
4CB58052
Spantera and Exp cut 106 LER/PER starting from S/N 38
FIXTURE OS MOUNTED
4CB58053
4CB58053
Spantera and Exp cut 106 LER/PER starting from S/N 38
FIXTURE MOUNTED
4CB58054
4CB58054
Spantera and Exp cut 106 LER/PER up to S/N 38
FIXTURE MOUNTED
4CB58055
4CB58055
Spantera and Exp cut 106 LER/PER up to S/N 38
STEEL STRIPPING PIN D10 / 4 MM
4CB58662
4CB58662
Alumunium version is 4CB07483
PIN HOLDER 9 HOLES (10X)
4CB58771
4CB58771
PIN HOLDER 12 HOLES (10X)
4CB58772
4CB58772
THIN CUTTING PLATE 1 MM 35 HRC
4CB60746
4CB60746
Minimum order qty = 20 pcs.

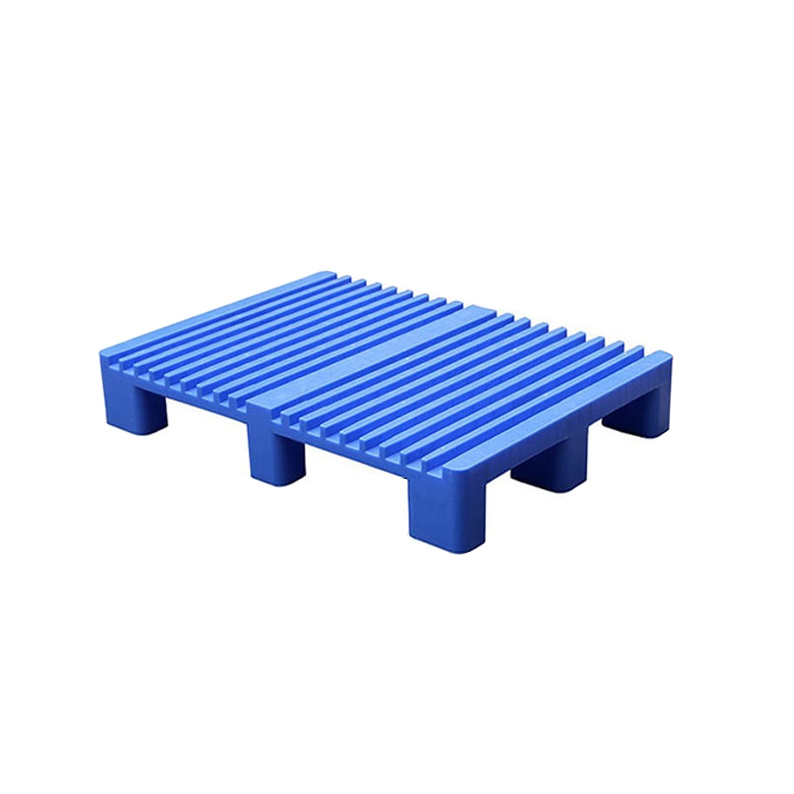

PALLET
4CB62133
4CB62133

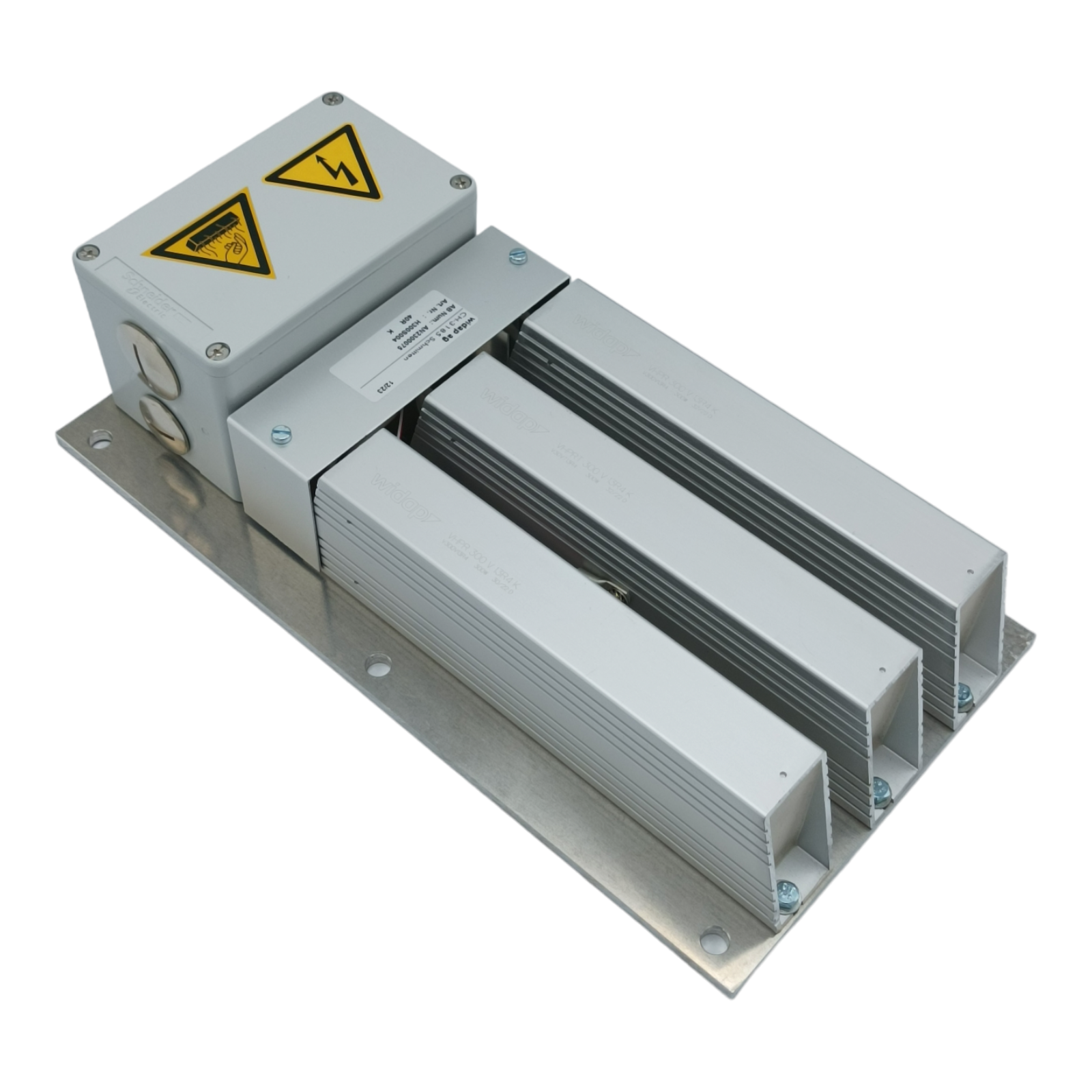

RESISTOR 3X 40R K
4CB68390
4CB68390

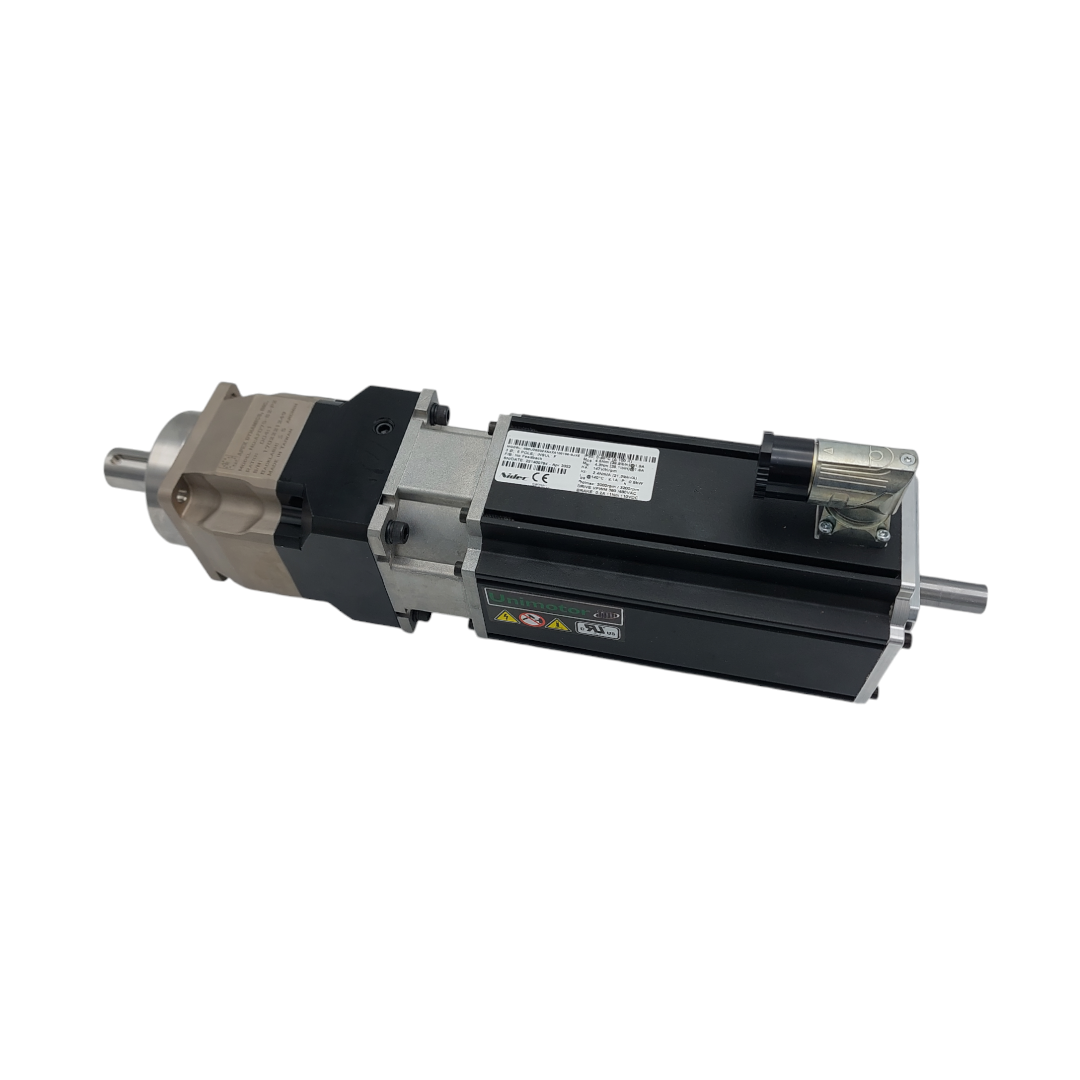

MOTOR + GEAR BOX 24VDC
4CB68485
4CB68485
SPRING OOS 0.8 MM
4CB71212
4CB71212
SPRING OS 0.8 MM
4CB71213
4CB71213
SPRING OOS 0.5 MM
4CB71412
4CB71412
SPRING OS 0.5 MM
4CB71413
4CB71413
FIXING BAR L 1110 MM
4CB71517
4CB71517
ROTARY CONNECTION W HARDW
4CB82833
4CB82833
FREQUENCY CONVERTER
4CB86781
4CB86781
No sales to sanctionned countries
