Search for your part number here:

Suitable for SP 104 ER

OPTIC FIBER
4CB01048
L = 250 MM

PUMP UNIT
4CB01089

VANE KIT (4 PCS)
4CB01099

AIR FILTER
4CB01244

AIR FILTER
4CB01247

AIR FILTER
4CB01251

GAS SPRING 200 N
4CB01271

GAS SPRING 200N
4CB01281

END-ROD FEMALE
4CB01381

END-ROD MALE
4CB01387

ROLLER
4CB01504
ID 55 X OD 140 X H 43 MM

SUCKER WASHER
4CB01506
D 32 / 14 X 0.5 MM

SUCKER WASHER
4CB01507
D 38 / 12 X 1 MM

SUCKER WASHER
4CB01509
D 42 / 15 X 1 MM

SUCTION CUP (CORRUGATED)
4CB01916
D 46 / 17 X 9,5 MM

BELT (FLAT), SET OF 2 PCS
4CB02519
60 / 1,9 X 2345 MM

BELT (FLAT), SET OF 2 PCS
4CB02520
1,9 X 60 X 2620 MM

GRIPPER BAR
4CB02558

FIXING BAR 1049 MM
4CB02624

FIXING BAR 739 MM
4CB02628

TELESCOPIC BAR 292 - 421 MM
4CB02632

TELESCOPIC BAR 447 - 731MM
4CB02634

TELESCOPIC BAR 588 - 913MM
4CB02635

BRUSH WITH BRASS BRISTLES
4CB02640
45 X 25 X 15 MM \| 18 MM

SHELL WITH HOLDERS
4CB02667

CHAIN SET GRIPPER BAR (18PCS)
4CB02679
We recommend replacing the chain pins (36x) when replacing the chain set.

GRIPPER, STATIONARY
4CB02691

GRIPPER, MOVABLE
4CB02692
Difference with 4CB03072: contact us

CHAIN PIN
4CB02693
D 10,17 X 57,5 MM

FILTER (AIR) PLATEN
4CB02727
513 / 280 X 30 MM

APRON (WASTE REMOVAL)
4CB02753

CROSS PIN
4CB02762

MOUNTING BUSHING
4CB02763

SPRING
4CB02764
D=2. 8 DM= 12 L= 33. 9

MOUNTING BUSHING
4CB02765

SHAFT SUPPORT BUSHING
4CB02766

LEFT LEVER (OS)
4CB02768

O.S. HOLDER
4CB02777

O.O.S. HOLDER
4CB02778

MAKEREADY PROTECTION PLATE
4CB02789

COMPENSATING PLATE
4CB02802
1076 X 736 X 4,0 MM Approx. 50-52 HRC

CUTTING PLATE
4CB02815
1076 X 736 X 5,0 MM

LOWER STRIPPING FRAME
4CB02836

STRIPPING PIN 15/4 MM (20X)
4CB02855
Aluminium alternative is 4CB07482

STRIPPING PIN D 11 / 4 MM
4CB02857
Aluminium alternative is 4CB07483

PIN HOLDER 5 HOLES (10X)
4CB02870

PIN HOLDER 3 HOLES (10X)
4CB02871

EXCENTER D 8 MM TORX
4CB02904

EXCENTER (POWER FLO)
4CB02905

CHAIN LINK -0,5 MM
4CB03029

CHAIN LINK + 0,5 MM
4CB03039

RIGHT LEVER (OOS)
4CB03098

AXLE
4CB03099

NUT
4CB03104

SPRAG CLUTCH
4CB03176

BRUSH
4CB03193
L = 530 MM

BELLOWS
4CB03233
D 50 / 76 X 200 MM

HUB
4CB03258

BRAKE LINING REPAIR KIT
4CB03260

FASTENING AXLE
4CB03280

BRUSH (ROTARY)
4CB03318
D 80 / 30 X 20 MM (soft)

BRUSH (ROTARY)
4CB03319
OD 80 / ID32 X 20 / 28 MM (MEDIUM)

FRONT LAY
4CB03330

ANGULAR GEAR
4CB03337
Z 20 / D 8 MM

SPRING (SHEET SEPARATOR)
4CB03400
0.5 mm

SPRING (SHEET SEPARATOR)
4CB03401
L = 83,5 MM

CURTAIN (DELIVERY)
4CB03693

CURTAIN
4CB03731

THIN CUTTING PLATES 1 MM
4CB03826
18 HRC Minimum order quantity 9 pcs.

THIN CUTTING PLATES 1 MM
4CB03892
35 HRC Minimum order quantity 10 pcs.

BUSHING (GLISSA)
4CB04219
12 / 8.25 X 18 MM

WASHER
4CB04258

LAMP HOLDER 12W (240V)
4CB04456

FILTER (COOLING UNIT)
4CB04496
615 X 192 X 8 MM

STOP SCREW
4CB04773

DIRECTIONAL VALVE (LUCIFER)
4CB04788

SPRING (COMPRESSION)
4CB04822
DM 7.7 / 1 X 27 MM

SPRING (COMPRESSION)
4CB04832
DM 9.5 / 1.5 X 20.7 MM

SUPPORTING PLATE (DIECUTTING)
4CB05057
1080 x 750 x 22,65 MM Made of epoxy-resin, non-equipped

BRUSH (LUBRICATION)
4CB05066

UPPER STRIPPING QL FRAME
4CB05141

SIDE LAY (BLADE)
4CB05283
For LH side

POWER FLOW (CLUTCH)
4CB05494

UNIVERSAL JOINT (FEEDER)
4CB05505

UNIVERSAL JOINT (FEEDER)
4CB05508

END-ROD FEMALE
4CB05517
M16 / D 16MM

GAS STRUT 50N
4CB05646

GAS STRUT 300N
4CB05651

GAS STRUT 200N
4CB05652

CAM ROLLER
4CB05783

NEEDLE CAM ROLLER
4CB05788

SINGLE ROW BALL BEARING
4CB05928

PALLET
4CB06616
1061 X 760 X 173 MM

AXLE (POWER FLO)
4CB06683

CARBON VANE KIT (7 PCS)
4CB06749

GRIPPER BAR BODY
4CB07176

DRIVE SHAFT
4CB07177

SMALL PLATE (GRIPPER BAR)
4CB07178

FASTENER GRIPPER BAR O.O.S.
4CB07181

FASTENER GRIPPER BAR O.S.
4CB07182

LEVER
4CB07202

STRIPPING PIN ALU 15/4 MM
4CB07482

STRIPPING PIN ALU 10/4 MM
4CB07483
Steel version is 4CB58662

MICROMETRIC ADJUSTMENT OS
4CB07518
Standard version

MICROMETRIC ADJUSTMENT OOS
4CB07520

CUBE I LCD
4CB07562

PILE TRAY MOTOR RETROFIT
4CB07566

SMALL PLATE
4CB07568

SMALL PLATE
4CB07569

GUIDE
4CB07570
TL 114 MM

SIDE LAY (BLADE)
4CB07572
For RH side

SPRING GUIDE
4CB07574

LEVER
4CB07575

STOP
4CB07576

LEVER
4CB07578

ROLLER
4CB07579

SUCTION CUP
4CB07585
Lifting cup

SUCTION CUP
4CB07587
Transport cup

SEGMENT
4CB07590

SPROCKET WHEEL
4CB07612

SPROCKET WHEEL
4CB07616

TOOTHED SEGMENT
4CB07629
SN 0094 / +

AXLE
4CB07704

CORNER PIECE
4CB07709

STOP
4CB07715

AXLE
4CB07728

DISTANCE PIECE
4CB07739

STEEL BUSHING
4CB07740
12 / 8,1 X 16 MM

CAM ROLLER
4CB07767

SLIDING SHOE
4CB07829

SHAFT
4CB07842

BUSHING
4CB08033

CHASE CHANGER
4CB08040
Elevation is 4CB08044

CHASE CHANGER ELEVATION
4CB08044

UPPER BLANKING QL FRAME
4CB08048
Set adaptation parts for machine is 4CB57994

TIGHTENER
4CB11017

LEVER ARM
4CB13489

CENTERING PIECE
4CB13511

STOP
4CB13544

BLOCK
4CB13584

SHEET HOLDER
4CB13749
L = 104 CM

CLAMPING BAR
4CB13836

CENTERING PIECE
4CB13837

AXLE
4CB13842

STOP
4CB13843

EJECTOR
4CB14483
1011 X 95 X 2,05 MM

SUPPORT
4CB14691

RAKE
4CB15150
TL = 102 CM

KNIFE
4CB15175

GUIDING
4CB15332
1085 X 30 X 21 MM

PULL ROD
4CB15435
305 X 50 X 15 MM

PULL ROD
4CB15436
305 X 50 X 15 MM

PULL ROD
4CB15438
720 X 50 X 15 MM

PULL ROD
4CB15440
720 X 50 X 15 MM

CENTERING PIECE
4CB15882

SUCTION CUP
4CB16952

SUCTION CUP
4CB16953

SLIDING PIECE
4CB17114
270 X 70 X 10 MM

BLOCK
4CB17115

NUT
4CB17117
L 54 / D 20

GUIDE
4CB17118
L 260 MM

LEVER
4CB17169

LEVER
4CB17170

CAM SHAFT
4CB17812

ROTOR
4CB17965

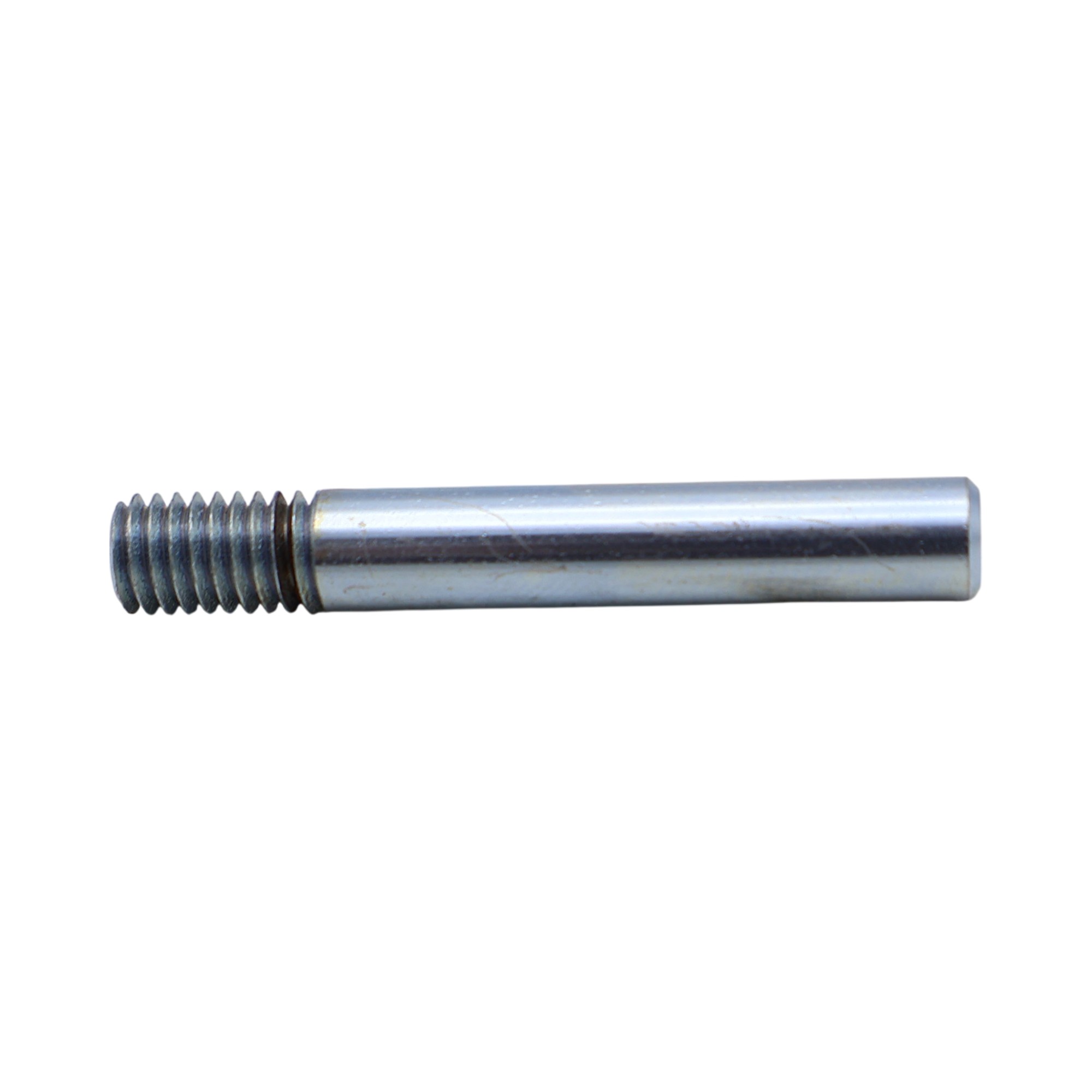

ROD
4CB26685

UPPER STRIPPING FRAME
4CB28341

SHAFT
4CB31096

WASHER
4CB32446

MICROMETRIC ADJUSTER OOS
4CB355572
"Pull & release" version, contact us for more info

ROLLER
4CB35984

PINION
4CB35999

TERMINAL
4CB36541

LEVER
4CB37449

CENTERING PIECE
4CB38659

LEVER
4CB44094

SUPPORT
4CB44115

SUPPORT
4CB44116

SCREW
4CB44933

SCREW
4CB44934

WASHER
4CB48428
D 6,1 / 16 X 2 MM

AXLE
4CB51093
D 10 X 21,8 MM

STER SCREW
4CB51881

STER SCREW
4CB52001

PULL-OFF SPRING
4CB52543

SPRING
4CB52571

PULL-OFF SPRING
4CB52659

CHAIN
4CB53903

CONNECTING ROD BIG END
4CB54165

NEEDLE CAM ROLLER
4CB54565

CAM ROLLER
4CB54628

SPRING
4CB54686

GAS SPRING 200N
4CB54689

ROLLER
4CB55605

PNEUMATIC JACK
4CB55632

PNEUMATIC CYLINDER
4CB55645

PNEUMATIC LIFTER
4CB55653

PNEUMATIC LIFTER
4CB55740

ELECTRIC JACK 24 VDC
4CB57457
Stroke = 25 MM

PIN HOLDER 7 HOLES (10X)
4CB57776
Set of 10 pcs

LIMIT SWITCH
4CB58369

PILE TRAY MOTOR RETROFIT
4CB58388

STRIPPING PIN STEEL 10/4 MM
4CB58662
Alumunium version is 4CB07483

PIN HOLDER 9 HOLES (10X)
4CB58771
Set of 10 pcs

PIN HOLDER 12 HOLES (10X)
4CB58772

STATOR
4CB60933

PALLET
4CB62133

DISTRIBUTOR
4CB66994

OIL DISTRIBUTOR 2 OUTLETS
4CB67249

DISTRIBUTOR ASSEMBLY
4CB71466

FIXING BAR 1049 MM
4CB71515

LOWER COUNTERPLATE COMPL.
4CB84765

LAMP 120V 7W
4CB87678
