Suitable for SPERIA 106 E

SENSOR (BALLUFF) PROXIMITY
4CB01024

PHOTOCELL
4CB01027

OPTIC FIBER
4CB01048
L = 250 MM

LIMIT SWITCH
4CB01055

GAS SPRING 200 N
4CB01271

VALVE
4CB01300

END-ROD FEMALE
4CB01377

END-ROD MALE
4CB01383

END-ROD MALE
4CB01385

END-ROD MALE, LH THREAD
4CB01388
M16 X 2 / D 16 MM

ROLLER
4CB01504
ID 55 X OD 140 X H 43 MM

SUCKER WASHER
4CB01506
D 32 / 14 X 0.5 MM

SUCKER WASHER
4CB01507
D 38 / 12 X 1 MM

SUCKER WASHER
4CB01509
D 42 / 15 X 1 MM

SINGLE ROW BALL BEARING
4CB01526

SINGLE ROW BALL BEARING
4CB01598

ROLLER
4CB01605

SUCTION CUP (CORRUGATED)
4CB01916
D 46 / 17 X 9,5 MM

FLAT BELT (SET OF 2)
4CB02518
15/1.9 X 435 MM

BELT (FLAT), SET OF 2 PCS
4CB02519
60 / 1,9 X 2345 MM

BELT (FLAT), SET OF 2 PCS
4CB02520
1,9 X 60 X 2620 MM

STRIPPING PIN 4 X 97 MM
4CB02526

UPPER STRIPPING PIN D 2 MM
4CB02527
Set of 100 pcs

UPPER STRIPPING PIN D 3 MM
4CB02528
Set of 100 pcs

UPPER STRIP PIN 5 MM, 100 X
4CB02529
Set of 100 pcs

UPPER STRIPPING PIN D 10 MM
4CB02534
Set of 100 pcs

GRIPPER BAR
4CB02559

CLAMP
4CB02607

CLAMP
4CB02608

FIXING BAR 1078 MM
4CB02625

FIXING BAR 739 MM
4CB02628

TELESCOPIC BAR 292 - 421 MM
4CB02632

TELESCOPIC BAR 447 - 731MM
4CB02634

TELESCOPIC BAR 588 - 913MM
4CB02635

BRUSH WITH BRASS BRISTLES
4CB02640
45 X 25 X 15 MM \| 18 MM

CHAIN SET GRIPPER BAR (14PCS)
4CB02648
We recommend replacing the chain pins (28x) when replacing the chain set.

SHELL WITH HOLDERS
4CB02667

GRIPPER, STATIONARY
4CB02691

GRIPPER, MOVABLE
4CB02692
Difference with 4CB03072: contact us

CHAIN PIN
4CB02693
D 10,17 X 57,5 MM

FILTER (AIR) PLATEN
4CB02727
513 / 280 X 30 MM

TORQUE SPANNER
4CB02728

CLUTCH DISC
4CB02736

LEVER
4CB02760

CROSS PIN
4CB02762

MOUNTING BUSHING
4CB02763

SPRING
4CB02764
D=2. 8 DM= 12 L= 33. 9

MOUNTING BUSHING
4CB02765

SHAFT SUPPORT BUSHING
4CB02766

LEFT LEVER (OS)
4CB02768

O.S. HOLDER
4CB02777

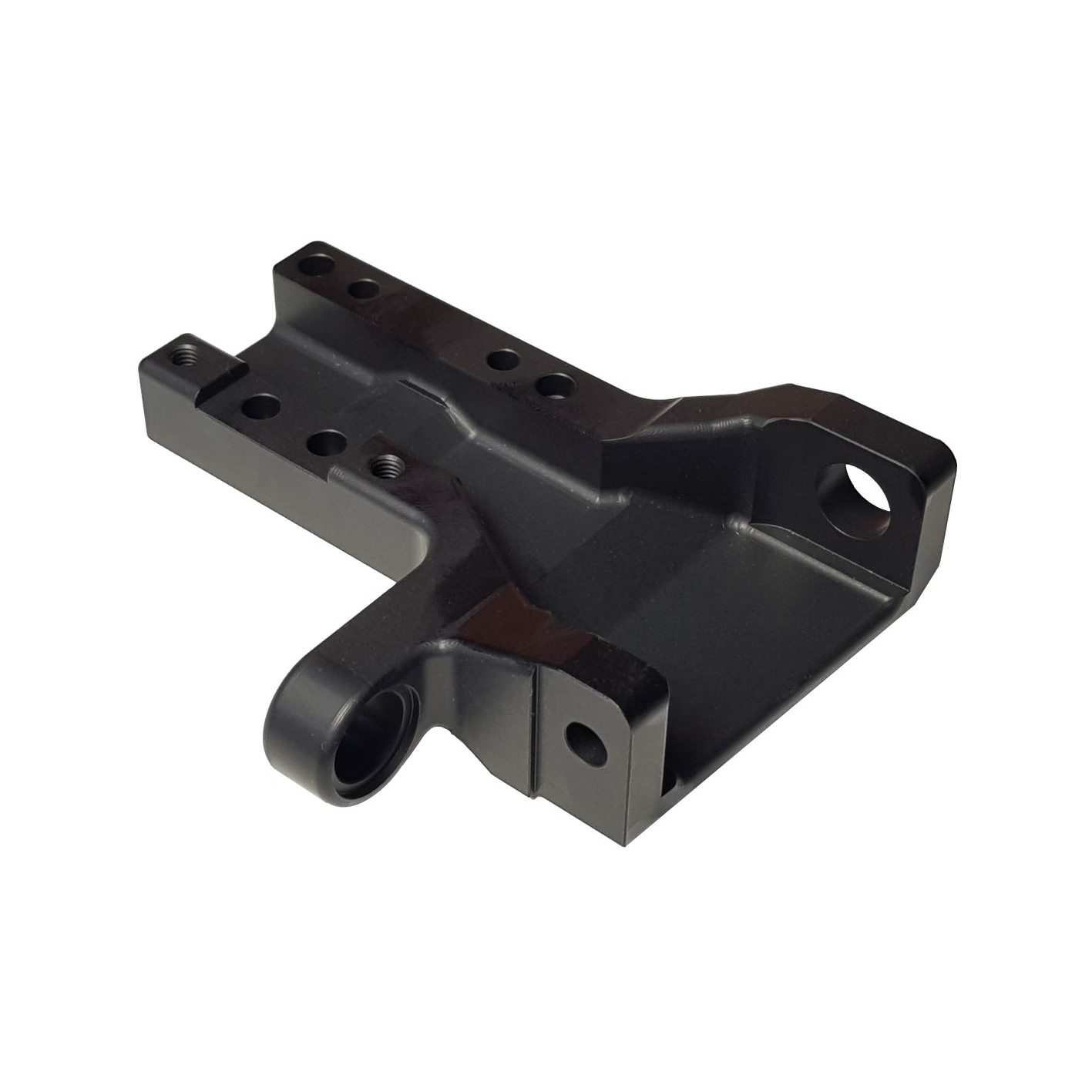

O.O.S. HOLDER
4CB02778

MEMBRANE
4CB02781

MAKEREADY PROTECTION PLATE
4CB02790
1110 X 740 X 1 MM

COMPENSATING PLATE
4CB02803
1096 x 736 x 4 mm

CUTTING PLATE 50 HRC
4CB02816
1096 X 736 X 5 MM

UPPER STRIPPING FRAME
4CB02833

LOWER STRIPPING FRAME
4CB02837

STRIPPING PIN D3MM (100PC)
4CB02852
Set of 100 pcs L = 50 MM

STRIPPING PIN D 5MM
4CB02853
Set of 100 pcs.

STRIPPING PIN D 10 MM (100X)
4CB02854

STRIPPING PIN 15/4 MM (20X)
4CB02855
Aluminium alternative is 4CB07482

STRIPPING PIN D 11 / 4 MM
4CB02857
Aluminium alternative is 4CB07483

PIN HOLDER 5 HOLES (10X)
4CB02870

PIN HOLDER 3 HOLES (10X)
4CB02871

DRIVE RH
4CB02901

DRIVE LH
4CB02902

EXCENTER D 8 MM TORX
4CB02904

EXCENTER (POWER FLO)
4CB02905

FILTER (AIR) PLATEN O.O.S
4CB02909
515 / 515 X 57 MM

T-NUT M6 (SET OF 100 PCS.)
4CB02958

CENTERING BLOCK
4CB02966

CLAMPING JAW
4CB02973

VULCANISED ROLLER (INFEED)
4CB02985
D 65 / 28 X 25 MM

GUIDE SIDE LAY
4CB02993

FOAM PRESSER, SET OF 5
4CB03008

SMALL BRUSH
4CB03009
L = 82 mm

CHAIN LINK -0,5 MM
4CB03029

CHAIN LINK + 0,5 MM
4CB03039

RIGHT LEVER (OOS)
4CB03098

AXLE
4CB03099

NUT
4CB03104

COMPRESSION SPRING
4CB03117
D=1 DM= 10 L= 28 MM

CLAMP SCREW
4CB03154
M8 X 25 MM

DISTANCE PIECE
4CB03169

TOOL HOLDER BAR PART
4CB03172

SPRAG CLUTCH
4CB03176

CLAMP
4CB03184
D 6,25 mm

CLAMP
4CB03185
M6

BRUSH (ROTARY LUBRICATION)
4CB03189
D 76 / 12 X 7 MM

BRUSH (SOFT)
4CB03194
L = 540 MM

LIP SEAL (MOVABLE PLATEN)
4CB03204
L 1120 MM

LIP SEAL (MOVABLE PLATEN)
4CB03209
L = 540 MM

LIP SEAL (MOVABLE PLATEN)
4CB03210
L = 1135 MM

BELLOWS
4CB03233
D 50 / 76 X 200 MM

PIN HOLDER 3 HOLE
4CB03253
L = 45 MM

PIN HOLDER 5 HOLE
4CB03254
L = 77 MM

SPRING
4CB03255

SCREW
4CB03256

HUB
4CB03258

BRAKE LINING REPAIR KIT
4CB03260

PRESSURE ROLLER
4CB03315

BRUSH (ROTARY)
4CB03316
D 60 / 10 X 20 MM (0,15 MM)

BRUSH (ROTARY)
4CB03317
D 60 / 10 X 20 MM (0,30 MM)

BRUSH (ROTARY)
4CB03318
D 80 / 30 X 20 MM (soft)

BRUSH (ROTARY)
4CB03319
OD 80 / ID32 X 20 / 28 MM (MEDIUM)

BRUSH (ROTARY)
4CB03320
D 80 / 32 X 20 MM (Hard)

FRONT LAY
4CB03330

ANGULAR GEAR
4CB03337
Z 20 / D 8 MM

ROTARY CONNECTION
4CB03377
D 28,5 MM G14

SPRING (SHEET SEPARATOR)
4CB03398
0.3 MM

SPRING (SHEET SEPARATOR)
4CB03400
0.5 mm

TOMMY BAR
4CB03593
D 6 X 130 MM

NUT (DOVETAIL)
4CB04214
M10 X 20 MM

BUSHING (GLISSA)
4CB04219
12 / 8.25 X 18 MM

BUSHING (GLISSA)
4CB04220
D 14 / 10 X 10 MM

WASHER
4CB04258

WASHER
4CB04267
D 6.40 / 18 X 1.60 MM

SPROCKET WHEEL
4CB04299
Z 15 / DI 32

HANDLE
4CB04317
M8 X 25 MM

HANDLE M8 X 30 MM
4CB04318

HANDLE M8 X 40MM
4CB04319

HANDLE M8 X 60 MM
4CB04321

HANDLE (JACCARD) M8
4CB04330

STOP SCREW
4CB04773

SPRING (COMPRESSION)
4CB04822
DM 7.7 / 1 X 27 MM

SPRING (COMPRESSION)
4CB04832
DM 9.5 / 1.5 X 20.7 MM

SPRING (COMPRESSION)
4CB04836

SPRING (PULL OFF)
4CB04864
D 12 / 2.5 x 121.3 MM

SPRING (PULL OFF)
4CB04884

UPPER STRIPPING QL FRAME
4CB05141

SIDE LAY (BLADE)
4CB05283
For LH side

POWER FLOW (CLUTCH)
4CB05494

UNIVERSAL JOINT (FEEDER)
4CB05508

ROLLER
4CB05535
30 / 45 X 20 MM NKI 30/20

ROLLER
4CB05613

ROLLER
4CB05618
15 / 28 X 14 MM

ROLLER
4CB05619
17 / 30 X 14 MM

ROLLER
4CB05620
20 / 37 X 18 MM NA 4904.2RS

ROLLER
4CB05621

ROLLER
4CB05622
30 / 47 x 18 mm NA 4906.2RS

CAM ROLLER
4CB05637

GAS STRUT
4CB05650

GAS STRUT 300N
4CB05651

GAS STRUT 200N
4CB05652

REFLECTOR
4CB05730

POWER SUPPLY
4CB05761
112 W / +5VDC / +-15VDC

CAM ROLLER
4CB05775

CAM ROLLER
4CB05779
NATR 12 PP

CAM ROLLER
4CB05783

NEEDLE CAM ROLLER
4CB05788

SINGLE ROW BALL BEARING
4CB05851

SINGLE ROW BALL BEARING
4CB05878

SINGLE ROW BALL BEARING
4CB05928

SINGLE ROW BALL BEARING
4CB05950
55 / 100 X 21 MM

SINGLE ROW BALL BEARING
4CB05957
60 / 110 X 22 MM

SINGLE ROW BALL BEARING
4CB06031
60 / 130 X 31 MM

SELF ALIGNING ROLLER BEARING
4CB06188

SINGLE ROW BALL BEARING
4CB06324

SINGLE ROW BALL BEARING
4CB06331

PALLET
4CB06616
1061 X 760 X 173 MM

AXLE (POWER FLO)
4CB06683

FEEDER BRUSH
4CB06687
L = 110 mm

CARBON VANE KIT (7 PCS)
4CB06751

CARBON VANE KIT (6 PCS)
4CB06753

FILTER
4CB06754

FILTER
4CB06786

SMALL PLATE (GRIPPER BAR)
4CB07178

GRIPPER BAR SHELL
4CB07179

DRIVE SHAFT
4CB07180

FASTENER GRIPPER BAR O.O.S.
4CB07181

FASTENER GRIPPER BAR O.S.
4CB07182

LEVER
4CB07202

BUFFER
4CB07324

FLAT BELT
4CB07362
3 / 15 X 665 MM

RING
4CB07408

STRIPPING PIN ALU 15/4 MM
4CB07482

STRIPPING PIN ALU 10/4 MM
4CB07483
Steel version is 4CB58662

APRON
4CB07497

PIN HOLDER 7 HOLE
4CB07503

MICROMETRIC ADJUSTMENT OS
4CB07518
Standard version

MICROMETRIC ADJUSTMENT OOS
4CB07520

CYLINDRICAL SPACER
4CB07544
CYLINDRICAL SPACER D 8.20 / 13 X 7.95 MM

CUBE I LCD
4CB07562

CAM
4CB07567

SMALL PLATE
4CB07568

SMALL PLATE
4CB07569

GUIDE
4CB07570
TL 114 MM

SIDE LAY (BLADE)
4CB07572
For RH side

SPRING GUIDE
4CB07574

LEVER
4CB07575

STOP
4CB07576

LEVER
4CB07578

ROLLER
4CB07579

SUCTION CUP (LIFTING)
4CB07583

SUCTION CUP
4CB07584
Lifting cup

SUCTION CUP
4CB07585
Lifting cup

SUCTION CUP
4CB07586
Transport cup

SUCTION CUP
4CB07587
Transport cup

SEGMENT
4CB07590

PRESSURE BALL
4CB07591

WHEEL
4CB07596
S/N 0025 / ...

DRIVE SIDELAY
4CB07599

TOOTHED SEGMENT
4CB07629
SN 0094 / +

AIR FILTER
4CB07652

AXLE
4CB07704

SPRING
4CB07705

SUPPORT
4CB07706

CLAMP
4CB07707

CORNER PIECE
4CB07709

STOP
4CB07715

AXLE
4CB07728

STEEL BUSHING
4CB07740
12 / 8,1 X 16 MM

COMPRESSION SPRING
4CB07743
D=0. 8 DM= 20 L= 50 MM

COMPRESSION SPRING
4CB07744
D=0. 9 DM= 22 L= 68 MM

BLOCK
4CB07810

CHAIN GUIDE
4CB07826

SLIDING SHOE
4CB07829

SHAFT
4CB07842

COVER
4CB07851

SPRING
4CB07852

STER SCREW
4CB07920

KNURLED NUT M8X11 MM
4CB07922

RUBBER SEAL
4CB08008
d = 67 mm, b1 = 11,3 mm, b = 15,5 mm, c = 6 mm

BUSHING
4CB08033

COMPRESSION SPRING
4CB08124
D=3 DM= 16 L= 60 MM

FLAT SPRING
4CB08129

COMPRESSION SPRING
4CB08130

COMPRESSION SPRING
4CB08131

ARM
4CB08427

ARM
4CB08467

BELL
4CB08650

SIDE LAY
4CB13430

LEVER
4CB13468

STOP
4CB13544

AXLE
4CB13732

CLAMPING BAR
4CB13836

CENTERING PIECE
4CB13837

STOP
4CB13843

SHIM
4CB14456

SUPPORT
4CB14691

GUIDING
4CB15332
1085 X 30 X 21 MM

ROLLER
4CB15652

ROLLER
4CB15662

LEVER
4CB15665

FORK
4CB17080

SLIDING PIECE
4CB17114
270 X 70 X 10 MM

BLOCK
4CB17115

NUT
4CB17117
L 54 / D 20

GUIDE
4CB17118
L 260 MM

SUPPORT
4CB17150

LEVER
4CB17169

LEVER
4CB17170

CROSS PIECE
4CB17171

DISTANCE PIECE
4CB17176

CAM
4CB17730

CAM
4CB17731

CAM
4CB17733

CYLINDER
4CB17734

PULL ROD
4CB17763

LEVER
4CB17769

TABLET
4CB17774

SHAFT
4CB17803
D = 70, L = 150 MM

CAM SHAFT
4CB17812

DEFLECTOR
4CB17828

GUIDE
4CB17896

ROTOR
4CB17965

ROD
4CB18015

CAM
4CB18043

HOOK
4CB18112

CLAMP
4CB18126

AXLE
4CB26435

SLEEVE
4CB26535

COVER
4CB26536

STUD
4CB26569

ROD
4CB26685

RING
4CB26692

ROLLER
4CB26715

CENTERING PIECE
4CB28638

STER SCREW
4CB28750

AXLE
4CB28758

SCREW
4CB28912

AXLE
4CB29364

BLOCK
4CB29366

ROLLER
4CB29378

SUPPORT
4CB31095

SHAFT
4CB31096

SUPPORT
4CB31103

KNIFE
4CB32442

SMALL PLATE
4CB32443

WASHER
4CB32446

PULLEY
4CB35116

ROLLER
4CB35117

FLAT SPRING
4CB35121

BLOCK
4CB35124

PNEUMATIC VALVE
4CB353850

PNEUMATIC VALVE
4CB353851

PRESSURE SWITCH
4CB353852

PNEUMATIC VALVE
4CB353853

PNEUMATIC VALVE
4CB353854

ROLLER
4CB35984

PINION
4CB35999

AXLE
4CB36010

TWO-PIECE RING
4CB36064

BUSHING
4CB36068

CLAMP
4CB36091

SCREW
4CB36324

SMALL PLATE
4CB36330

STOP
4CB36341

PLUMMER-BLOCK
4CB36345

PLUMMER-BLOCK
4CB36346

TERMINAL
4CB36541

SCREW
4CB36549

SCREW
4CB36557

SUPPORT
4CB36747

BLOCK
4CB36750

PLATE
4CB36821

AXLE
4CB37223

STOP
4CB37253

PRESSING DEVICE
4CB37384

SIDE GUIDE BASE OOS
4CB37468

LEVER
4CB37476

ROLLER
4CB37707

BUSHING
4CB37713

CONNECTING PLATE
4CB37718

BLOCK
4CB37778

LEVER
4CB37882

PISTON
4CB37890

ROD
4CB37891

ROLLER
4CB38061

CENTERING PIECE
4CB38659

SCREW
4CB41942

CORNER PIECE
4CB42902

RIM
4CB43189

RIM
4CB43190

DISTANCE PIECE
4CB44024

LEVER
4CB44094

SUPPORT
4CB44115

SUPPORT
4CB44116

CENTERING PIECE
4CB44932

SCREW
4CB44933

SCREW
4CB44934

STER SCREW
4CB46625

SCREW
4CB47927

KNURLED SCREW
4CB48058
M4 X 20 MM

STUD
4CB48172

KNURLED NUT
4CB48345

WASHER
4CB48428
D 6,1 / 16 X 2 MM

WASHER
4CB48444

WASHER
4CB48802

WASHER
4CB48935

WASHER
4CB49023

WASHER
4CB49143

WASHER
4CB49199

SPRING WASHER
4CB49448

SMALL PLATE
4CB49457

DISTANCE PIECE
4CB49744
14 / 9 / 55 MM

DISTANCE PIECE
4CB49812

DISTANCE PIECE
4CB50352

INSERT
4CB51326

AXLE
4CB51386

AXLE
4CB51470
L 50 / D 8 MM

AXLE
4CB51484

AXLE
4CB51510
D12 X 74 MM

STUD
4CB51695

AXLE
4CB51706

AXLE
4CB51764

STER SCREW
4CB51813

STER SCREW
4CB51835

STER SCREW
4CB51881

STER SCREW
4CB51891
L20 / D8j6 X 10 / M6X10 MM

CYLINDER HEAD SCREW
4CB51893

STER SCREW
4CB51945

STER SCREW
4CB52004
16 G6 X 18.7 / M12 X 22.2 MM

STER SCREW
4CB52014
17 J6 X 26 / M12 X 15 MM

STER SCREW
4CB52079
M12/15K6/20G6 / M12 X 15 MM

ROLLER
4CB52090

ROLLER
4CB52124

SPRING
4CB52309

PULL-OFF SPRING
4CB52504
D=1. 7 DM= 18 L= 76. 2 MM

PULL-OFF SPRING
4CB52513

SPRING
4CB52529

PULL-OFF SPRING
4CB52543

SPRING
4CB52571

PULL-OFF SPRING
4CB52573

PULL-OFF SPRING
4CB52586

PULL-OFF SPRING
4CB52590

SPRING ATTACHEMENT
4CB52734

KEY
4CB52818

KEY
4CB52844
58 X 8 X 7 MM

RATCHET WRENCH
4CB52999

COUPLING (SET)
4CB53149

TOOTHED BELT
4CB53357
8M 30 X 840 MM

V-BELTS (SET OF 2)
4CB53443
B 17 / 11 X 1650 MM

FRICTION DISK
4CB53525

SUPPORT
4CB53534

HUB
4CB53539

POWERFLO BRAKE
4CB53572
Repair kit is 4CB03260

CHAIN
4CB53698

CHAIN
4CB53894

CHAIN
4CB53903

GLISSA BUSHING
4CB54045
8 / 12 X 12 MM

GLISSA BUSHING
4CB54096
12 / 16 X 20 MM

CONNECTING ROD BIG END
4CB54165

GLISSA BUSHING
4CB54194
12 / 16 X 12 MM

BUSHING
4CB54308

ROLLER
4CB54468

ANGULAR CONTACT BALL BEARING
4CB54477

RING
4CB54497

CAM ROLLER
4CB54596

CAM ROLLER
4CB54616

CAM ROLLER
4CB54628

ROLLER
4CB54633

CAM ROLLER
4CB54639

SPRING
4CB54686

GAS SPRING 100N
4CB54690

ROLLER BEARING
4CB54762

THRUST BEARING WASHER
4CB54775

TOOTHED PULLEY
4CB55138

SPROCKET WHEEL
4CB55266

SPROCKET WHEEL
4CB55300

PNEUMATIC JACK
4CB55558

PNEUMATIC JACK
4CB55632

PNEUMATIC CYLINDER
4CB55645

END CONTACT
4CB57346

DETECTOR
4CB57378

DISTRIBUTER
4CB57381

PIN HOLDER 7 HOLES (10X)
4CB57776
Set of 10 pcs

BAR
4CB57789

WHEEL
4CB57989

SPROCKET WHEEL
4CB57990

DISTANCE PIECE
4CB58002

CLAMP
4CB58281

BRUSH (MEDIUM)
4CB58582
L = 540 MM

STRIPPING PIN STEEL 10/4 MM
4CB58662
Alumunium version is 4CB07483

PIN HOLDER 9 HOLES (10X)
4CB58771
Set of 10 pcs

PIN HOLDER 12 HOLES (10X)
4CB58772

AXLE
4CB58781

PHOTOELECTRIC CELL SENDER
4CB58807

STRAP
4CB58850

GUIDE
4CB60835

FINGER
4CB60836

STATOR
4CB60933

UPPER CHASE (FIXED BTTM PLT)
4CB61042

UPPER CHASE (QUICK LOCK)
4CB61044

PULL GUIDE CC
4CB61062

HONEYCOMB CHASE
4CB61065

SHEET DOWN-HOLDERS
4CB61193

CAM
4CB61206

KNIFE
4CB61431

BRUSH HOLDER
4CB61433

CABLE
4CB61441

SUPPORT OOS
4CB61511

AXLE
4CB61572

SUPPORT OS
4CB61583

BUFFER ROD
4CB61608
L = 760 MM

CABLE
4CB61621

COUPLING
4CB61808

LINEAR BALL BUSHING
4CB61826

PNEUMATIC JACK
4CB61832

PALLET
4CB62133

COMPLETE LED LIGHT, REPL BY
4CB63267
Contact our customer care team for replacement details

DISTRIBUTOR
4CB66994

SUPPORT
4CB68514

DISTRIBUTOR ASSEMBLY
4CB71466

FIXING BAR L 1078 MM
4CB71516

BOTTOM PLATE
4CB75895

ROTARY CONNECTION W HARDW
4CB82833

CARTRIDGE
4CB85802

CHASE CHANGER
4CB87095

Looking for other SP diecutter or foiler parts?
Contact us
Back to machine types overview
Back to diecutter parts overview
Back to homepage

MV MACHINERY PARTS NV

De Spijker 6

8540 Deerlijk

BE 1010 572 328

+32 474 55 96 07

Kaart België MV Parts

All content © 2016 MV PARTS / Webdesign by Fireflies Artstudio.
Brand name and the logo of MV Parts are trademarks of MV Machinery Parts NV. All other names, numbers and descriptions are used for reference only.

SUPPORT

PRIVACY

CONDITIONS

Radertjes MV Parts

Online Business
