Suitable for SP 102 E

SOLENOID 110 VAC 8W
4CB01000

PHOTOCELL
4CB01027

PHOTO-ELECTRIC CELL
4CB01032

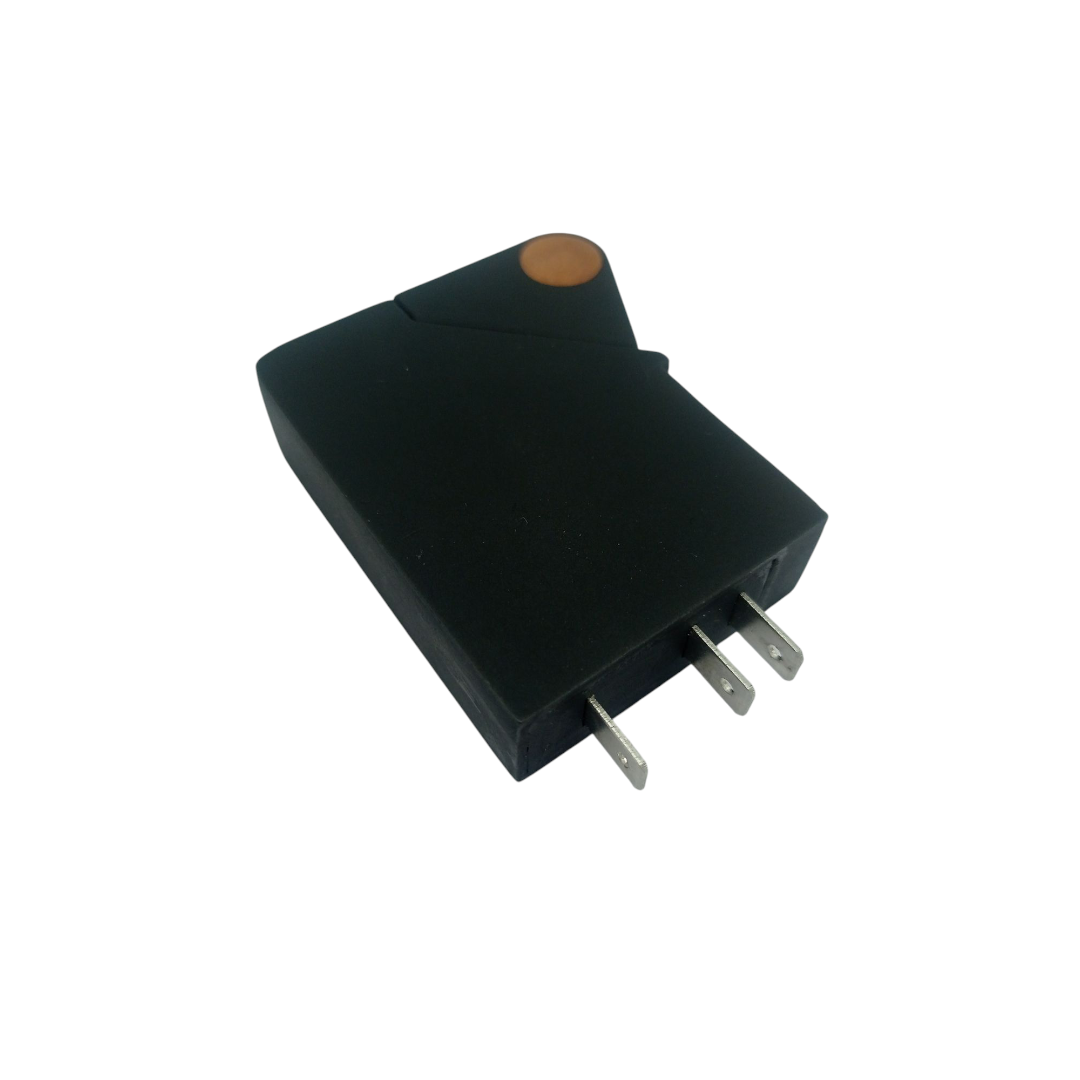

PROXIMITY SWITCH
4CB01046

PUMP UNIT
4CB01089

VANE KIT (4 PCS)
4CB01099

VANE KIT (7 PCS)
4CB01103

RELAY 110VAC
4CB01140

HYDRAULIC PUMP
4CB01239

AIR FILTER
4CB01244

AIR FILTER
4CB01245

AIR FILTER
4CB01247

AIR FILTER
4CB01251

AIR CYLINDER
4CB01257
Currently not in range, contact our customer care team for details

END-ROD FEMALE
4CB01377

END-ROD FEMALE
4CB01380
M16G / D 16MM

END-ROD MALE
4CB01383

END-ROD MALE
4CB01386
M16X2 / ID 16MM

ROLLER
4CB01504
ID 55 X OD 140 X H 43 MM

SUCKER WASHER
4CB01506
D 32 / 14 X 0.5 MM

SUCKER WASHER
4CB01507
D 38 / 12 X 1 MM

SUCKER WASHER
4CB01509
D 42 / 15 X 1 MM

SINGLE ROW BALL BEARING
4CB01526

BEARING
4CB01551

SINGLE ROW BALL BEARING
4CB01598

ROLLER
4CB01605

ROLLER
4CB01606

HX SCKT HEAD CAP SCREW M6X25
4CB01638

BOLT M8x30
4CB01650

SUCTION CUP (CORRUGATED)
4CB01916
D 46 / 17 X 9,5 MM

BELT (FLAT), SET OF 2 PCS
4CB02520
1,9 X 60 X 2620 MM

STRIPPING PIN 4 X 97 MM
4CB02526

UPPER STRIPPING PIN D 2 MM
4CB02527
Set of 100 pcs

UPPER STRIPPING PIN D 3 MM
4CB02528
Set of 100 pcs

UPPER STRIP PIN 5 MM, 100 X
4CB02529
Set of 100 pcs

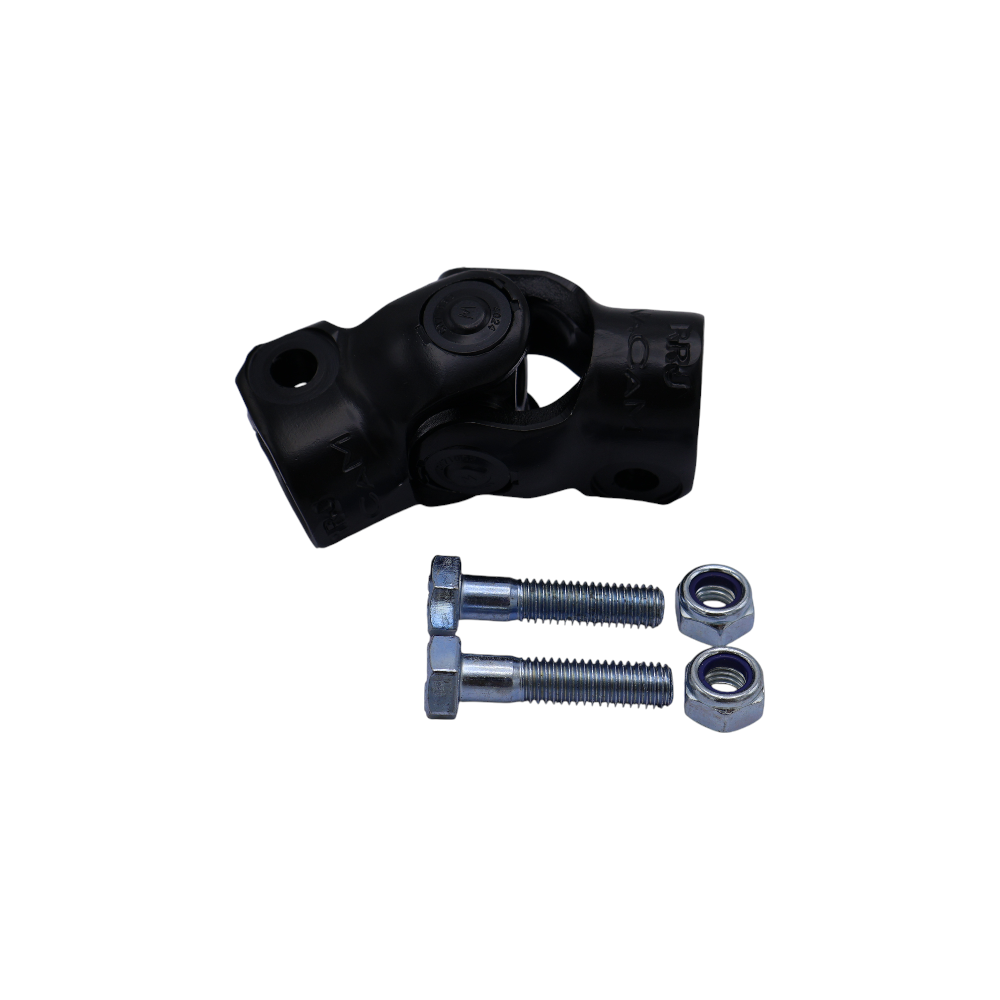

CARDAN DRIVE
4CB02531

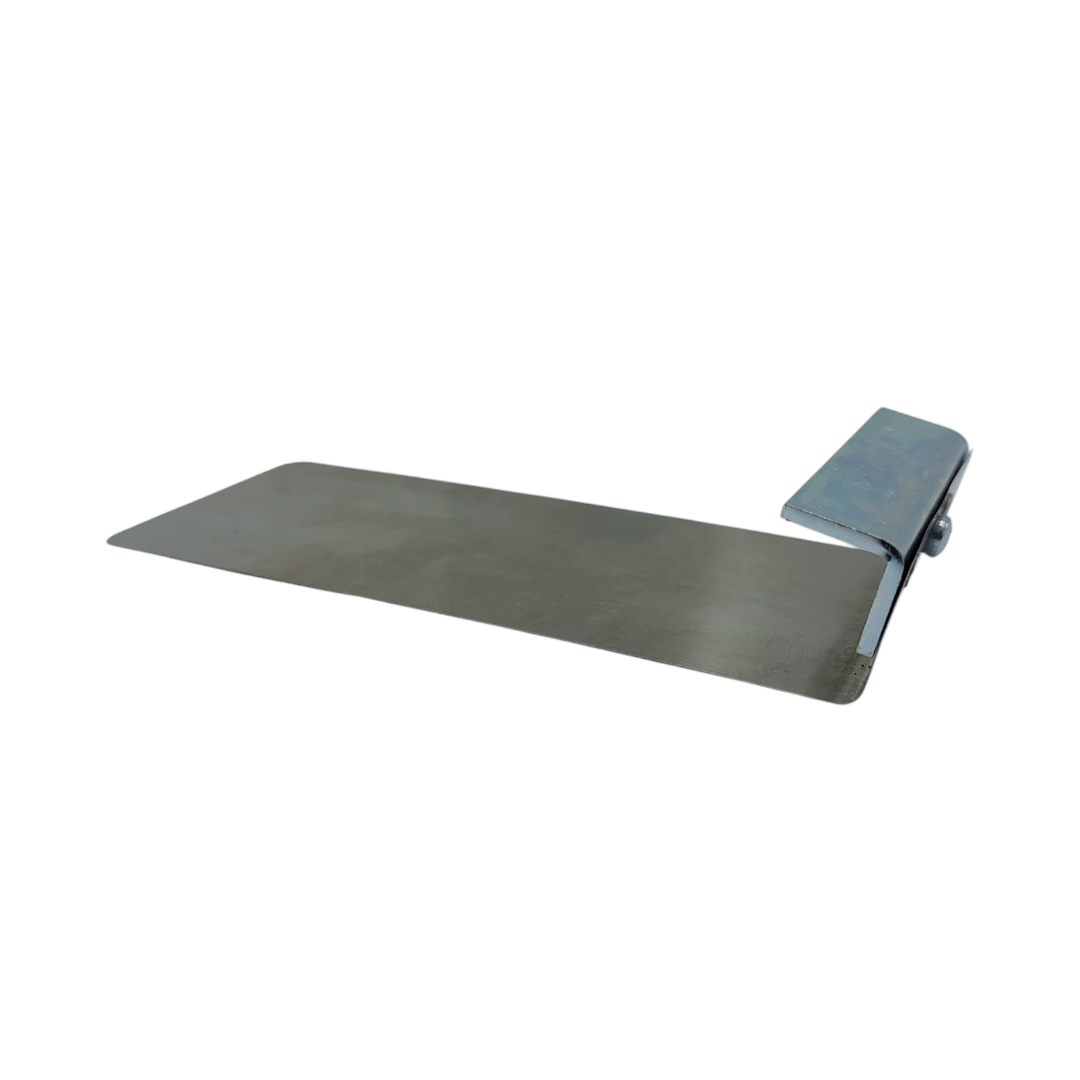

SUPPORTING BLADE 130 MM
4CB02532
SN 0001 / 0023

LIFTING SUCTION CUP
4CB02533

UPPER STRIPPING PIN D 10 MM
4CB02534
Set of 100 pcs

BRUSH 45 MM
4CB02538

SPRING (FLAT SEPARATOR)
4CB02542
15 / 42 X 0.1 MM

CARRIER SUCTION CUP
4CB02543
D 36 / D 16 MM Carrier only is 4CB02545

CARRIER SUCTION CUP
4CB02545
D 36 / D16 mm D 36 / D 25 mm is 4CB02546

GRIPPER BAR
4CB02555

CLAMP
4CB02607

CLAMP
4CB02608

FIXING BAR 1049 MM
4CB02624

FIXING BAR 739 MM
4CB02628

TELESCOPIC BAR 292 - 421 MM
4CB02632

TELESCOPIC BAR 447 - 731MM
4CB02634

TELESCOPIC BAR 588 - 913MM
4CB02635

BRUSH WITH BRASS BRISTLES
4CB02640
45 X 25 X 15 MM \| 18 MM

CHAIN SET GRIPPER BAR (14PCS)
4CB02648
We recommend replacing the chain pins (28x) when replacing the chain set.

SHELL WITH END PIECES
4CB02670

FILTER (AIR) PLATEN
4CB02727
513 / 280 X 30 MM

CLUTCH DISC
4CB02736

APRON (NON-STOP)
4CB02739

MEMBRANE
4CB02781

MAKEREADY PROTECTION PLATE
4CB02786
1088 X 760 X 1 MM

MAKEREADY PROTECTION PLATE
4CB02787
1088 X 760 X 2 MM

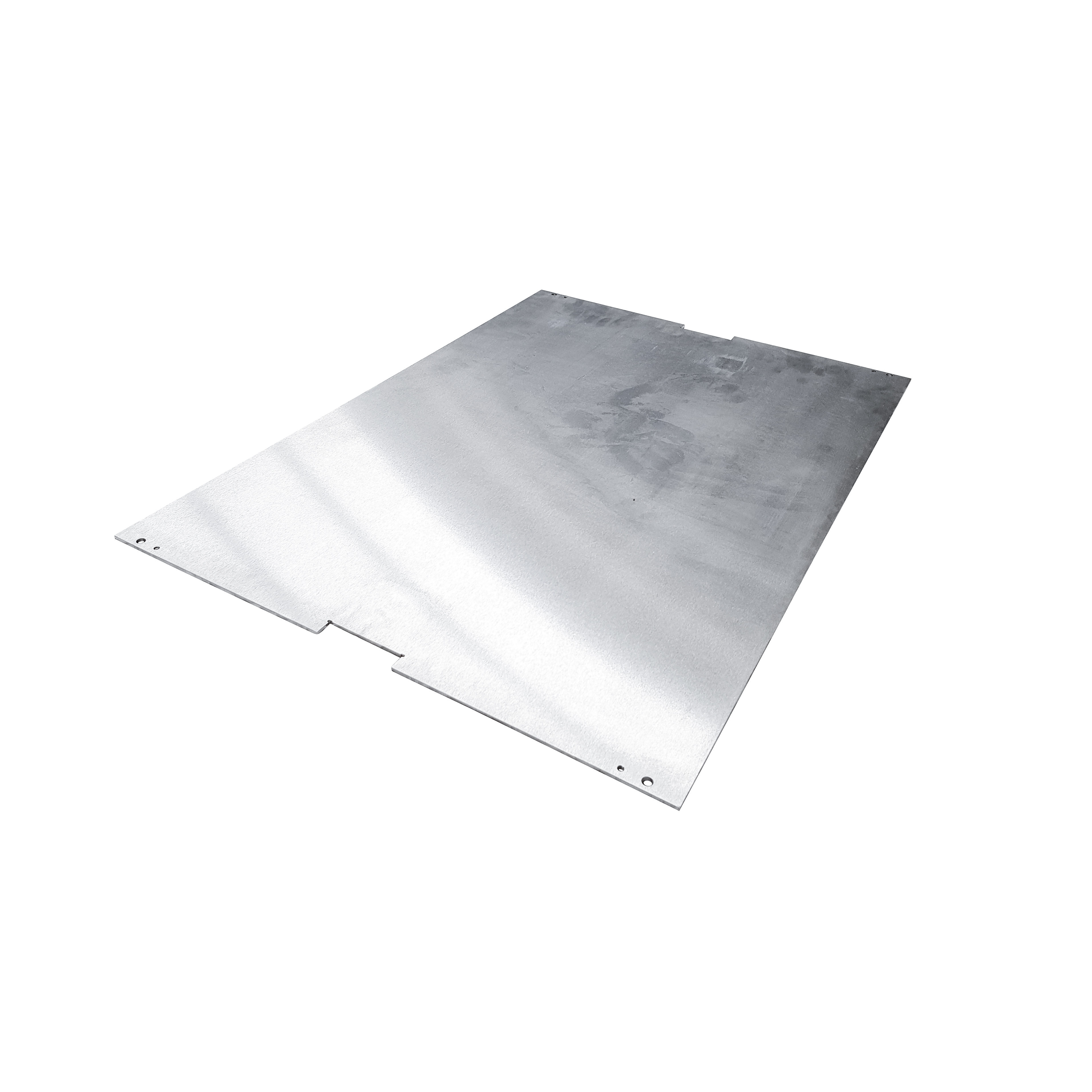

COMPENSATING PLATE 3MM
4CB02798
1040 X 720 X 3 MM

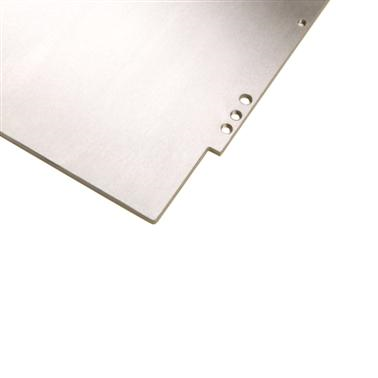

CUTTING PLATE 4MM
4CB02811
1040 X 720 X 4,0 MM / 48 HRC

CLAMP, SET OF 6 PCS.
4CB02840

QUICK-LOCK STRIPPER
4CB02841
D 3 MM, SET OF 10 PCS

QUICK-LOCK STRIPPER
4CB02842
D 6 MM, SET OF 10 PCS

QUICK-LOCK STRIPPER
4CB02843
8 X 30 MM, SET OF 10 PCS

PIN HOLDER 5 HOLES (10X)
4CB02870

PIN HOLDER 3 HOLES (10X)
4CB02871

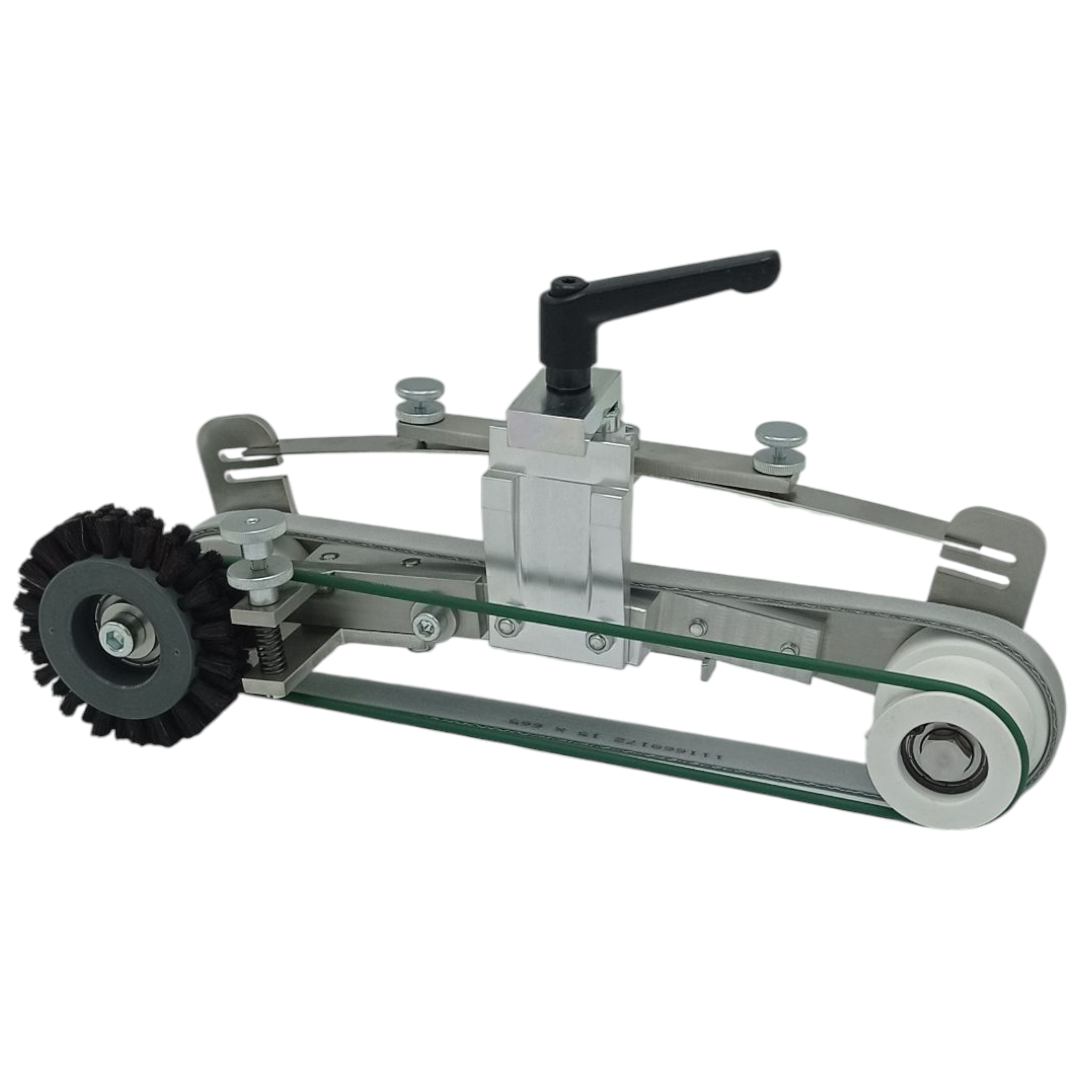

DRIVE RH
4CB02901

DRIVE LH
4CB02902

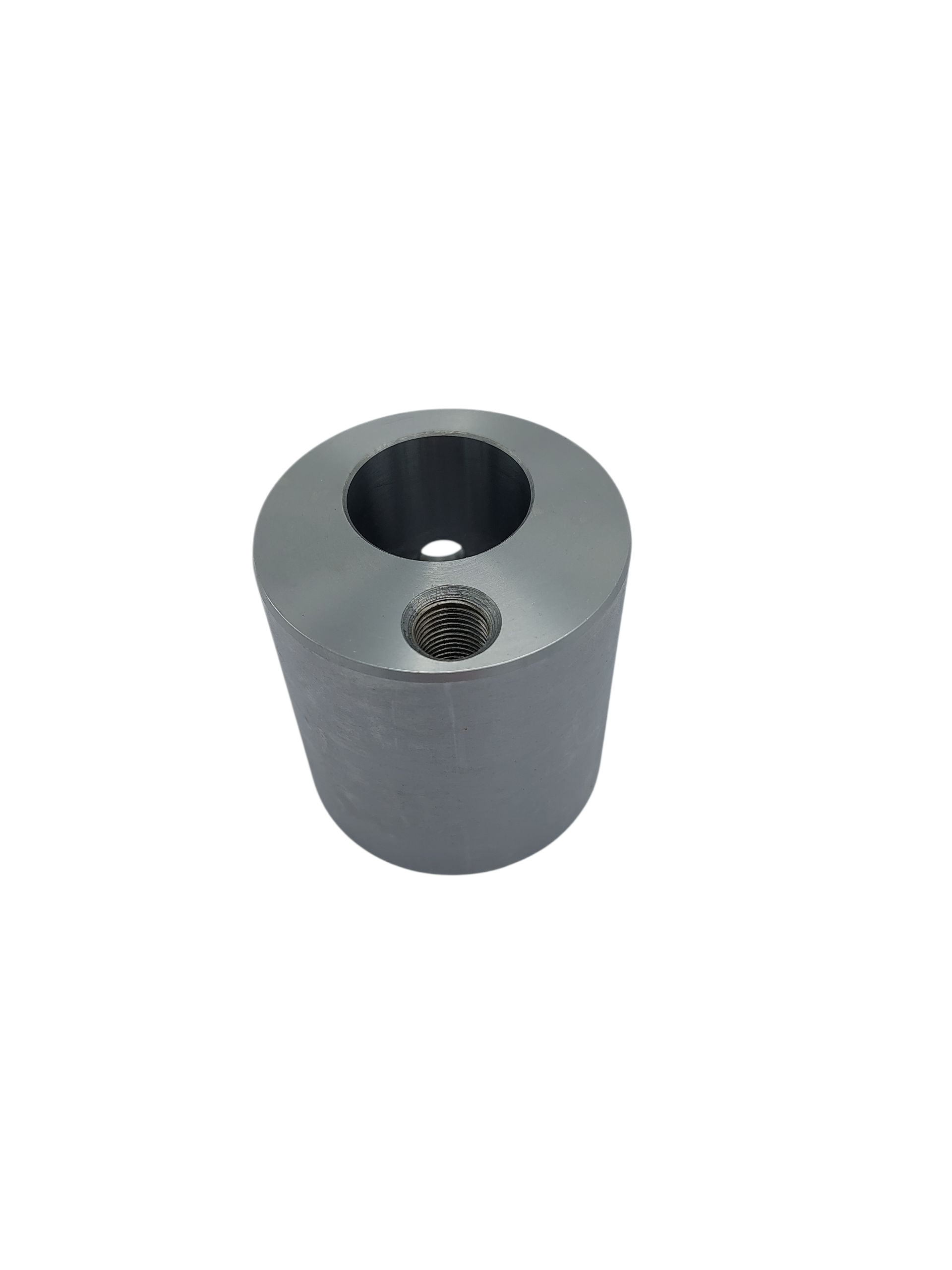

EXCENTER (POWER FLO)
4CB02905

T-NUT M8 (SET OF 100 PCS.)
4CB02959

VULCANISED ROLLER (INFEED)
4CB02985
D 65 / 28 X 25 MM

GUIDE SIDE LAY
4CB02993

FOAM PRESSER, SET OF 5
4CB03008

SMALL BRUSH
4CB03009
L = 82 mm

CHAIN LINK -0,5 MM
4CB03029

CHAIN LINK + 0,5 MM
4CB03039

GRIPPER SPRING
4CB03070
S/N 033 and 035-041 --> Difference with 4CB03287: contact us

CENTERING PIECE
4CB03073

FLAT SPRING
4CB03085

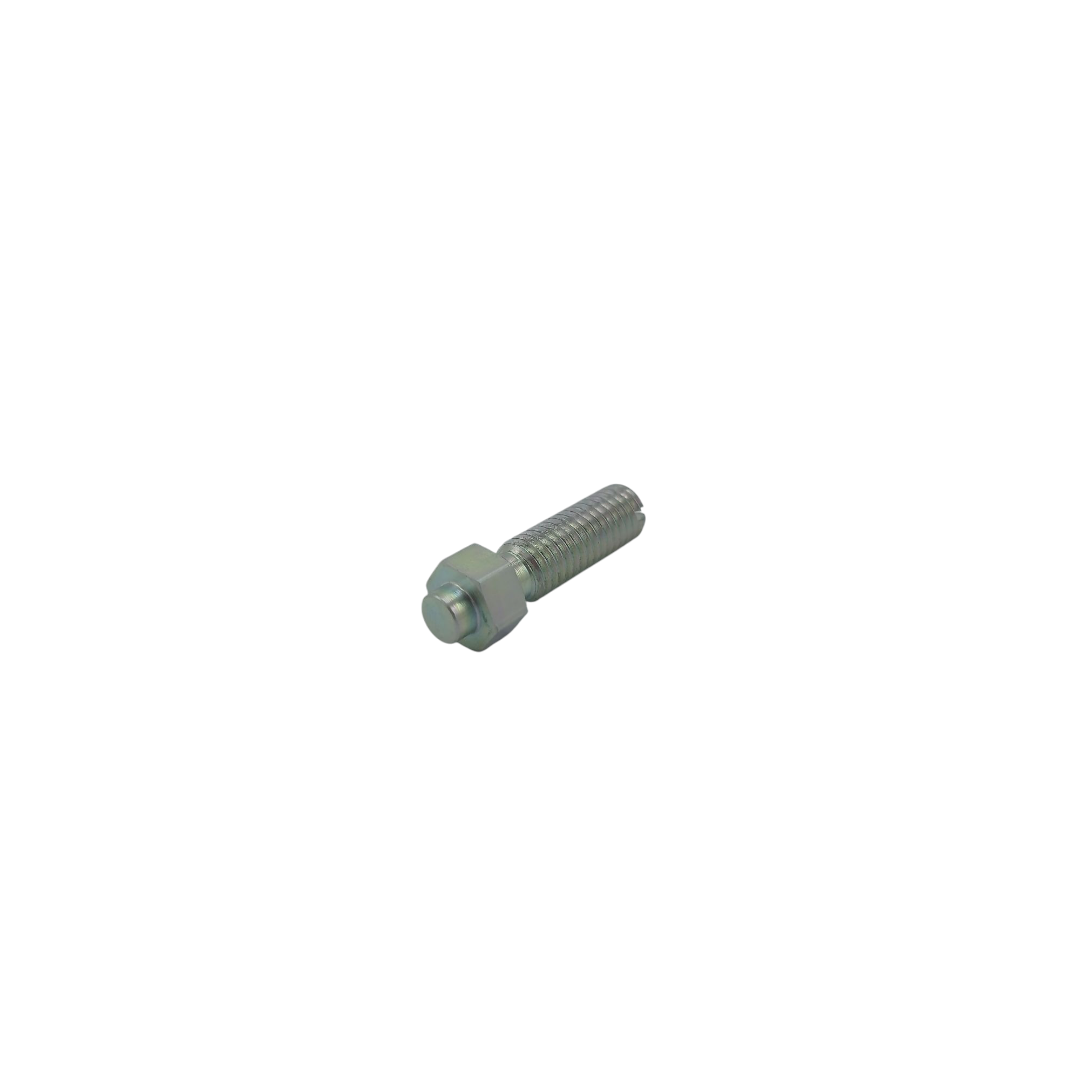

CLAMP SCREW
4CB03154
M8 X 25 MM

DISTANCE PIECE
4CB03169

TOOL HOLDER BAR PART
4CB03172

CLAMP
4CB03184
D 6,25 mm

CLAMP
4CB03185
M6

BRUSH (ROTARY LUBRICATION)
4CB03189
D 76 / 12 X 7 MM

BRUSH
4CB03193
L = 530 MM

LIP SEAL (MOVABLE PLATEN)
4CB03204
L 1120 MM

LIP SEAL (MOVABLE PLATEN)
4CB03205
L = 219 MM

LIP SEAL (MOVABLE PLATEN)
4CB03219
L 88 MM

BELLOWS
4CB03233
D 50 / 76 X 200 MM

BELLOWS
4CB03235
D 80 / 85 X 205 MM

PIN HOLDER 3 HOLE
4CB03253
L = 45 MM

PIN HOLDER 5 HOLE
4CB03254
L = 77 MM

SPRING
4CB03255

SCREW
4CB03256

HUB
4CB03258

BRAKE LINING REPAIR KIT
4CB03260

STATIONARY JAW
4CB03262

FASTENING AXLE
4CB03280

LIFTER
4CB03286

GRIPPER, MOVABLE
4CB03287
S/N 1-32 & 34 --> Difference with 4CB03070: contact us

GRIPPER, MOVABLE
4CB03289
SN 042 / ...

MOUNTING BLOCK
4CB03292

CROSS PIN
4CB03294

END FITTING O.S.
4CB03296

END FITTING O.O.S.
4CB03297

LEVER
4CB03305

SHAFT SUPPORT BEARING
4CB03307

SHAFT SUPPORT BUSHING
4CB03308

SHAFT
4CB03310

LIFTER
4CB03311
S/N 001-032 and 034

ROLLER (ALUMINIUM)
4CB03313

PRESSURE ROLLER
4CB03315

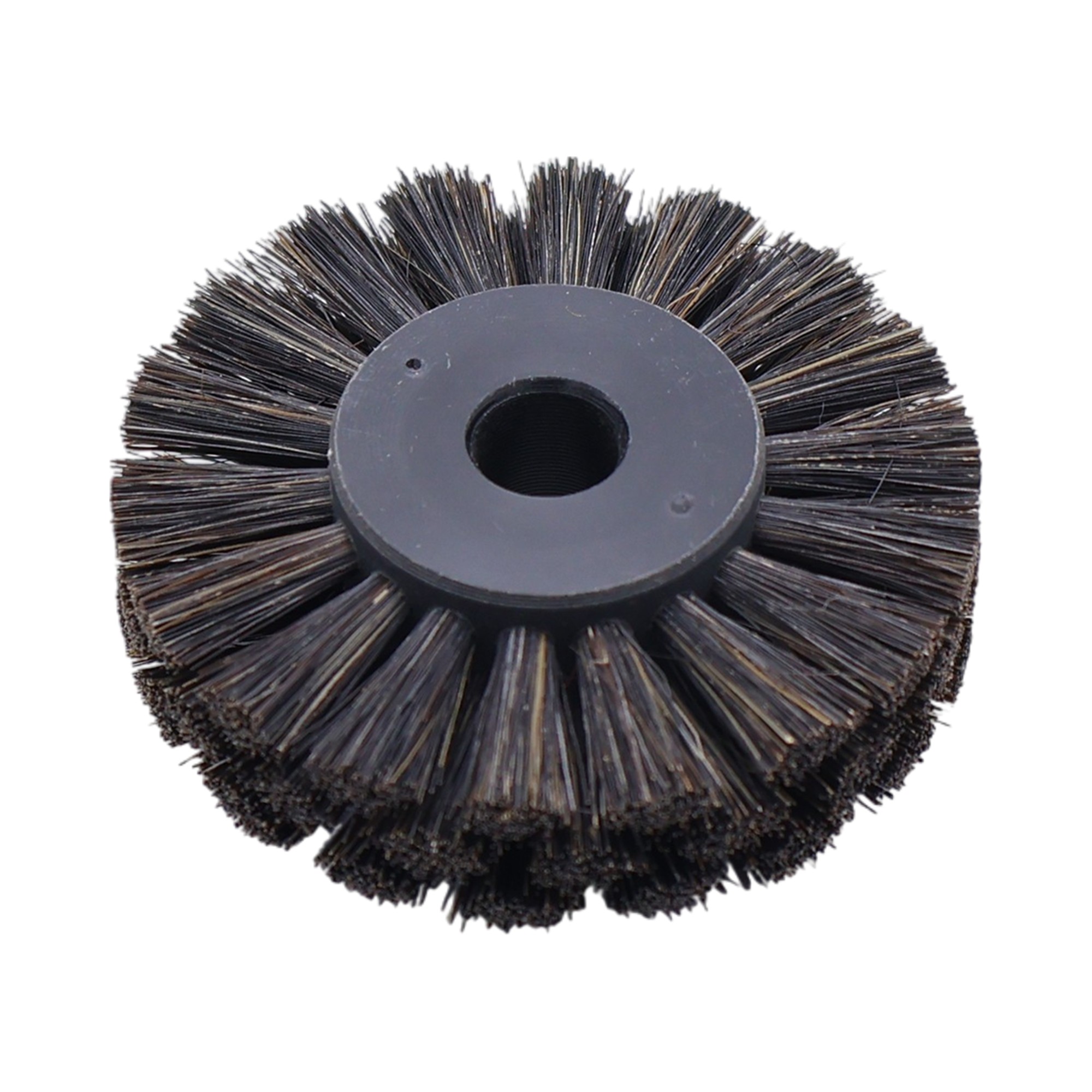

BRUSH (ROTARY)
4CB03316
D 60 / 10 X 20 MM (0,15 MM)

BRUSH (ROTARY)
4CB03317
D 60 / 10 X 20 MM (0,30 MM)

BRUSH (ROTARY)
4CB03318
D 80 / 30 X 20 MM (soft)

BRUSH (ROTARY)
4CB03319
OD 80 / ID32 X 20 / 28 MM (MEDIUM)

BRUSH (ROTARY)
4CB03320
D 80 / 32 X 20 MM (Hard)

BELT (FLAT) OPEN
4CB03322
60 / 1.2 X 2910 MM

BELT (FLAT) OPEN
4CB03325
70 / 1,2 X 2450 MM

FRONT LAY
4CB03330

ANGULAR GEAR
4CB03337
Z 20 / D 8 MM

KNURLED NUT
4CB03358
D 20 X 12 M10

ROTARY CONNECTION
4CB03377
D 28,5 MM G14

CURTAIN (STRIPPING)
4CB03413
1020 X 630 X 0.9 MM

TOMMY BAR
4CB03593
D 6 X 130 MM

CURTAIN (DELIVERY)
4CB03688
940 X 525 X 0.9 MM

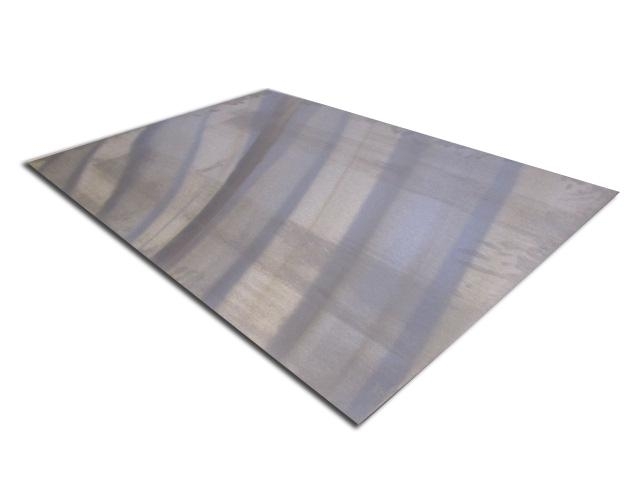

BOTTOM PLATE
4CB03793
1088 X 760 X 1 MM

THIN CUTTING PLATES (20 HRC)
4CB03823
Minimum order quantity = 20 pcs. 1040 X 720 X 1 MM

THIN CUTTING PLATES (35 HRC)
4CB03889
Minimum order quantity: 10 pcs. 1040 X 720 X 1 MM

THIN PLATE TOP HARD
4CB03900
48 HRC

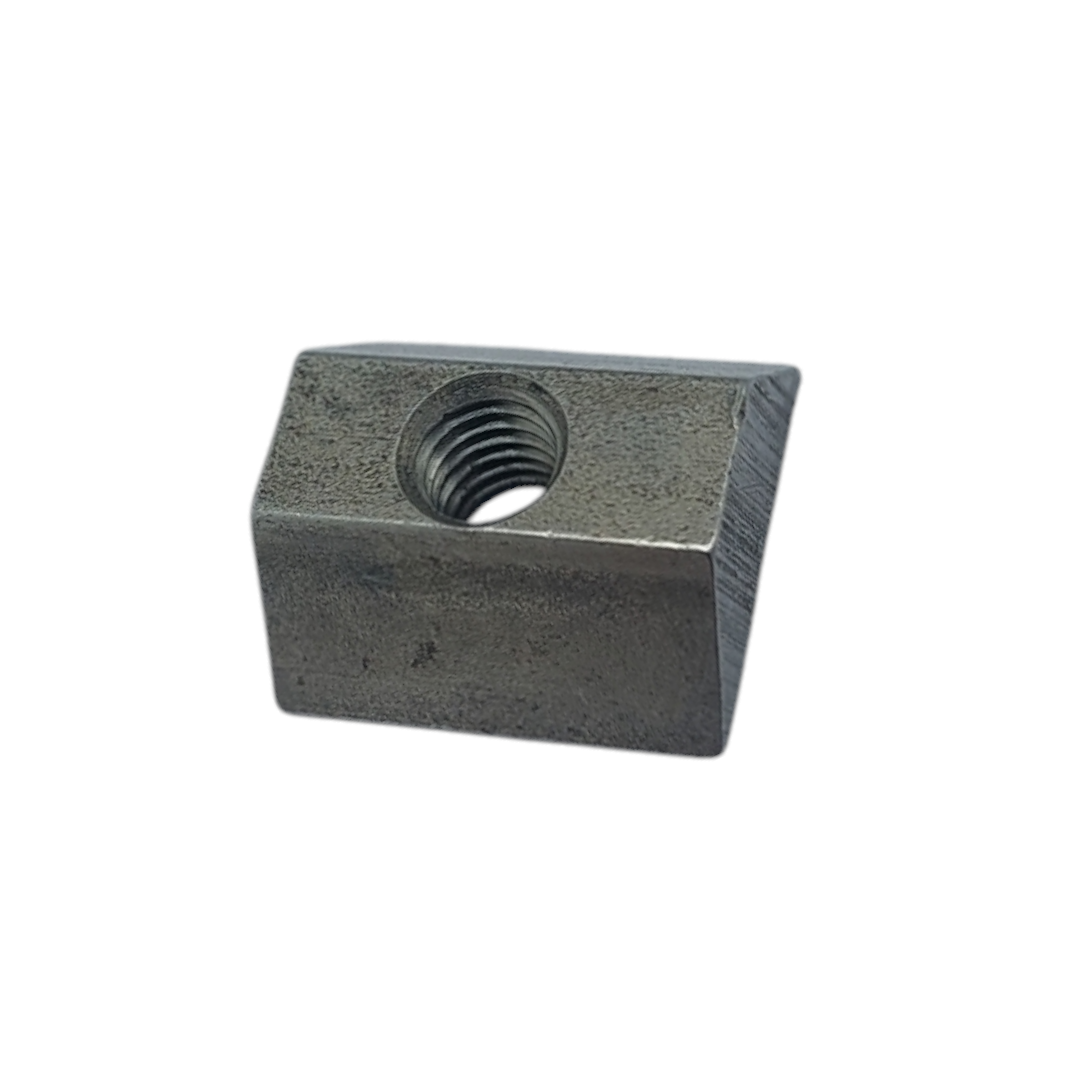

NUT (DOVETAIL)
4CB04214
M10 X 20 MM

BUSHING (GLISSA)
4CB04219
12 / 8.25 X 18 MM

BUSHING (GLISSA)
4CB04220
D 14 / 10 X 10 MM

WASHER
4CB04258

WASHER
4CB04267
D 6.40 / 18 X 1.60 MM

HANDLE M8 X 30 MM
4CB04318

HANDLE (JACCARD) M8
4CB04330

DOUBLE NIPPLE
4CB04362
G1/4 - G3/8

SILENCER
4CB04381
G 1/4" 20 / 12 / 6 MM

BRUSHES (MOTOR)
4CB04510
For ABB 200 21206

POTENTIOMETER 20W / 270R
4CB04514

POTMETER W SWITCH 20W / 1K0R
4CB04515

BULB
4CB04723
6V / 4W

STOP SCREW
4CB04773

DIRECTIONAL VALVE (LUCIFER)
4CB04787

SPRING (COMPRESSION)
4CB04822
DM 7.7 / 1 X 27 MM

SPRING (PULL OFF)
4CB04864
D 12 / 2.5 x 121.3 MM

SPRING (PULL OFF)
4CB04872
D 20 / 3 x 116.2 mm

SPRING (PULL OFF)
4CB04884

PHOTOCELL (WEKO)
4CB04993
Important remark: MVP part is without LEMO connector! Lead wire is 2 meters

UPPER STRIPPING QL FRAME
4CB05141

SUPPORTING PLATE (DIECUTTING)
4CB05252

SIDE LAY (BLADE)
4CB05283
For LH side

POWER FLOW (CLUTCH)
4CB05494

UNIVERSAL JOINT (FEEDER)
4CB05505

END-ROD FEMALE
4CB05517
M16 / D 16MM

ROLLER
4CB05535
30 / 45 X 20 MM NKI 30/20

ROLLER
4CB05613

ROLLER
4CB05618
15 / 28 X 14 MM

ROLLER
4CB05619
17 / 30 X 14 MM

ROLLER
4CB05620
20 / 37 X 18 MM NA 4904.2RS

ROLLER
4CB05622
30 / 47 x 18 mm NA 4906.2RS

CAM ROLLER
4CB05637

GAS STRUT 300N
4CB05651

GAS STRUT 200N
4CB05652

DIRECTIONAL VALVE (LUCIFER)
4CB05750

DIRECTIONAL VALVE (LUCIFER)
4CB05751

PROXIMITY SENSOR
4CB05760

POWER SUPPLY
4CB05761
112 W / +5VDC / +-15VDC

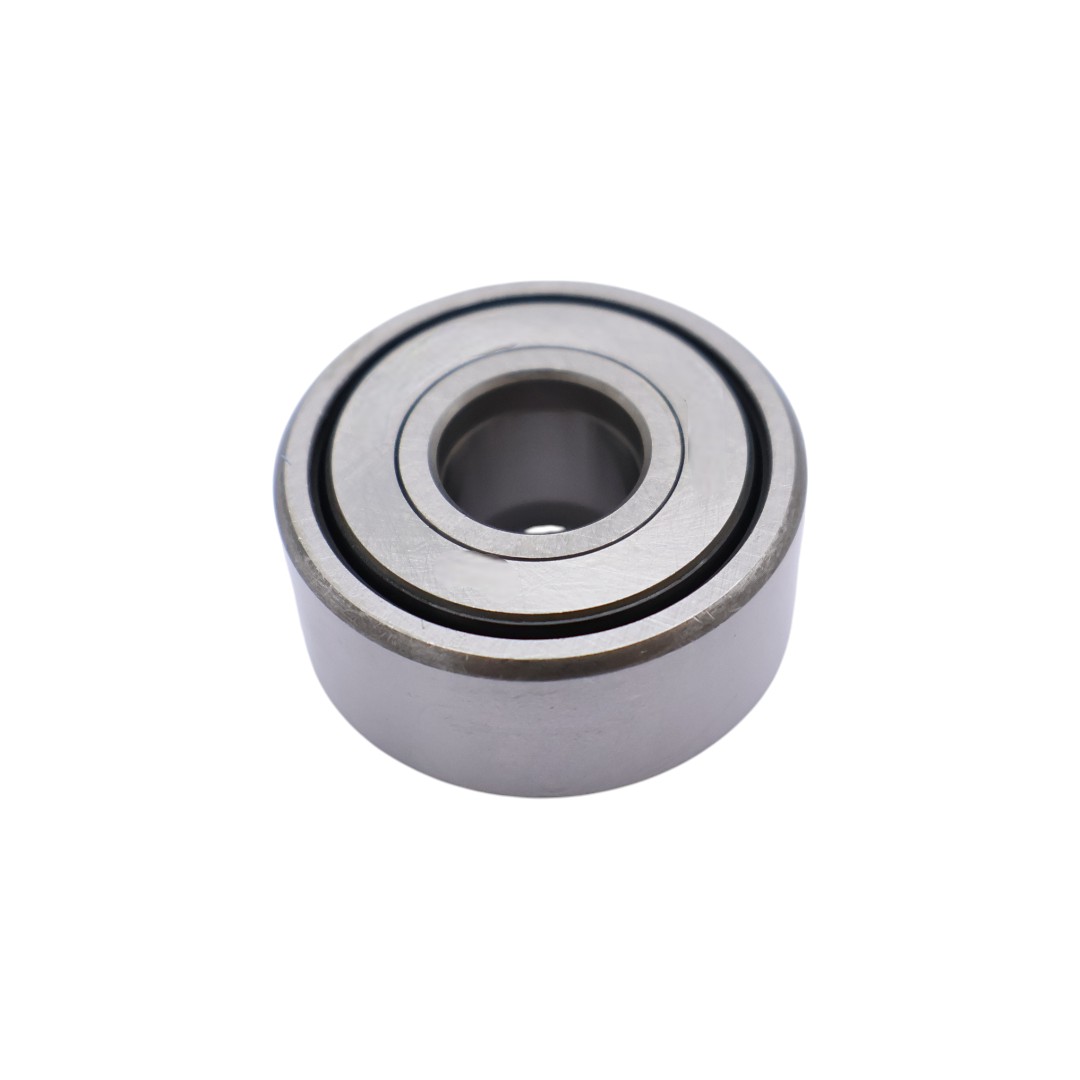

CAM ROLLER
4CB05779
NATR 12 PP

CAM ROLLER
4CB05783

SINGLE ROW BALL BEARING
4CB05851

SINGLE ROW BALL BEARING
4CB05860

SINGLE ROW BALL BEARING
4CB05878

SINGLE ROW BALL BEARING
4CB05928

SINGLE ROW BALL BEARING
4CB05950
55 / 100 X 21 MM

SINGLE ROW BALL BEARING
4CB05957
60 / 110 X 22 MM

SINGLE ROW BALL BEARING
4CB06031
60 / 130 X 31 MM

SELF ALIGNING ROLLER BEARING
4CB06188

SINGLE ROW BALL BEARING
4CB06331

PALLET
4CB06616
1061 X 760 X 173 MM

AXLE (POWER FLO)
4CB06683

TOGGLE HOOK NR. 4 (11MM)
4CB06731

GRIPPER HOLDER
4CB07186

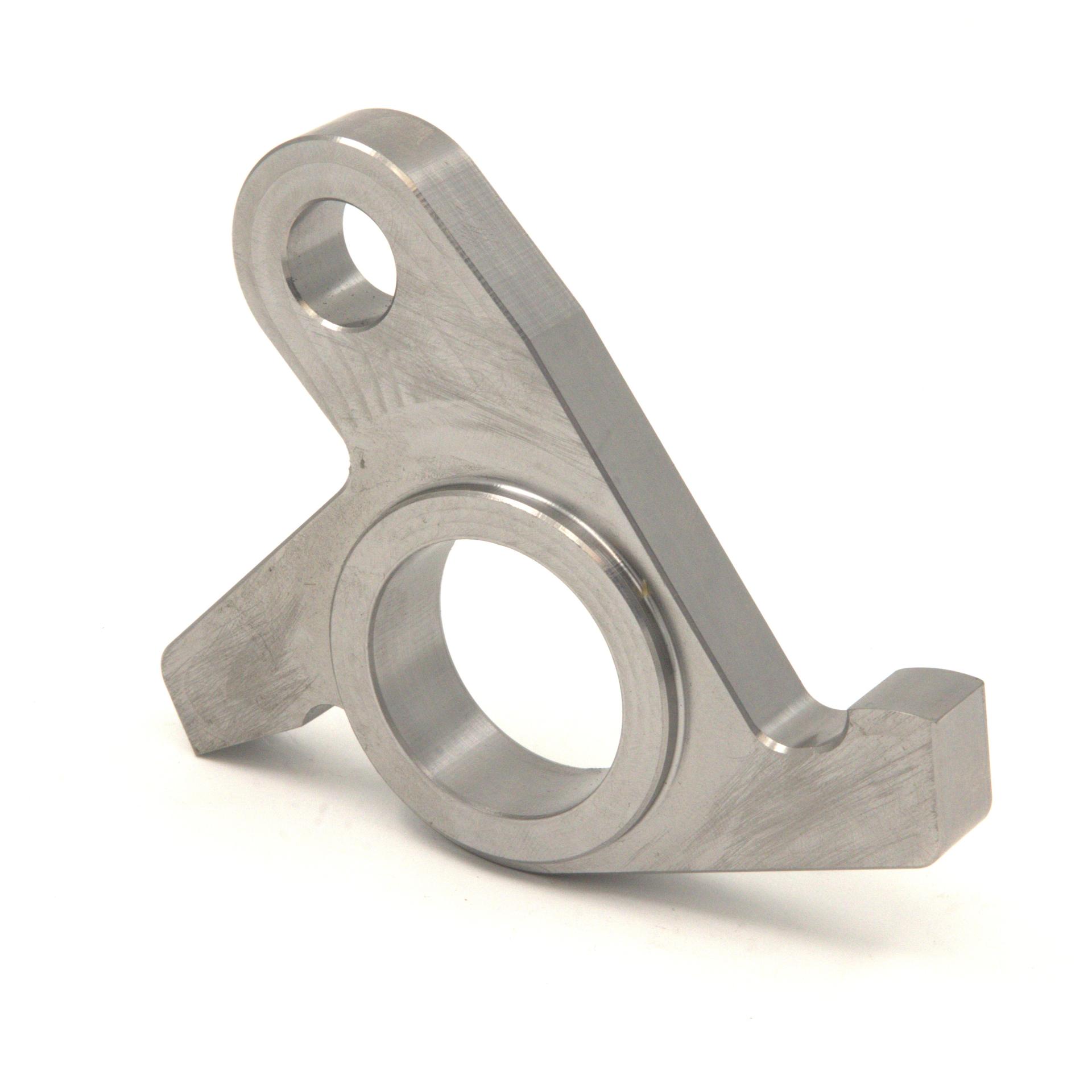

LEVER
4CB07187

LEVER
4CB07189

LEVER
4CB07202

BUFFER
4CB07324

FLAT BELT
4CB07362
3 / 15 X 665 MM

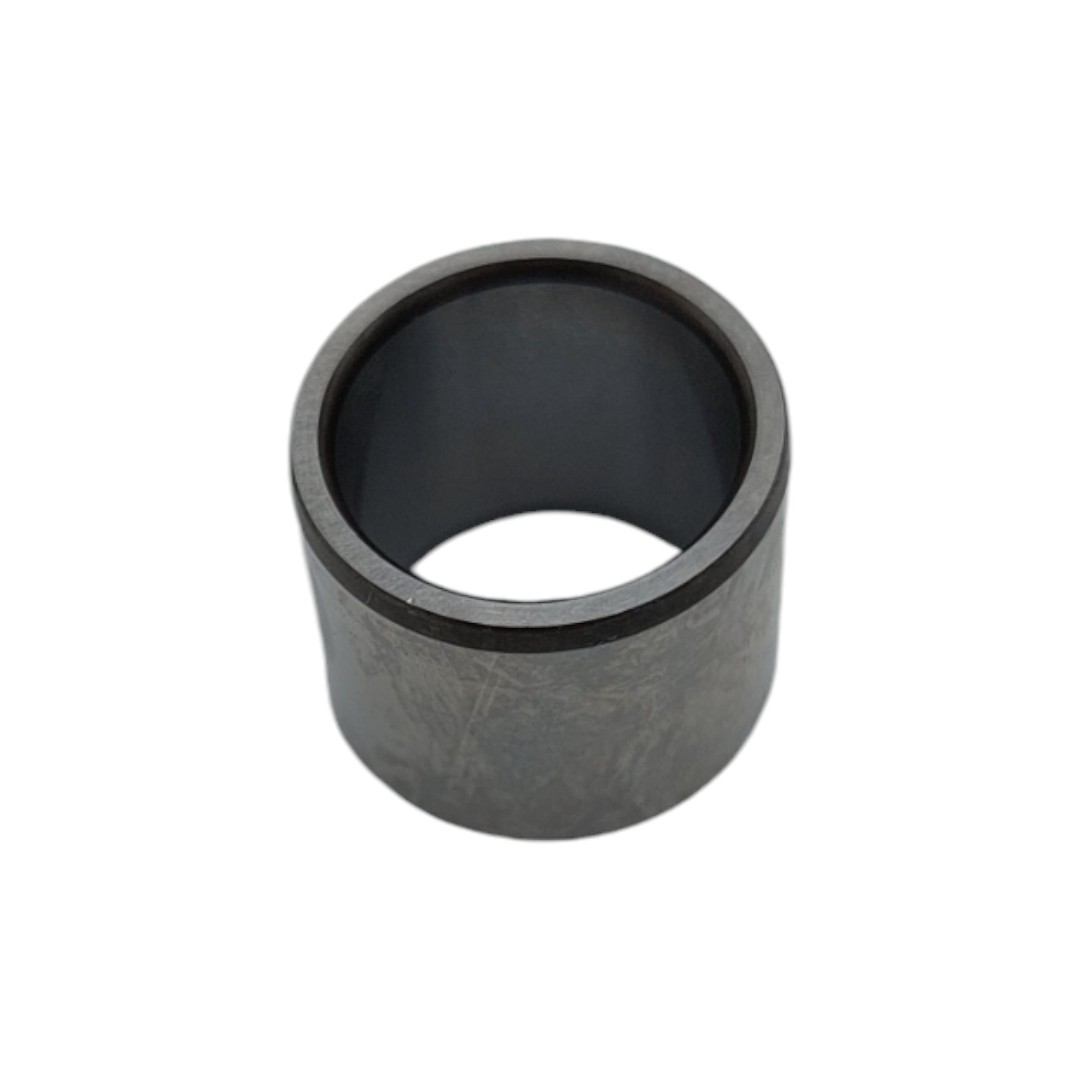

RING
4CB07408

PIN HOLDER 7 HOLE
4CB07503

MICROMETRIC ADJUSTMENT OOS
4CB07516

MICROMETRIC ADJUSTMENT OS
4CB07517

PILE TRAY MOTOR RETROFIT
4CB07566

CAM
4CB07567

SMALL PLATE
4CB07568

SMALL PLATE
4CB07569

GUIDE
4CB07570
TL 114 MM

SIDE LAY (BLADE)
4CB07572
For RH side

LEVER
4CB07575

STOP
4CB07576

LEVER
4CB07578

ROLLER
4CB07579

PRESSURE BALL
4CB07591

WHEEL
4CB07596
S/N 0025 / ...

DRIVE SIDELAY
4CB07599

CAM
4CB07603

SPROCKET WHEEL
4CB07609

SPROCKET WHEEL
4CB07614

TOOTHED SEGMENT
4CB07629
SN 0094 / +

NUT
4CB07703

AXLE
4CB07704

SPRING
4CB07705

SUPPORT
4CB07706

CLAMP
4CB07707

CORNER PIECE
4CB07709

FLAT SPRING
4CB07710

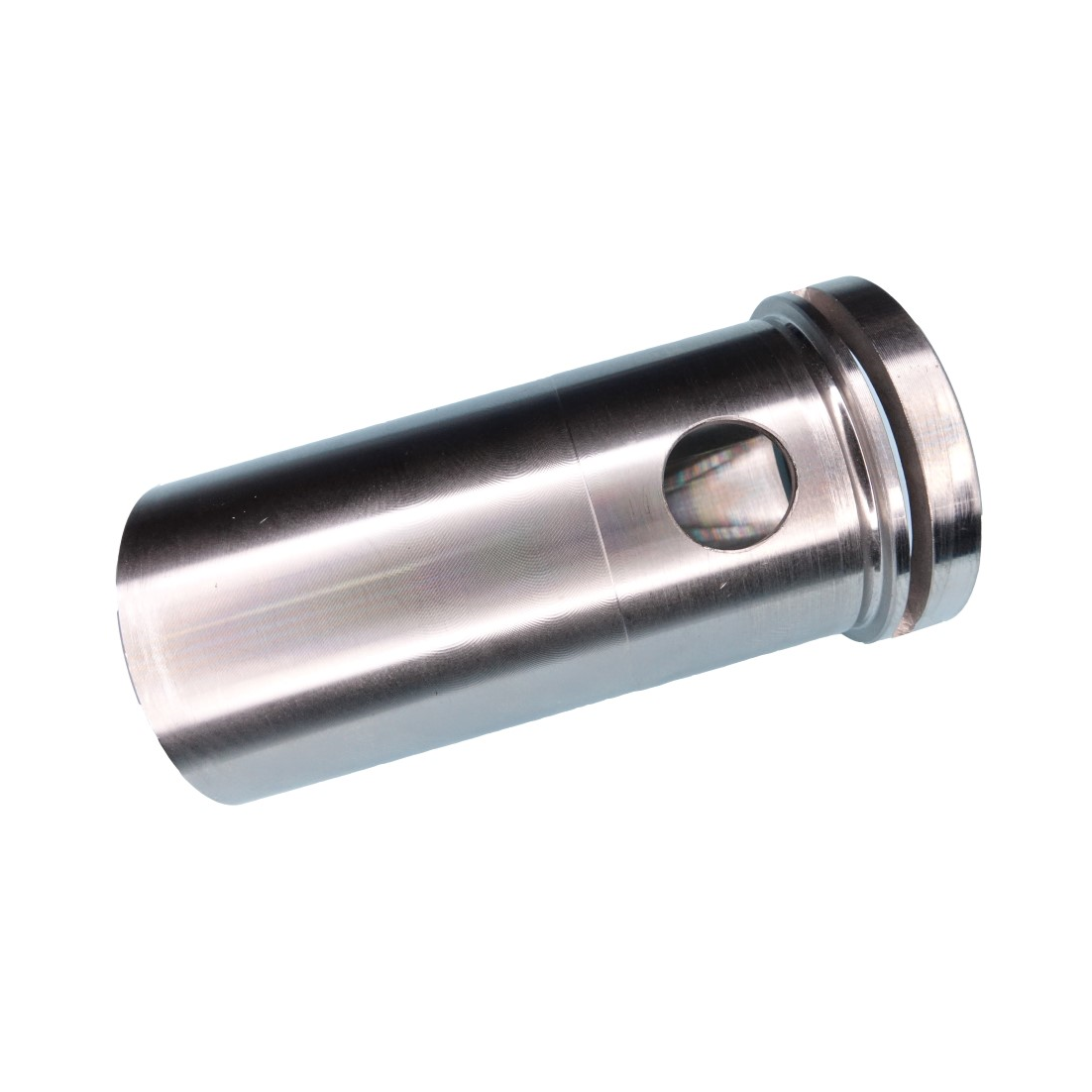

AIR CYLINDER
4CB07711

LID TO AIR CYLINDER
4CB07712

SMALL PLATE (GRIPPER BAR)
4CB07713

AIR CYLINDER
4CB07714

STOP
4CB07715

AXLE
4CB07728

STEEL BUSHING
4CB07740
12 / 8,1 X 16 MM

COMPRESSION SPRING
4CB07744
D=0. 9 DM= 22 L= 68 MM

BUSHING
4CB07746

CAM ROLLER
4CB07749

CAM ROLLER
4CB07767

BRUSH HOLDER
4CB07787

CHAIN GUIDE
4CB07826

SHAFT
4CB07842

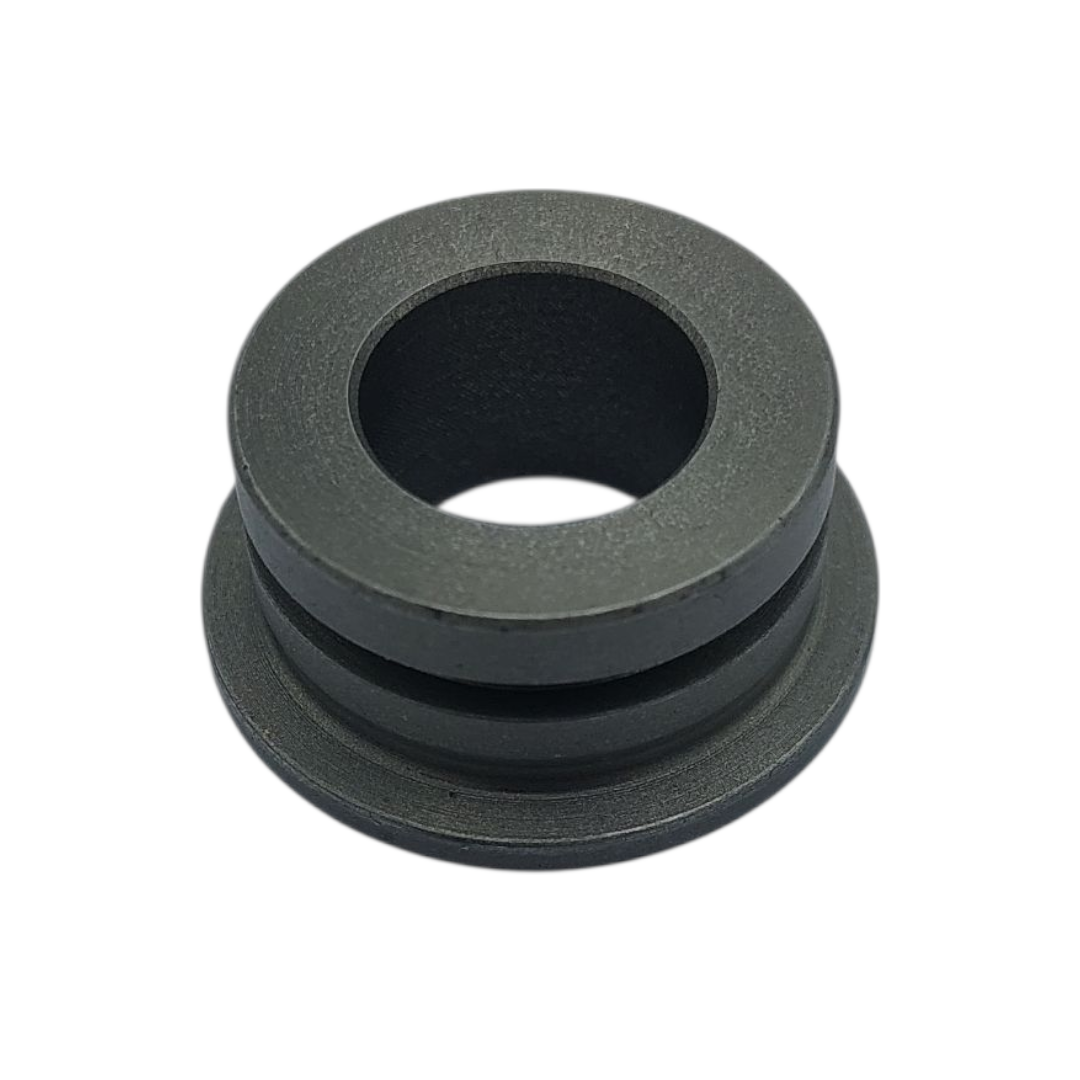

COVER
4CB07851

SPRING
4CB07852

GRIPPER BAR SHELL
4CB07909

DIECUTTING CHASE
4CB07919
Fixed bottom plate

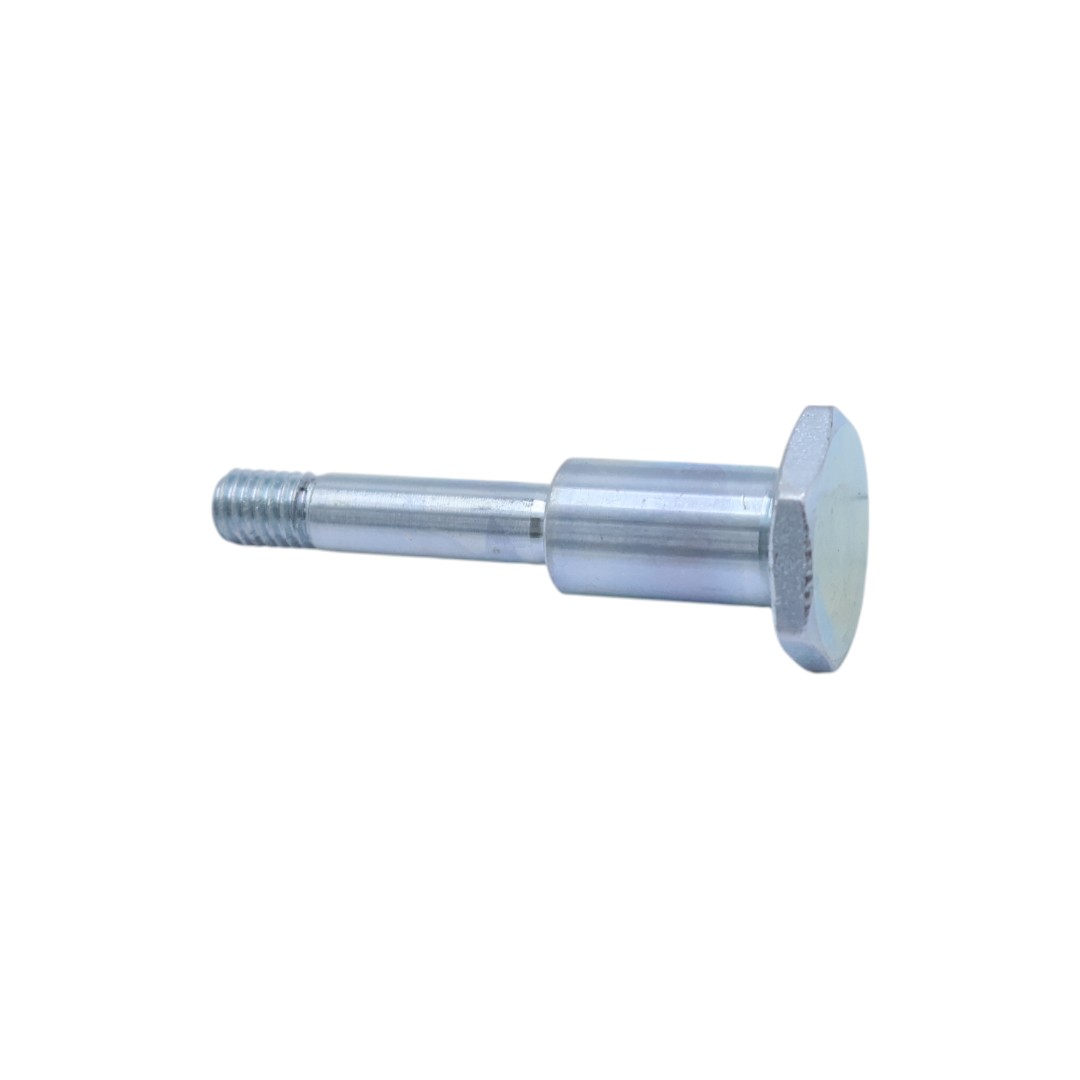

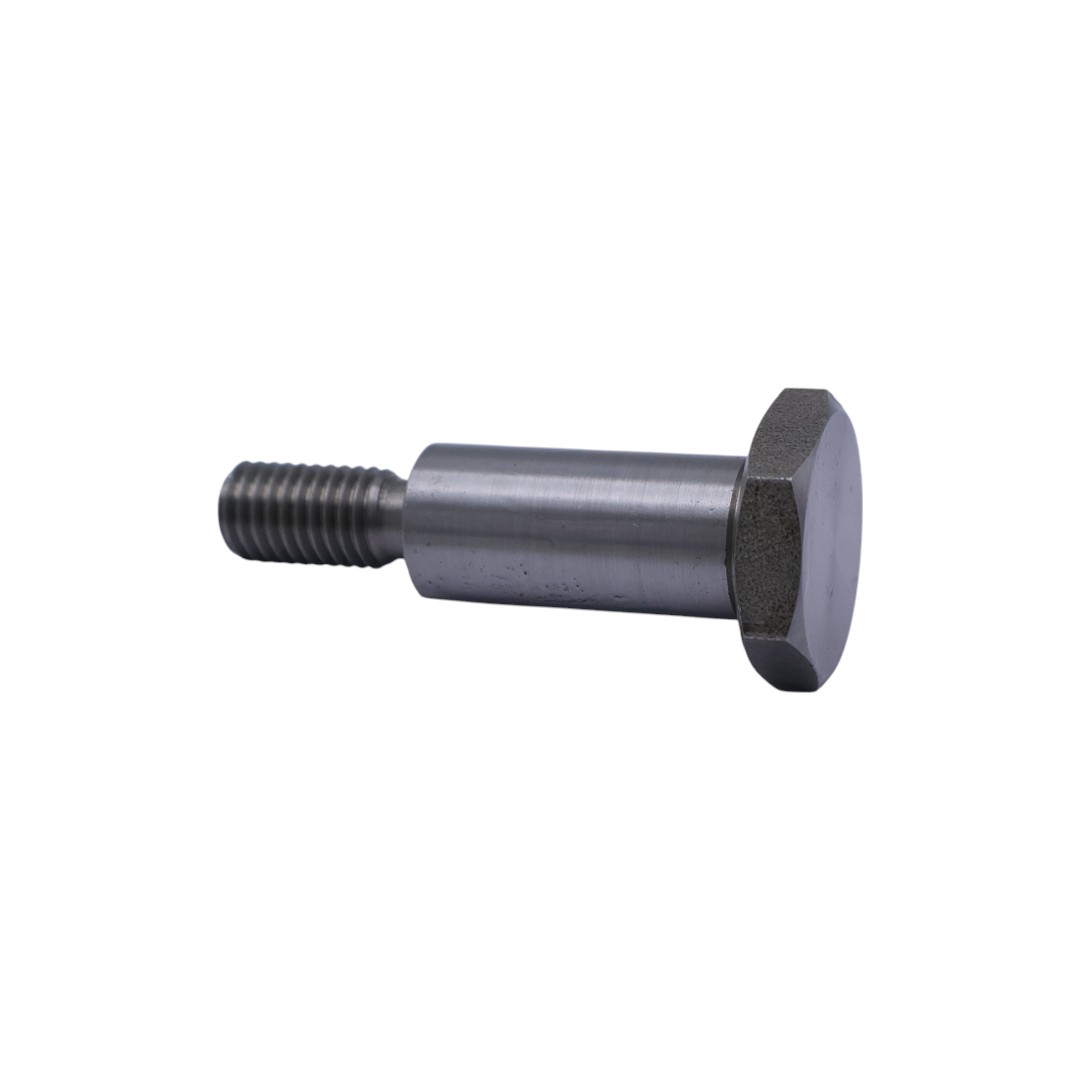

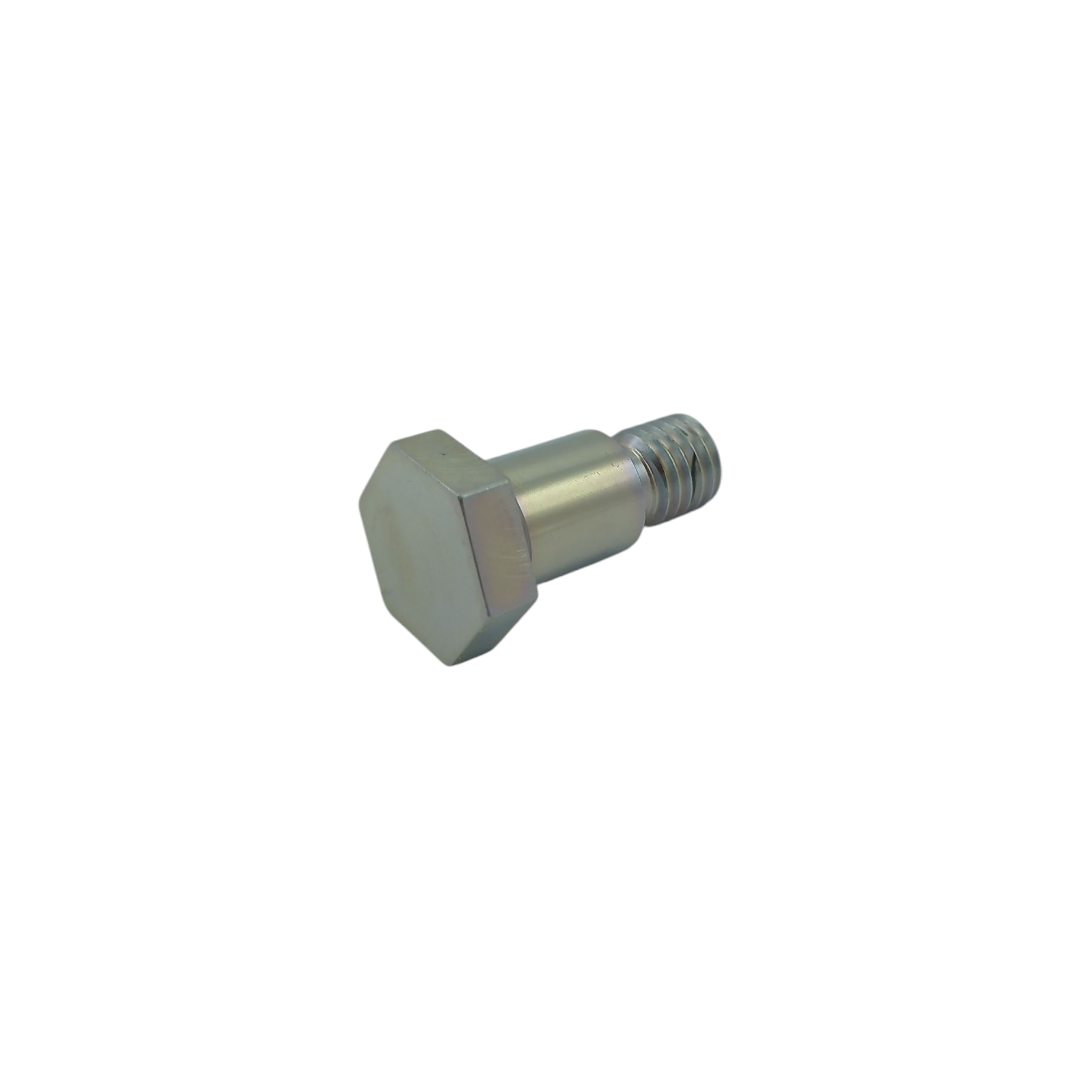

STER SCREW
4CB07920

RUBBER SEAL
4CB08008
d = 67 mm, b1 = 11,3 mm, b = 15,5 mm, c = 6 mm

BUSHING
4CB08033

CHASE CHANGER
4CB08039

CHASE CHANGER ELEVATION
4CB08043

ARM
4CB08427

UPPER DIECUTTING QL FRAME
4CB21295

AXLE
4CB26435

SLEEVE
4CB26535

COVER
4CB26536

STUD
4CB26569

ROD
4CB26685

RING
4CB26692

ROLLER
4CB26715

BUSHING
4CB28016

AXLE
4CB28758

SCREW
4CB28912

WASHER
4CB29094
D75 / d 40,5 / H 6 MM

AXLE
4CB29095

ROLLER
4CB29120

DISTANCE PIECE
4CB29121

PRESSURE ROLLER
4CB29179

AXLE
4CB29363

AXLE
4CB29364

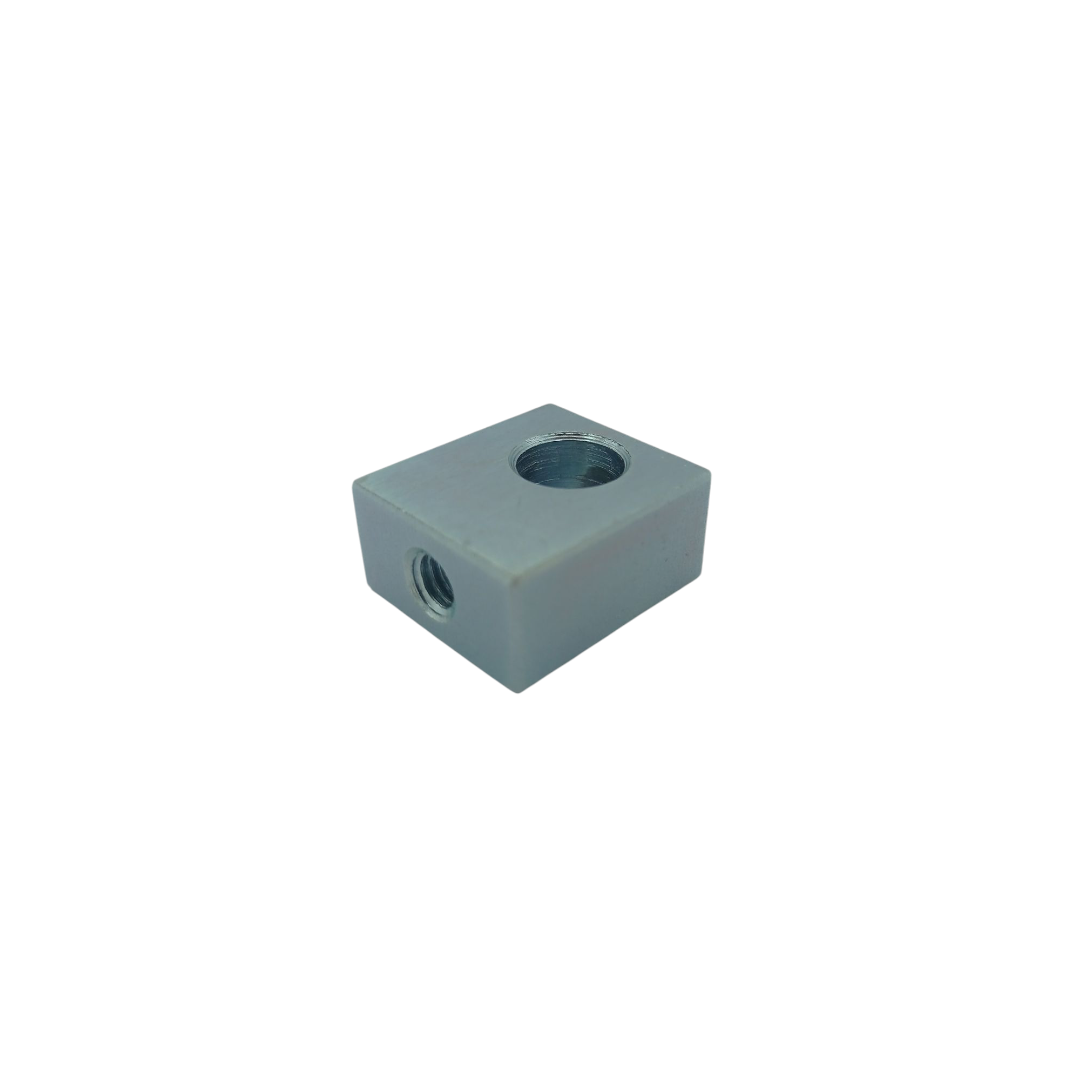

BLOCK
4CB29366

ROLLER
4CB29378

STRAP
4CB29434

ROLLER
4CB29449

REELSTAND
4CB29531

DISTANCE PIECE
4CB29737

NUT
4CB30118

AXLE
4CB30122

SIDE GUIDE
4CB30667

SUPPORT
4CB31095

SHAFT
4CB31096

SUPPORT
4CB31103

SMALL PLATE
4CB32443

WASHER
4CB32446

FOAMTAPE 80X10MM - 20MTR
4CB344902
EPDM, black, 15 SHA

ELECTRIC MOTOR
4CB345077
No sales in sanctionned countries

ELECTROVALVE ASSY
4CB345355

UPPER STRIPPING PIN D 1,5 MM
4CB346192
Set of 100 pcs

SUPPORT
4CB34818

PULLEY
4CB35116

ROLLER
4CB35117

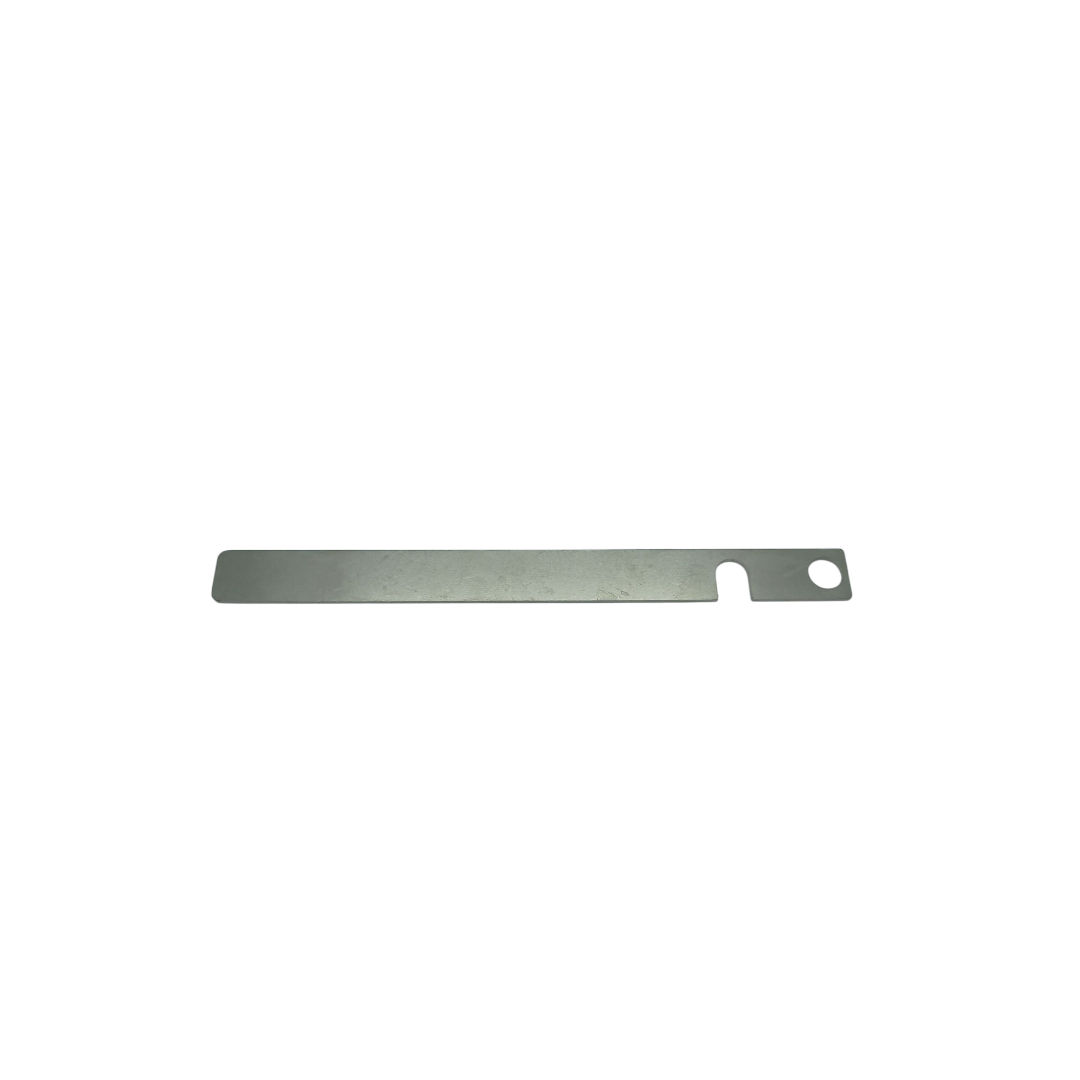

FLAT SPRING
4CB35121

BLOCK
4CB35124

BLOCK
4CB35796

LOWER COUNTERPLATE
4CB35877
Without steel plate SN 0056 / ...

LOWER COUNTERPLATE
4CB35899

CENTERING PIECE O.S.
4CB35904

LEVER
4CB35933

ROLLER
4CB35984

PINION
4CB35999

AXLE
4CB36010

TWO-PIECE RING
4CB36064

BUSHING
4CB36068

FLEXIBLE HOSE
4CB36069

CLAMP
4CB36091

LEVER
4CB36173

SCREW
4CB36324

SMALL PLATE
4CB36330

STOP
4CB36341

PLUMMER-BLOCK
4CB36344

PLUMMER-BLOCK
4CB36345

PLUMMER-BLOCK
4CB36346

THREADED ROD
4CB36347
M8 X 910 MM

BOLT
4CB36369

SMALL PLATE
4CB36386

STER SCREW
4CB36474

SCREW
4CB36610

DRUM
4CB36612

CHAIN
4CB36663

WHEEL
4CB36696
S/N 0001 / 0023

PULL ROD
4CB36746

SUPPORT
4CB36747

BLOCK
4CB36750

TABLET
4CB36785

PLATE
4CB36821

PLUMMER-BLOCK
4CB36842

SUPPORT
4CB36877

AXLE
4CB36880

CHAINS GUIDE
4CB36960

CAM
4CB37002

BUCKET
4CB37177

AXLE
4CB37223

STOP
4CB37253

PRESSING DEVICE
4CB37384

SUCTION CUP
4CB37393
Lifting cup

FOOT
4CB37420

LEVER
4CB37423

LEVER
4CB37449

SIDE GUIDE BASE OOS
4CB37468

LEVER
4CB37476

LEVER
4CB37609

BLOCK
4CB37637

STUD
4CB37638

LEVER
4CB37641

SUPPORT
4CB37642

SUPPORT
4CB37643

ROTOR OF AIR DISTRIBUTOR
4CB37646

ROLLER
4CB37707

BUSHING
4CB37713

CONNECTING PLATE
4CB37718

BLOCK
4CB37778

SUPPORT
4CB37862

PISTON
4CB37887

ROD
4CB37888

PISTON
4CB37890

ROD
4CB37891

ROLLER
4CB38061

KNURLED SCREW
4CB48058
M4 X 20 MM

KNURLED NUT
4CB48345

WASHER
4CB48428
D 6,1 / 16 X 2 MM

WASHER
4CB48444

WASHER
4CB48802

DISTANCE PIECE
4CB49744
14 / 9 / 55 MM

DISTANCE PIECE
4CB50105

ROD
4CB51105

AXLE
4CB51483

AXLE
4CB51484

AXLE
4CB51706

STER SCREW
4CB51813

STER SCREW
4CB51835

STER SCEW
4CB51836

STER SCREW
4CB51887
8 G6 X 42,5 / M6 X 8 MM

STER SCREW
4CB51936

STER SCREW
4CB51945

TORSION SPRING
4CB52169

TORSION SPRING
4CB52182

SPRING
4CB52309

COMPRESSION SPRING
4CB52314
D=2.2 DM= 20 L= 122

PULL-OFF SPRING
4CB52506

PULL-OFF SPRING
4CB52522

PULL-OFF SPRING
4CB52548

PULL-OFF SPRING
4CB52561

PULL-OFF SPRING
4CB52566
D=3.2 DM= 21.5 L= 247.4 MM

PULL-OFF SPRING
4CB52587

PULL-OFF SPRING
4CB52590

SPRING ATTACHEMENT
4CB52734

KEY
4CB52818

RATCHET WRENCH
4CB52999

COUPLING (SET)
4CB53149

V-BELTS (SET OF 2)
4CB53443
B 17 / 11 X 1650 MM

FRICTION DISK
4CB53525

SUPPORT
4CB53534

HUB
4CB53539

POWERFLO BRAKE
4CB53572
Repair kit is 4CB03260

CHAIN
4CB53698

CHAIN
4CB53894

GLISSA BUSHING
4CB54045
8 / 12 X 12 MM

BRASS BUSHING
4CB54094
d12 / D16 / H 8.1 mm

GLISSA BUSHING
4CB54096
12 / 16 X 20 MM

GLISSA BUSHING
4CB54194
12 / 16 X 12 MM

ROLLER
4CB54468

ANGULAR CONTACT BALL BEARING
4CB54477

RING
4CB54497

CAM ROLLER
4CB54596

CAM ROLLER
4CB54614

CAM ROLLER
4CB54616

ROLLER
4CB54633

BALL BUSHING
4CB54831

SPROCKET WHEEL
4CB55214

CHAIN TIGHTENER
4CB55223

SPROCKET WHEEL
4CB55266

SPROCKET WHEEL
4CB55300

END PIECE
4CB56586

OIL FILTER
4CB56815

DISTRIBUTER
4CB57381

CONNECTION
4CB57745

DISTANCE PIECE
4CB58002

PREPARATION TABLE
4CB58191

PRESSURE GAUGE 0-2.5 MN
4CB58291

OIL FILTER 300, CARTRIDGE
4CB60818

CENTERING PIECE O.O.S.
4CB62060

PALLET
4CB62133

GREASE GUN
4CB62449

SCREW PUMP
4CB63320

FRONT LAY ASSY OS
4CB63517

FRONT LAY ASSY OOS
4CB63518

FIXING BAR 1049 MM
4CB71515

ROTARY CONNECTION W HARDW
4CB82833

CENTERING PIECE
4CB85058

CENTERING PIECE
4CB85059

FLEXIBLE COUPLING
4CB87413

Looking for other SP diecutter or foiler parts?
Contact us
Back to machine types overview
Back to diecutter parts overview
Back to homepage

MV MACHINERY PARTS NV

De Spijker 6

8540 Deerlijk

BE 1010 572 328

+32 474 55 96 07

Products

All content © 2016 MV PARTS / Webdesign by Fireflies Artstudio.
Brand name and the logo of MV Parts are trademarks of MV Machinery Parts NV. All other names, numbers and descriptions are used for reference only.

SUPPORT

PRIVACY

CONDITIONS

Home

Online Business
